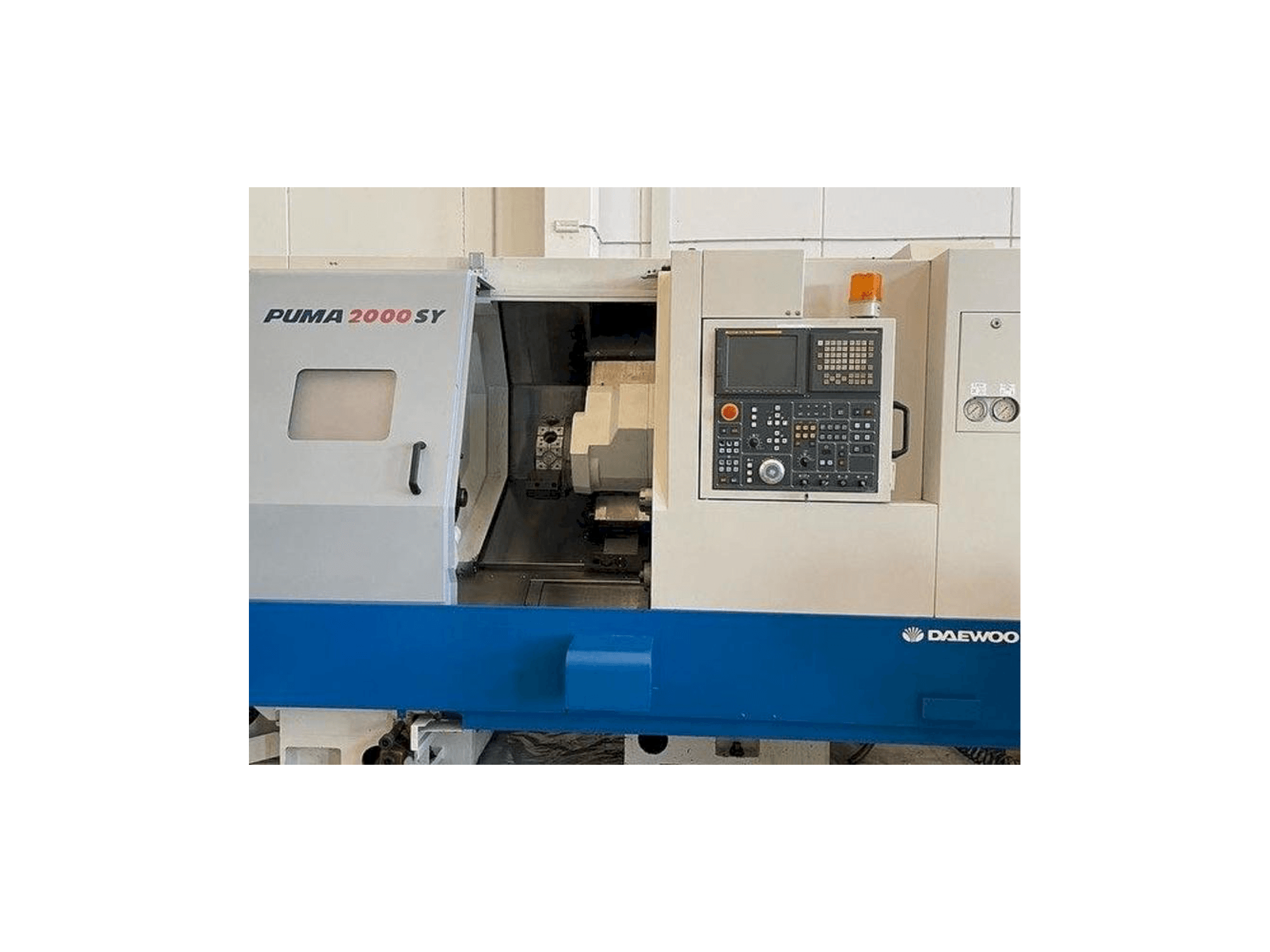

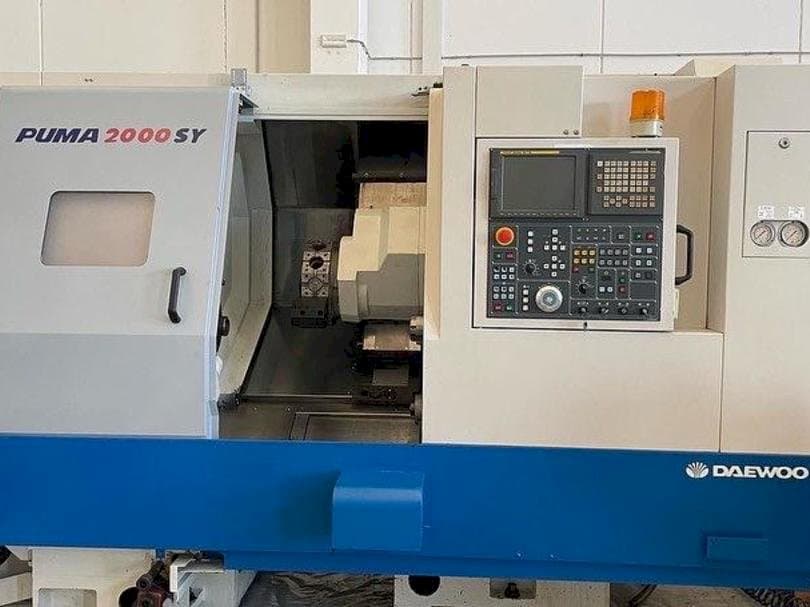

Front view of Doosan Puma 2000SY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN 2000SY

Photo Gallery

DOOSAN - 2000SYIT-TUR-DOO-2005-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DOOSAN PUMA 2000SY Lathe

Show in original language

This DOOSAN 2000SY Lathe was manufactured in the year 2005. It is equipped with a FANUC Series 18i - TB control unit and has 5 axis. The machine has a spindle speed of 4500 rpm, is in very good condition, and is well maintained.

Overview

brand: DOOSAN
year: 2005
MODEL: 2000SY
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN 2000SY

Control Unit

Model: Series 18i - TB
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 18.5 kW
Tool taper: ASA 6”
Number of axis: 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity : max. Diam. Rotating on the bench 600 mm
- - Max. Diam. Turning 334 mm
- - Max. Diam. Rotating on the carriage 550 mm
- - Max. Turning length 510 mm
- - Max. Diam. Turning from 65 mm bar
- - Y axis 100 +/- 51 ( 102 )
- - Counter spindle: max. Rotation speed 6000 rpm.
- - Spindle attachment asa 5” counter spindle motor power 7. 5 kw
- - Turret : 12 pos turret stations. All motorized bmt 55
- - Dimensions of turning/boring tools; 25x25 / Ø40
Qualitative Machine Benefits:
- - Max. Motorized tools rotation speed 5000 rpm
- - Chip conveyor - tool presetting - piece catcher, piece unloading belt - driven tool holders - top xf365 bar loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
