➤ Used DOOSAN Dnm 5705 For sale | gindumac.com

Show in original language

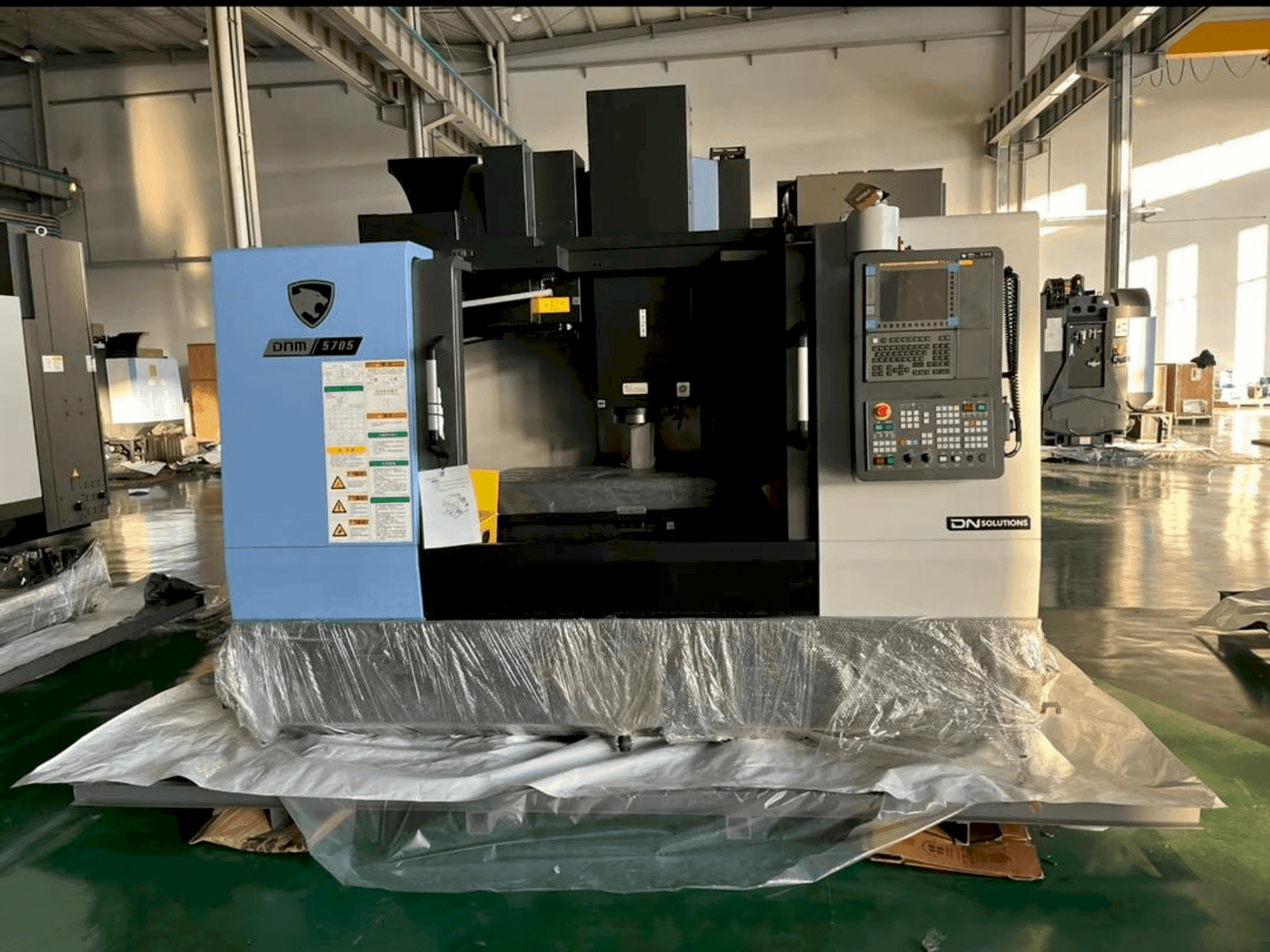

This 3-axis DOOSAN DNM 5705 vertical machining center was manufactured in 2024. It features a robust table size of 1300 x 570 mm with a loading capacity of 1000 kg, and a high spindle speed range of 8,000 to 12,000 rpm. Equipped with a BT40 tool shank type and a rapid traverse rate of 36/36/30 m/min for X/Y/Z axes, it ensures efficient machining. Ideal for precision tasks, buy this DOOSAN DNM 5705 vertical machining center. Contact us for further details regarding this machine.

Overview

brand: DOOSAN
year: 2024
MODEL: DNM 5705
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 5705

Control Unit

Control Brand: FANUC
Control Model: OiPLUS

Dimensions

Machine Depth: 3110 mm
Machine Height: 2985 mm
Machine Weight: 6500 kg

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 570 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Feed motor (X/Y/Z): 1.8/1.8/3 kW
Power supply: 30 kVA
Coolant tank capacity: 380 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
