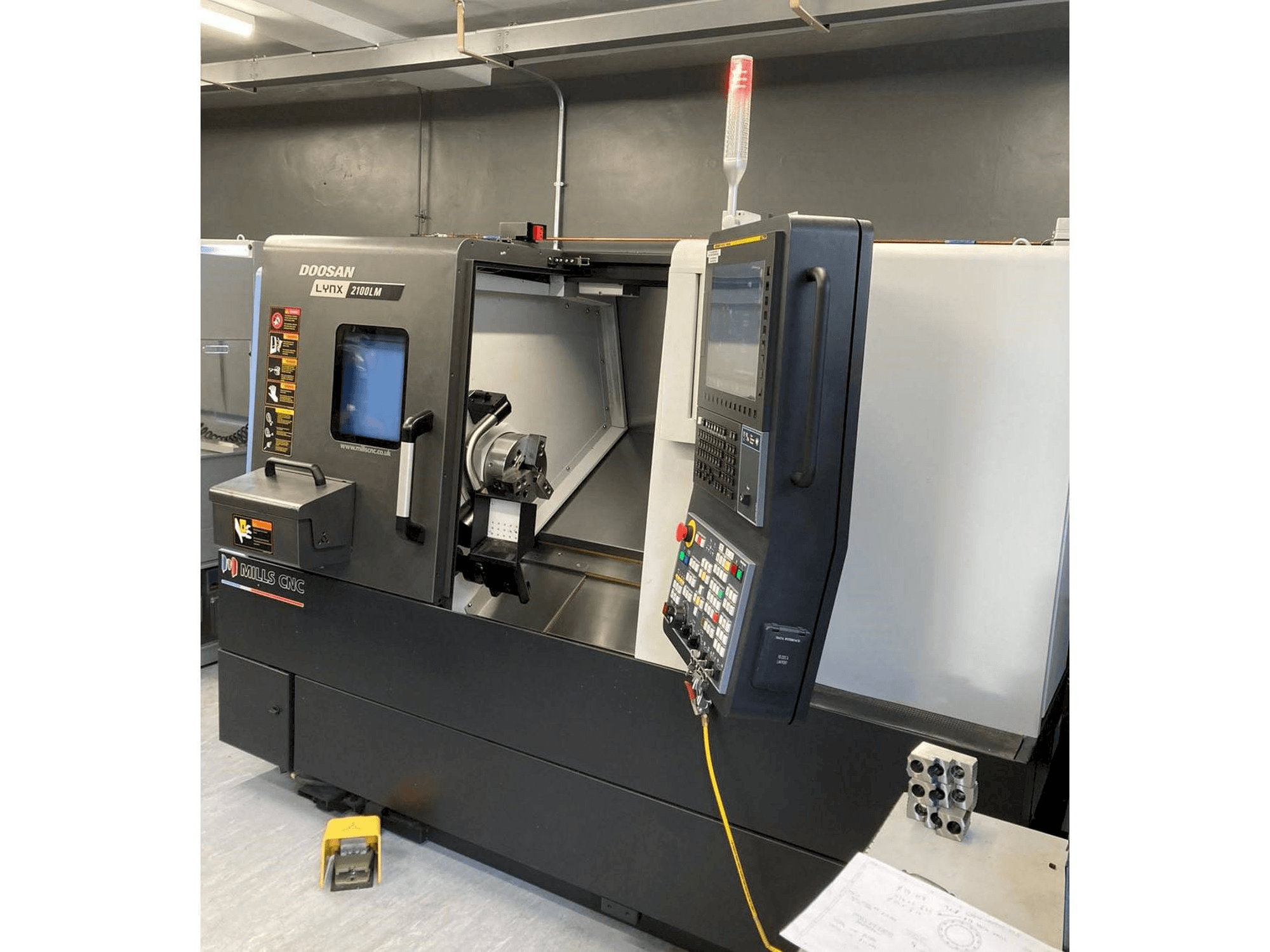

Front view of Doosan Lynx 2100 LMB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 2100 LMB

Photo Gallery

DOOSAN - Lynx 2100 LMBGB-TUR-DOO-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 2100 LMB Lathe

Show in original language

This Doosan Lynx 2100 LMB Lathe was made in 2021 and has only 28 production hours. It is equipped with a DOOSAN Fanuc i Series control unit. The machine has a spindle speed of 4500 rpm.

Overview

brand: DOOSAN
year: 2021
MODEL: Lynx 2100 LMB
production hours: 28
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100 LMB

General Data

Measurements width: 2570 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 3480 kg

Control Unit

Model: i SERIES
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 15 kw

Movement

X-AXIS Movement: 205 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Rapid traverse: 36 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 200 mm
- - Bar capacity: 65mm
- - Max. Turning dia. : 300mm
- - Max. Turning length: 510mm
- - Max. Spindle torque: 169 n-m
- - No. Of tool stations: 12
- - Rotary tool r/min: 6000 r/min
Qualitative Machine Benefits:
- - Machine with: driven tools
- - Air mist
- - Filtration system
- - Oil skimmer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
