- ➤ Used DOOSAN LYNX 2100 LSYB Lathe For sale | gindumac.com

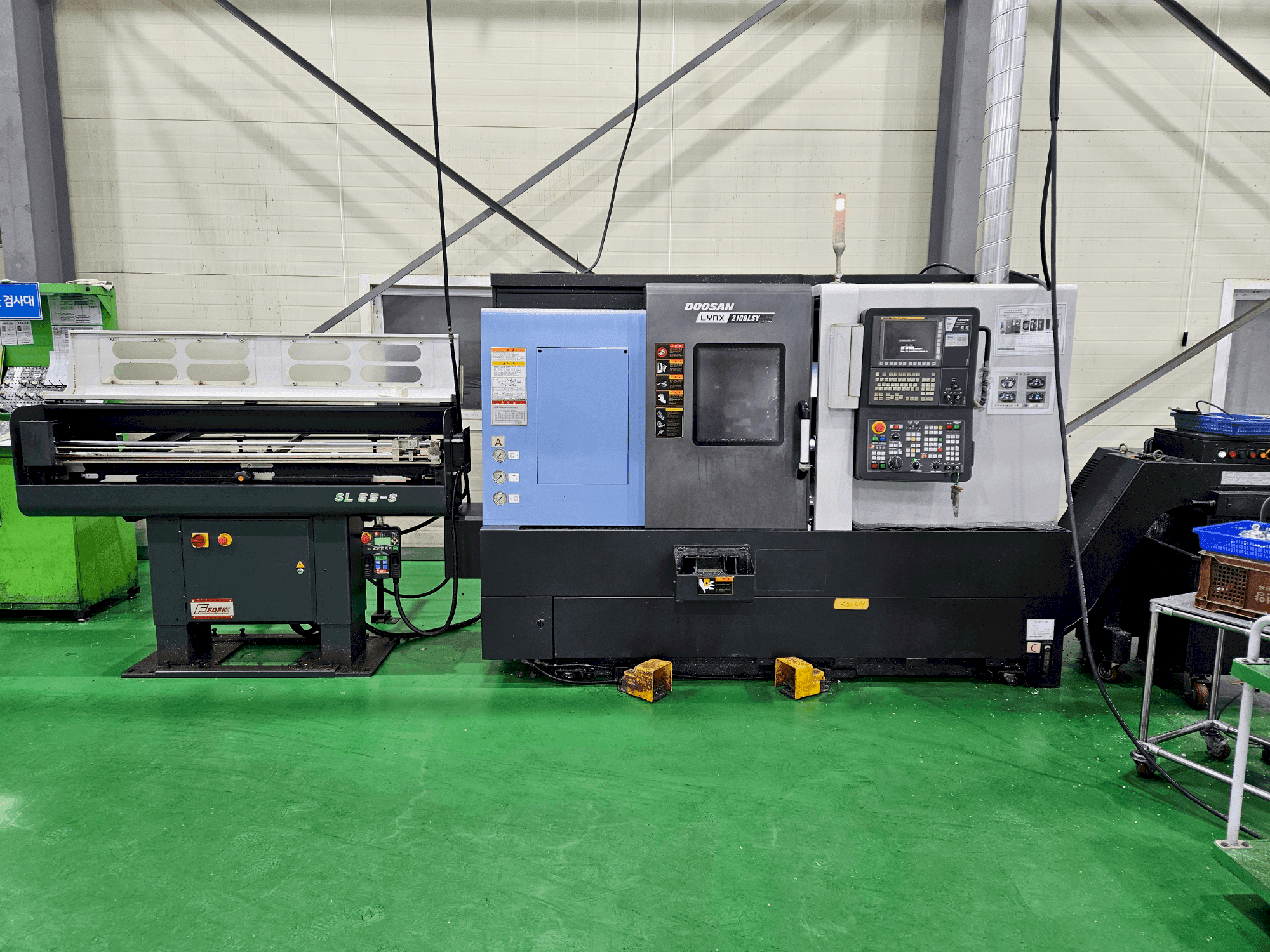

This DOOSAN LYNX 2100 LSYB lathe was manufactured in 2018. It features a Fanuc i control system, an 8" Samchully MH-208 main chuck, and a 5" Samchully HS-05 sub chuck. The main spindle operates at 4500 RPM, while the sub spindle reaches 6000 RPM. Equipped with a 24 station turret and BMT45P, it supports a maximum diameter of 300 mm and lengths up to 510 mm. For more information about this lathe, please reach out to us.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: LYNX 2100 LSYB
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
Technical Information - DOOSAN LYNX 2100 LSYB
Movement
- X-axis Travel: 205 mm
- Y-axis Travel: 105 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Speed: 4500 RPM
Additional Information
Additional equipment
- Turret: 24 ST BMT45P
- Tool setter
- Main chuck: 8" Samchully MH-208
- Sub chuck: 5" Samchully HS-05
- Part catcher
- Part box
- Bucket
- Bar-feeder (Brand: LNS(FEDEK), Model: SL-65S)
- Tower lamp
- English manual books
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
