- Doosan Lynx 220LYC Lathe

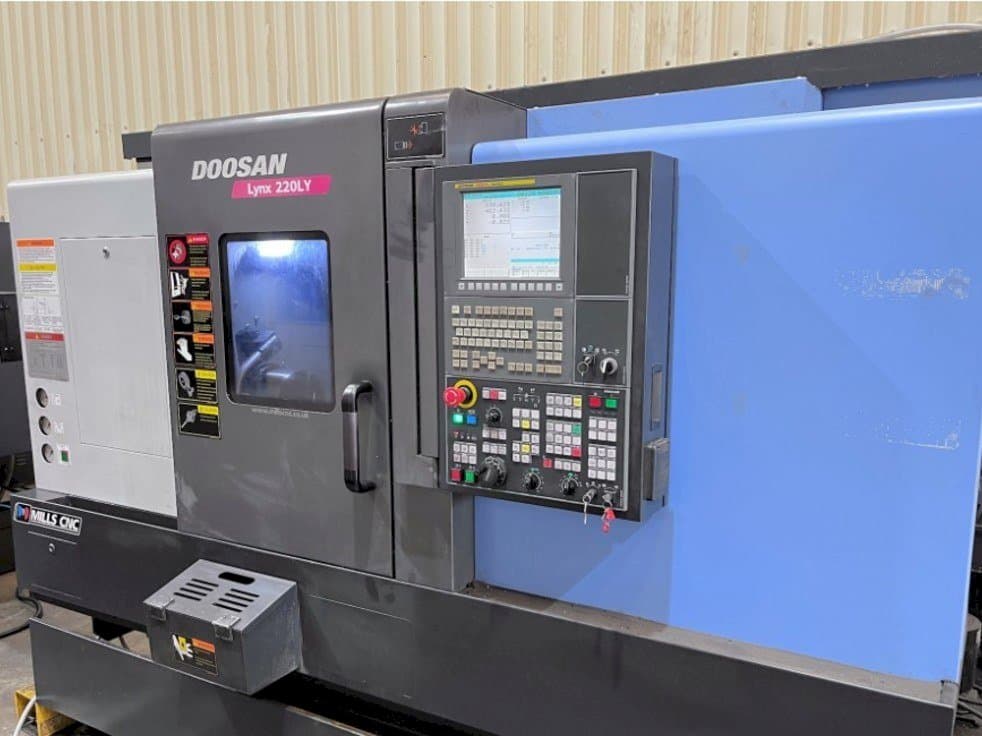

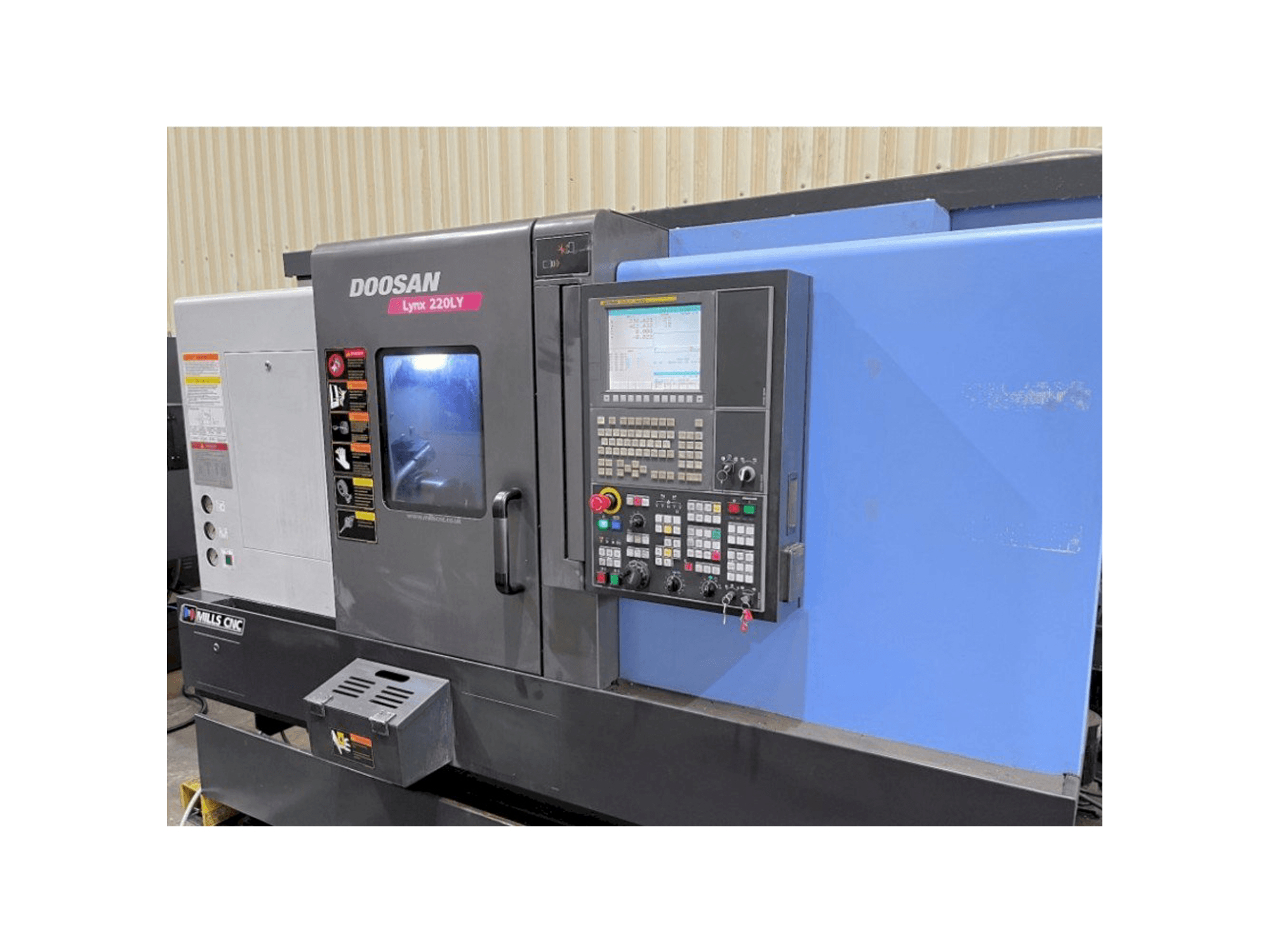

This Doosan Lynx 220LYC Lathe was made in 2014 in South Korea and has 20526 production hours, of which 3613 are cutting hours. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: Lynx 220LYC
- production hours: 20526
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN Lynx 220LYC
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 1710 mm
- Machine Height: 1920 mm
- Machine Weight: 4150 kg
Movement
- Number of Axes: 4
- X-axis Travel: 205 mm
- Y-axis Travel: 52 mm
- Z-axis Travel: 560 mm
Technical Specification
- Number of Tools: 24
- Spindle Speed: 4500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Swing over bed 600 mm, over carriage 400 mm
- Maximum machining diameter 300 mm
- Maximum machining length 510 mm
- Bar capacity 65 mm
- Main spindle motor power 15/11 kw
- Turret milling power 3. 7 kw; speed 6000 rpm
- 0. 001 degree c axis
- 3 jaw chuck 210 mm, collet chuck, parts catcher, manuals, tooling, usb port
- "turret positions 24 station (1/2 index option - positions 1-12 driven))"
- Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
