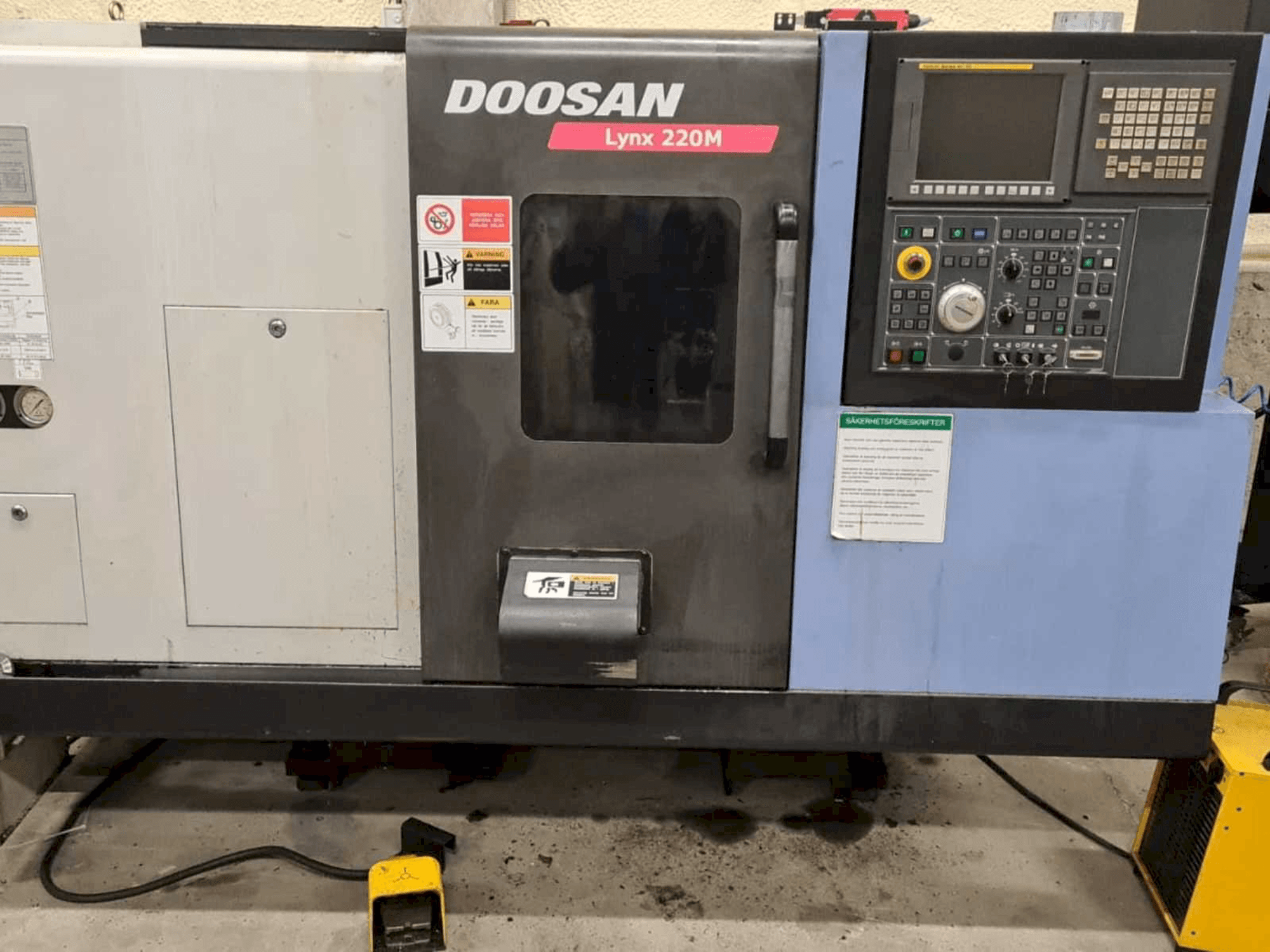

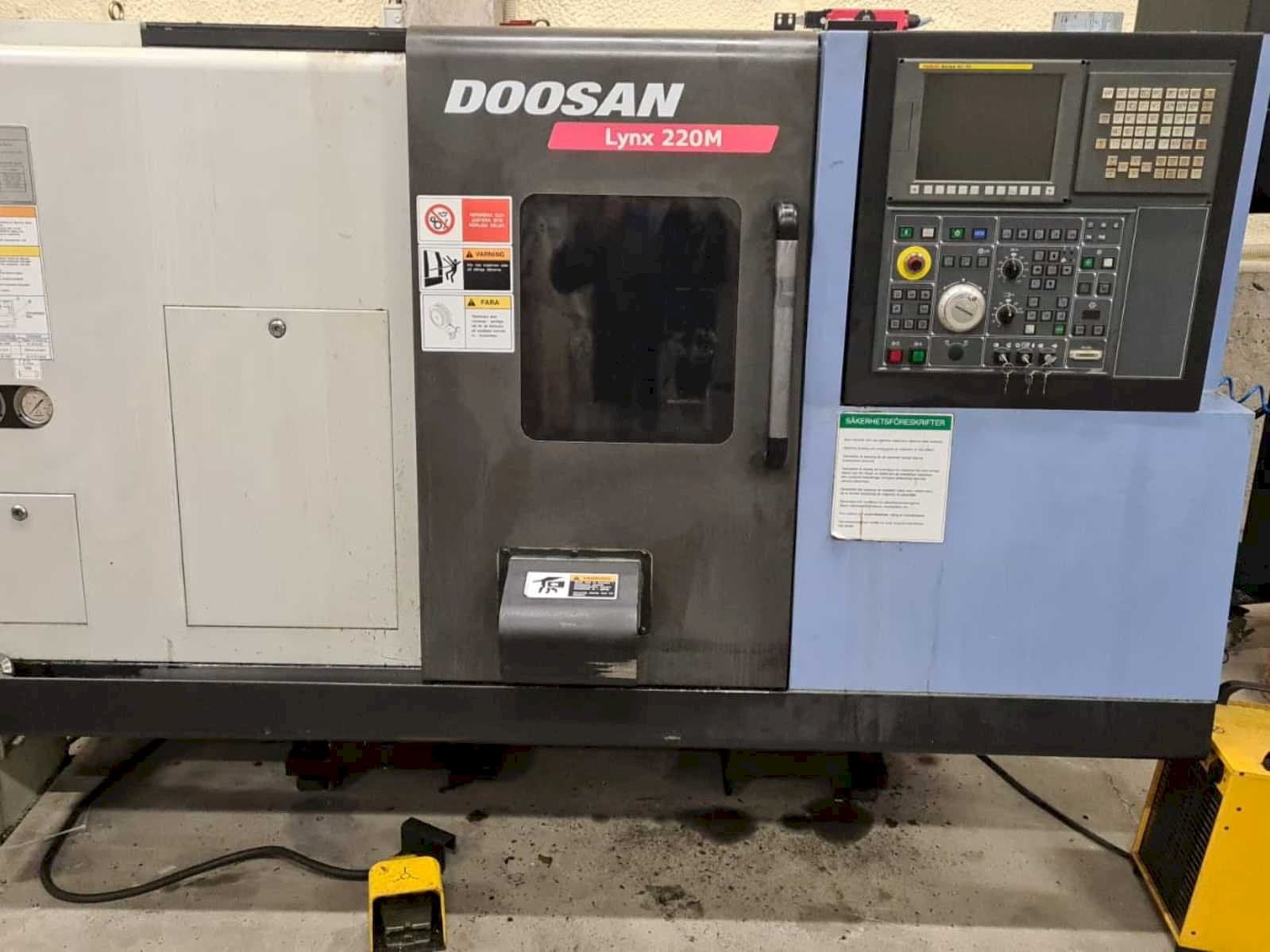

Front view of Doosan Lynx 220MA + bar feeder LNS Express machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 220MA + bar feeder LNS Express

Photo Gallery

DOOSAN - Lynx 220MA + bar feeder LNS ExpressLV-MIL-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220MA + bar feeder LNS Express Horizontal Machining center

Show in original language

This Doosan Lynx 220MA + bar feeder LNS Express Horizontal Machining Center was manufactured in the year 2007 in Korea and has 48000 production hours. It is equipped with a Fanuc Oi-TC control unit. The machine has a spindle speed of 6000 rpm. The bar feeder LNS is included in the price.

Overview

brand: DOOSAN
year: 2007
MODEL: Lynx 220MA + bar feeder LNS Express
production hours: 48000
application type: Milling
Location: Latvia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220MA + bar feeder LNS Express

General Data

Measurements width: 2410 mm
Measurements depth: 1600 mm
Measurements height: 1655 mm
Machine weight: 3500 kg

Control Unit

Model: Oi-TC
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 175 mm
Y-AXIS Movement: 330 mm

Workpiece

Workpiece drm: 170 mm
Workpiece x: 330 mm
Workpiece weight: 70 kg

Additional equipment

- Chip output conveyo
- Part capture box with output conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chip output conveyor.
- - Tool holders in the revolver head according to the picture.
- - Tool holders in the revolver head according to the picture.
Qualitative Machine Benefits:
- - Restored revolver head and active tool drive system!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
