DOOSAN Mynx 540

Photo Gallery

DOOSAN - Mynx 540CZ-MIL-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

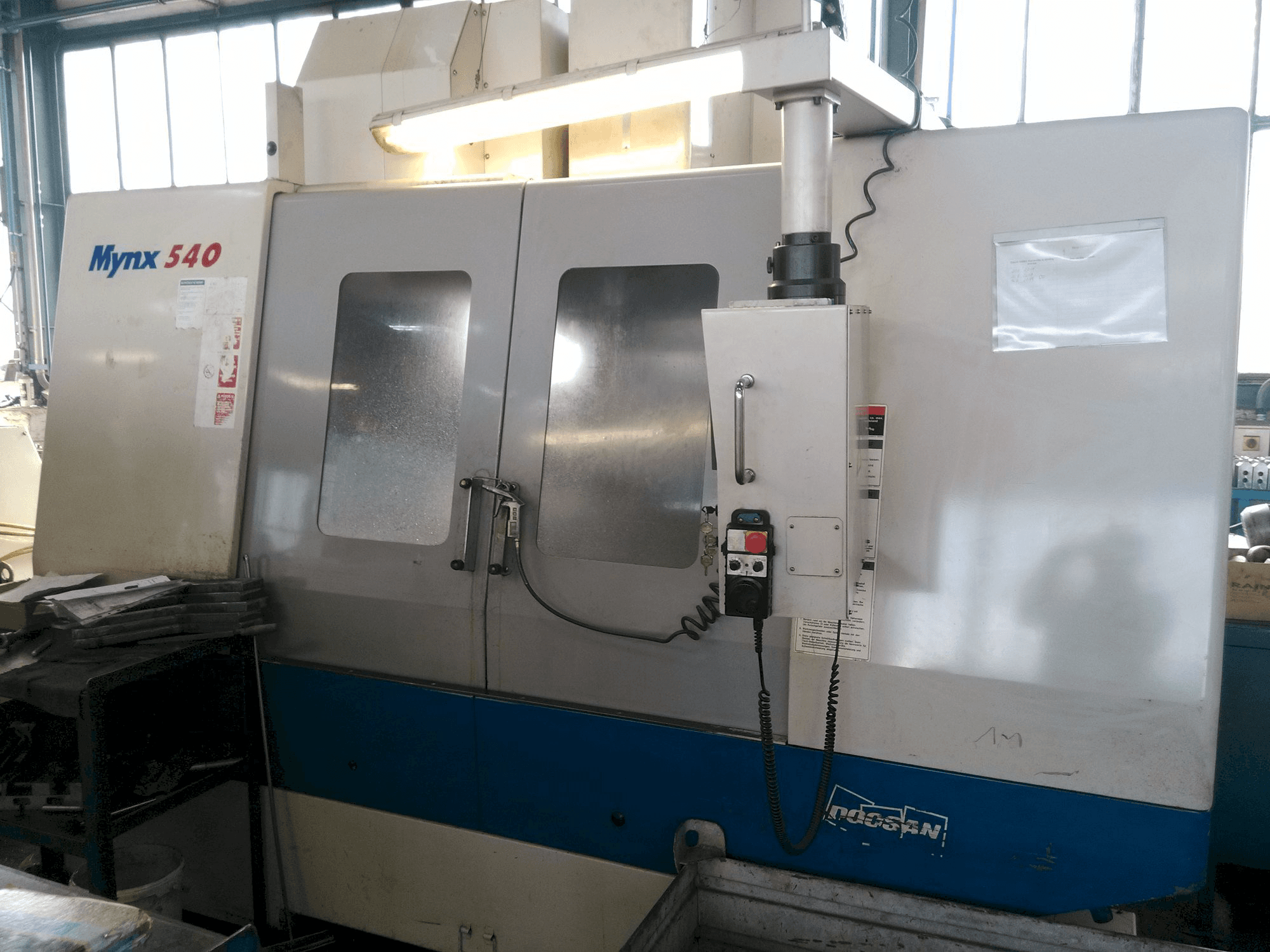

Doosan Mynx 540 Vertical Machining Center

Show in original language

This Doosan Mynx 540 Vertical Machining Center was built in 2007 in South Korea and has been working for 42000 hours, of which only 12500 are spindle hours. Equipped with a Fanuc 0i-MD Control unit, this machine can operate with a spindle speed up to 8000 rpm. It had its spindle retrofitted and a new encoder installed in 2018.

Overview

brand: DOOSAN
year: 2007
MODEL: Mynx 540
production hours: 42000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN Mynx 540

General Data

Measurements width: 2467 mm
Measurements depth: 3350 mm
Measurements height: 2800 mm
Machine weight: 7000 kg

Control Unit

Model: 21i-MB
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 625 mm

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 1400 mm
Outer width: 5000 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 150 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Spindle retrofitted and new encoder in 2018
12500 total spindle hours

Technical Machine Benefits

Spindle taper iso 40
Main motor power 11/15 kw

Machine History

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
