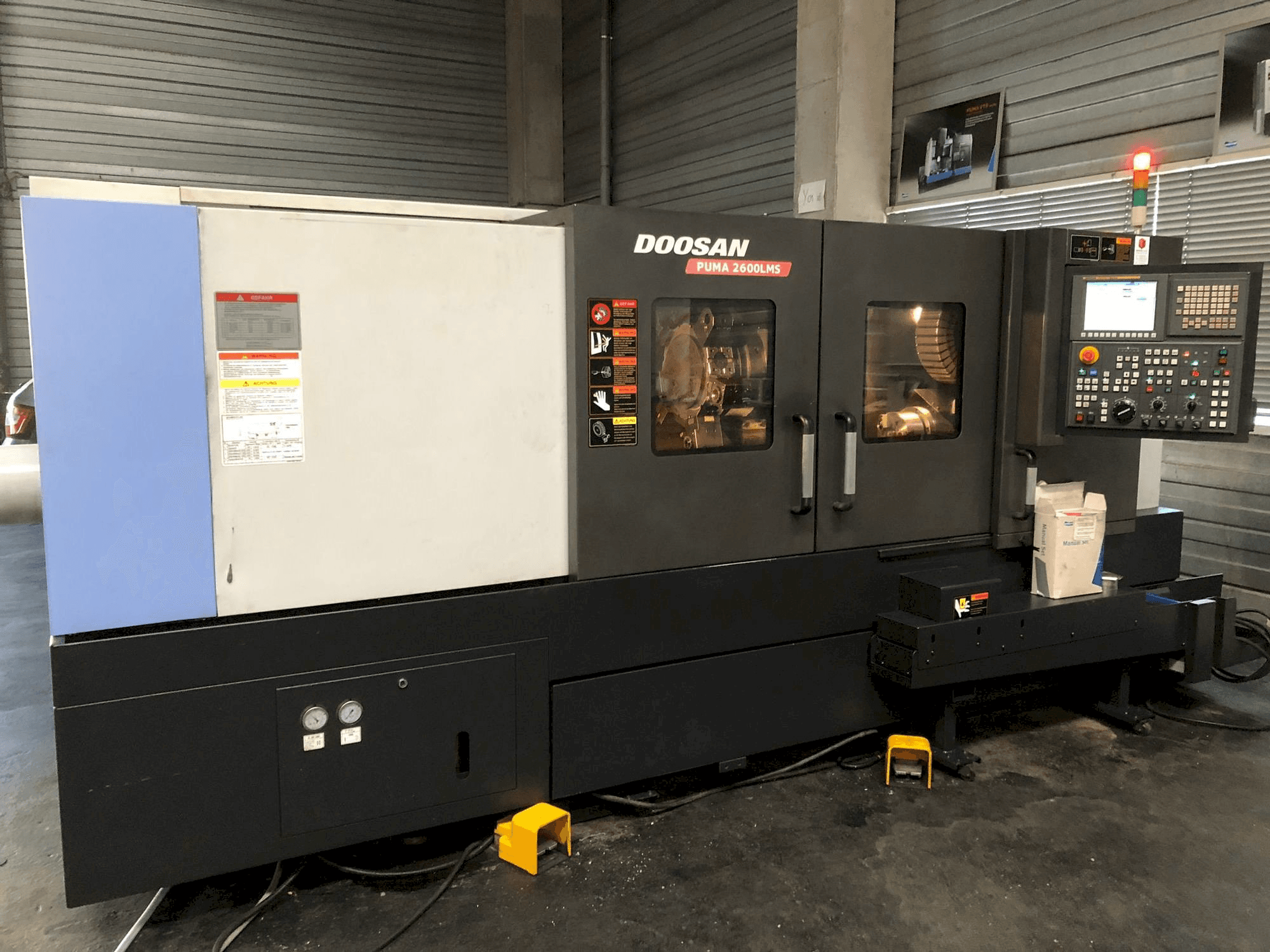

This Doosan 2600 LMS lathe was built in Korea in the year 2011. It has been powered on for 13026 hours, of which 2851 are cutting time. It is operated through a Doosan-Fanuc i Series control unit. This 3 axis machine counts with 2 spindles, the main one can work with a spindle speed up to 4000 rpm, and the sub-spindle can work with a spindle speed up to 4500 rpm.
Overview
- brand: DOOSAN
- year: 2011
- MODEL: Puma 2600 LMS
- production hours: 13026
- application type: Turning
- Location: Austria
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN Puma 2600 LMS
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 1863 mm
- Machine Height: 1900 mm
- Machine Weight: 7500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Swing over bed: 780 mm
- Swing over saddle: 630 mm
- Recom. Turning diameter: 255 mm
- Max turning diameter: 376 mm
- Max work length: 1280 mm
- Bar working diameter: 76 mm
- Spindle nose: asa a2#8
- Spindle bearing diameter: 140 mm
- Spindle through hole diameter: 86 mm
- Sub spindle: 4500 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
