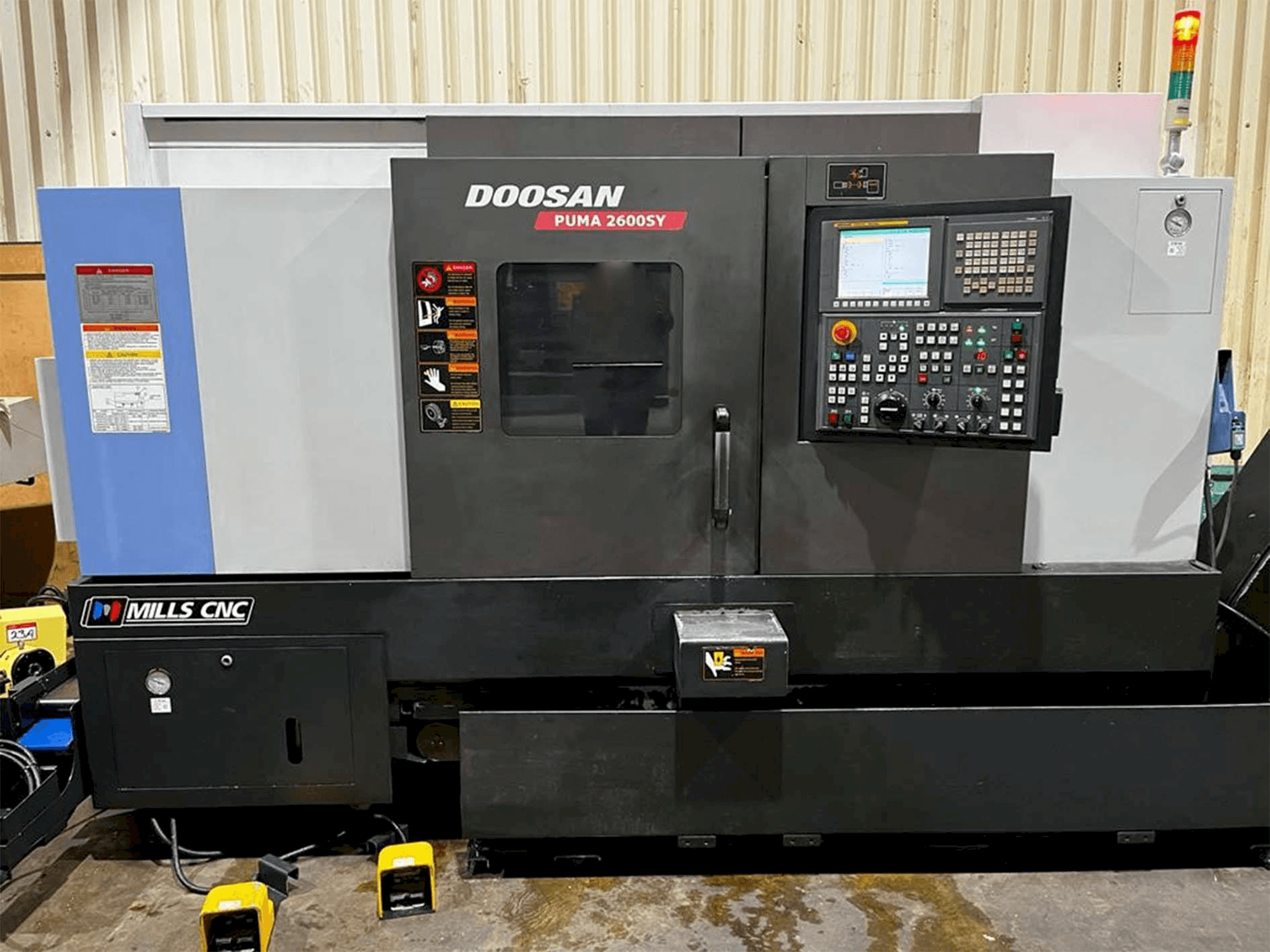

Front view of Doosan Puma 2600SY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 2600SY

Photo Gallery

DOOSAN - Puma 2600SYGB-TUR-DOO-2012-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 2600SY Lathe machine

Show in original language

This Doosan 2600SY Lathe machine was manufactured in South Korea in the year 2012. This 4 axis machine operates through a Fanuc I Series control unit. It incorporates a spindle speed of 3500 rpm and a sub-spindle speed up to 4500 rpm. The machine is in very good condition and includes manuals.

Overview

brand: DOOSAN
year: 2012
MODEL: Puma 2600SY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600SY

General Data

Measurements width: 6600 mm
Measurements depth: 1863 mm
Measurements height: 2163 mm
Machine weight: 6000 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 3500 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: +/- 52.5 mm
Z-AXIS Movement: 830 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning over bed 780 mm, over carriage 630 mm
- - Maximum machining diameter 376 mm
- - Maximum machining length 760 mm
- - Bar capacity 76 mm
- - Main spindle motor power 22/15 kw
- - Turret milling power 5. 5 kw; speed 5000 rpm
- - 0. 001 degree c axis
- - Subspindle speed 4500 rpm, power 7. 5 kw
- - 3 jaw chuck, tooling
- - Tool setter, parts catcher, coolant
Qualitative Machine Benefits:
- - Very good condition
- - Includes machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
