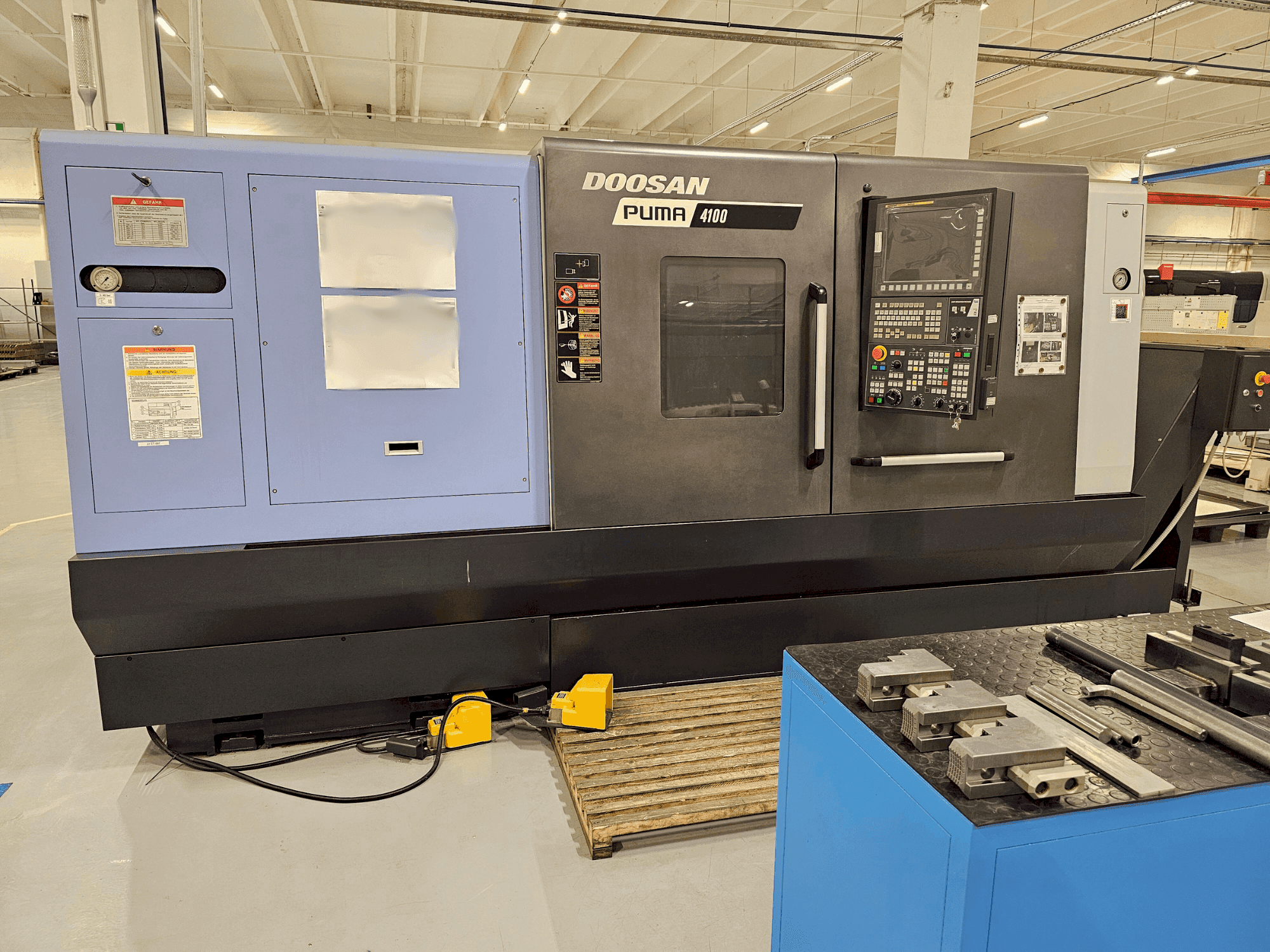

Front view of DOOSAN PUMA 4100B (2018) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA 4100B

Photo Gallery

DOOSAN - PUMA 4100BBG-TUR-DOO-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Horizontal Lathe DOOSAN Puma 4100B - 2018 - for sale | GINDUMAC.COM

Show in original language

This DOOSAN Puma 4100B Horizontal Lathe was manufactured in 2018 in South Korea. It is equipped with a maximum workpiece diameter of 550 mm and a maximum workpiece length of 1042 mm. Controlled by a FANUC 0i Series control, it offers a spindle speed of 2000 rpm with a spindle power of 35 kW (30 min) / 22 kW (continuous). This machine accommodates 10 tools and features a A2-11 ASA taper size, providing versatility and precision in machining operations. It comes with chip conveyor, hydraulic, lubrication and cooling system. The machine has a run time of 796 hours, is still under power and can be inspected at any time.

Overview

brand: DOOSAN
year: 2018
MODEL: PUMA 4100B
production hours: 796
application type: Turning
Location: Bulgaria
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN PUMA 4100B

General Data

Measurements width: 4654 mm
Measurements depth: 2056 mm
Measurements height: 2194 mm
Machine weight: 9950 kg

Control Unit

Brand: FANUC
Model: 0i Series

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 35/22 (30min/Cont.) kW
Tool taper: A2-11 ASA

Movement

X-AXIS Movement: 352mm
Z-AXIS Movement: 1105 mm

Tools

Number of stations: 10

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Hydraulic system // Tank capacity: 16 L, Viscosity grade of oil: ISO VG32
Lubrication system // Tank capacity: 4.3 L, Discharge volume: 0,1 (50Hz) L/min, Viscosity grade of oil: ISO VG68
Coolant system // Tank capacity: 365 L, Coolant oil type: Water soluble cutting fluid, Coolant pump motor power: 0.4 kW, Coolant pump max. pressure: 0,15/0,1 (60/50Hz) MPa, Coolant pump max. flow rate: 40 L/min
Full enclosure chip and coolant shield
Front door interlock Foot switch
Hydraulic power unit
Hydraulic chuck & actuating cylinde
Work light
Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
