Doosan PUMA MX 2000 ST Lathe

Show in original language

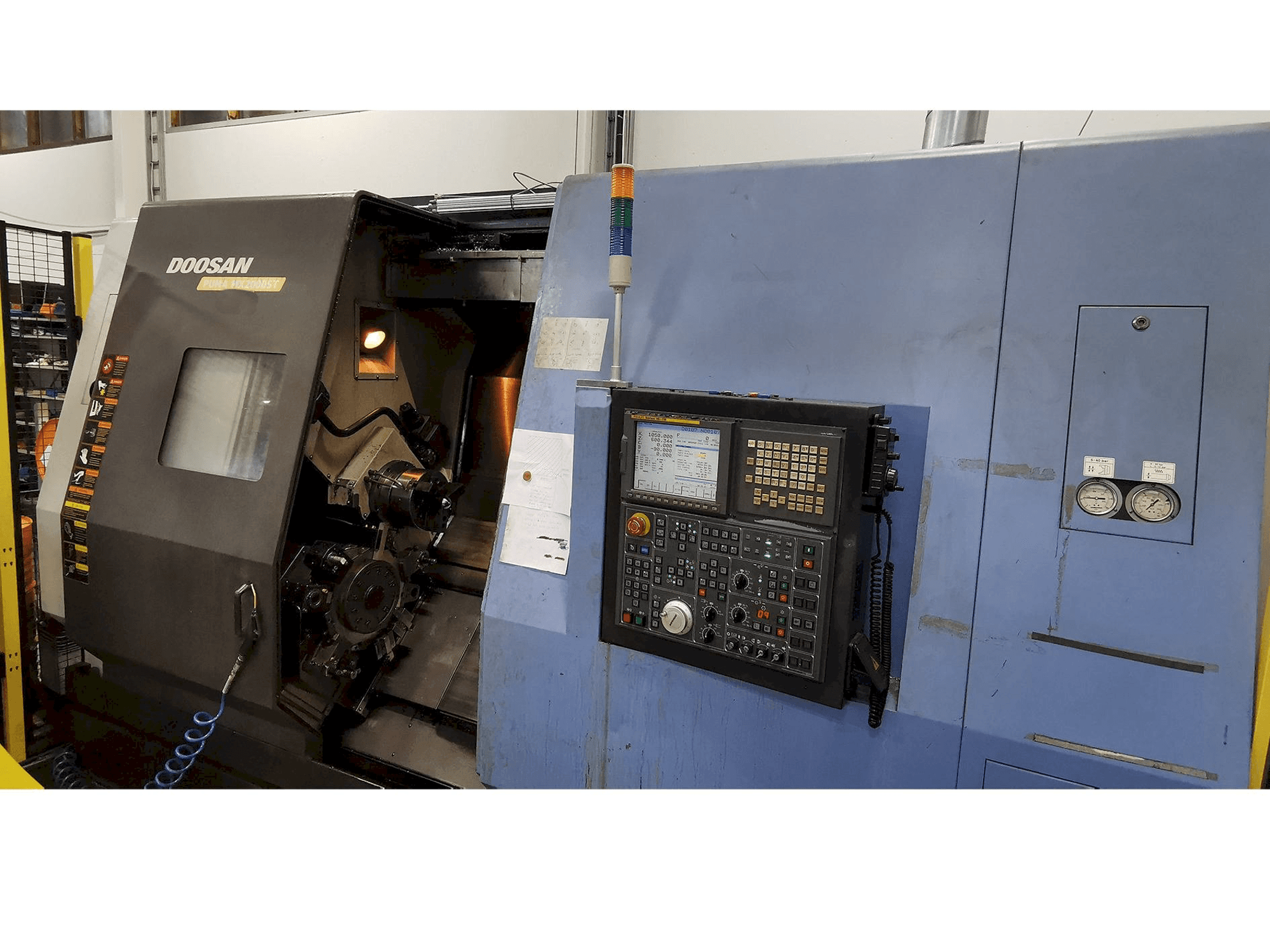

This Doosan MX 2000 ST Lathe was manufactured in Korea in 2007. It shows 10800 production hours. This 9 axis machine is equipped with a FANUC 18-T control unit and operates with a spindle speed up to 10000 rpm.

Overview

brand: DOOSAN
year: 2007
MODEL: Puma MX 2000 ST
production hours: 10800
application type: Turning
Location: Finland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma MX 2000 ST

General Data

Measurements width: 4500 mm
Measurements depth: 2500 mm
Measurements height: 2600 mm
Machine weight: 12500 kg

Control Unit

Model: 18-T
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Turret

Number of turrets: 1

Media

Main electronic connection: 400 V
Power consumption: 66,09 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 9 controlled axes x1x2-y1y2-a-b-c1 / c2-y
- - Admitted above the bench 750 mm
- - Admitted above the carriage 600 mm
- - Max turning 550 mm
- - Turning without interference 210 mm
- - Bar turning 65 mm
- - Maximum turning length 1020 mm
- - Spindle & counter-spindle: 2 mandrels 210 mm; spindle nose a2-6 ‘'; spindle bore 66 mm
- - Spindle & counter-spindle: rotation speed 5000 rpm; unit power 22 kw; c1 / c2 axes 360000 (continuous rotation)
- - Milling spindle: tool changer 40 stations with gripper arm; tool change time 1, (second) b axis 360 ° 30 °; increment (spindle tilt)
Qualitative Machine Benefits:
- - Turret: 12 positions
- - Complete documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
