DOOSAN TT1800SY

Photo Gallery

DOOSAN - TT1800SYGB-TUR-DOO-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

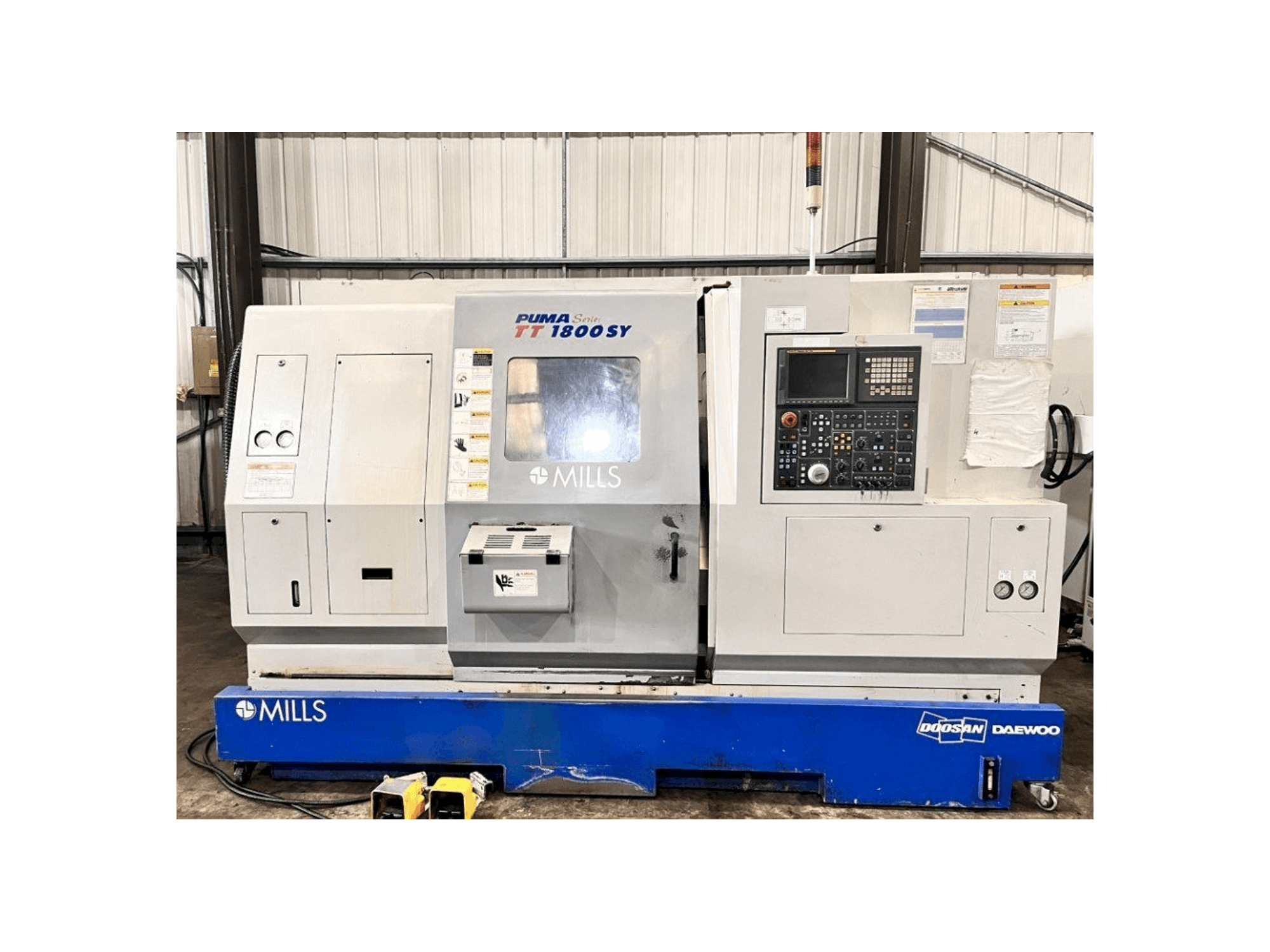

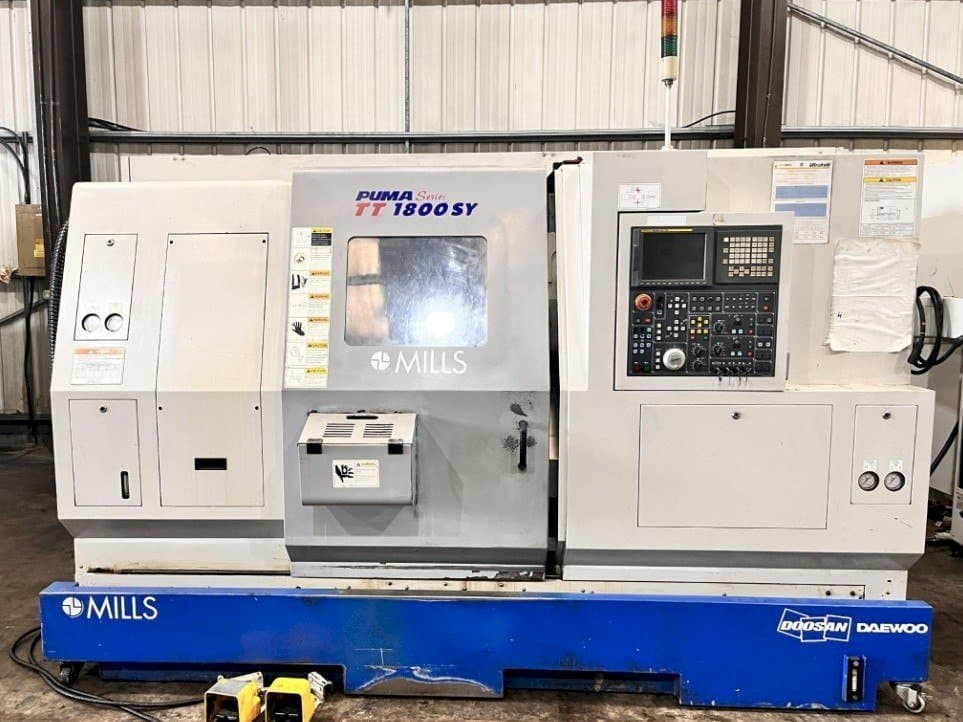

Doosan Puma TT1800SY Lathe

Show in original language

This Doosan TT1800SY Lathe machine was manufactured in the year 2006 in South Korea. It is equipped with a FANUC 18I-TB control unit. The machine has a spindle speed up to 5000 rpm. It counts with 8 controlled axes. Very good condition.

Overview

brand: DOOSAN
year: 2006
MODEL: TT1800SY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN TT1800SY

General Data

Measurements width: 3905 MM
Measurements depth: 2070 MM
Measurements height: 2080 MM
Machine weight: 8800 kg

Control Unit

Model: 18I-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 165/190 MM
Y-AXIS Movement: +/- 50 MM
Z-AXIS Movement: 700/720 MM
A-AXIS Movement: 770

Turret

Number of turrets: 2

Tools

Slots in storage: 12+12

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Machine manual

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 230 mm
Bar capacity 65 mm for both spindles
Main spindle motor power 22/15 kw
Subspindle max. Speed 5000 rpm
0. 001 degree c1 & c2 axis
Tool setter, parts catcher, coolant, barfeed magazine
Collet chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
