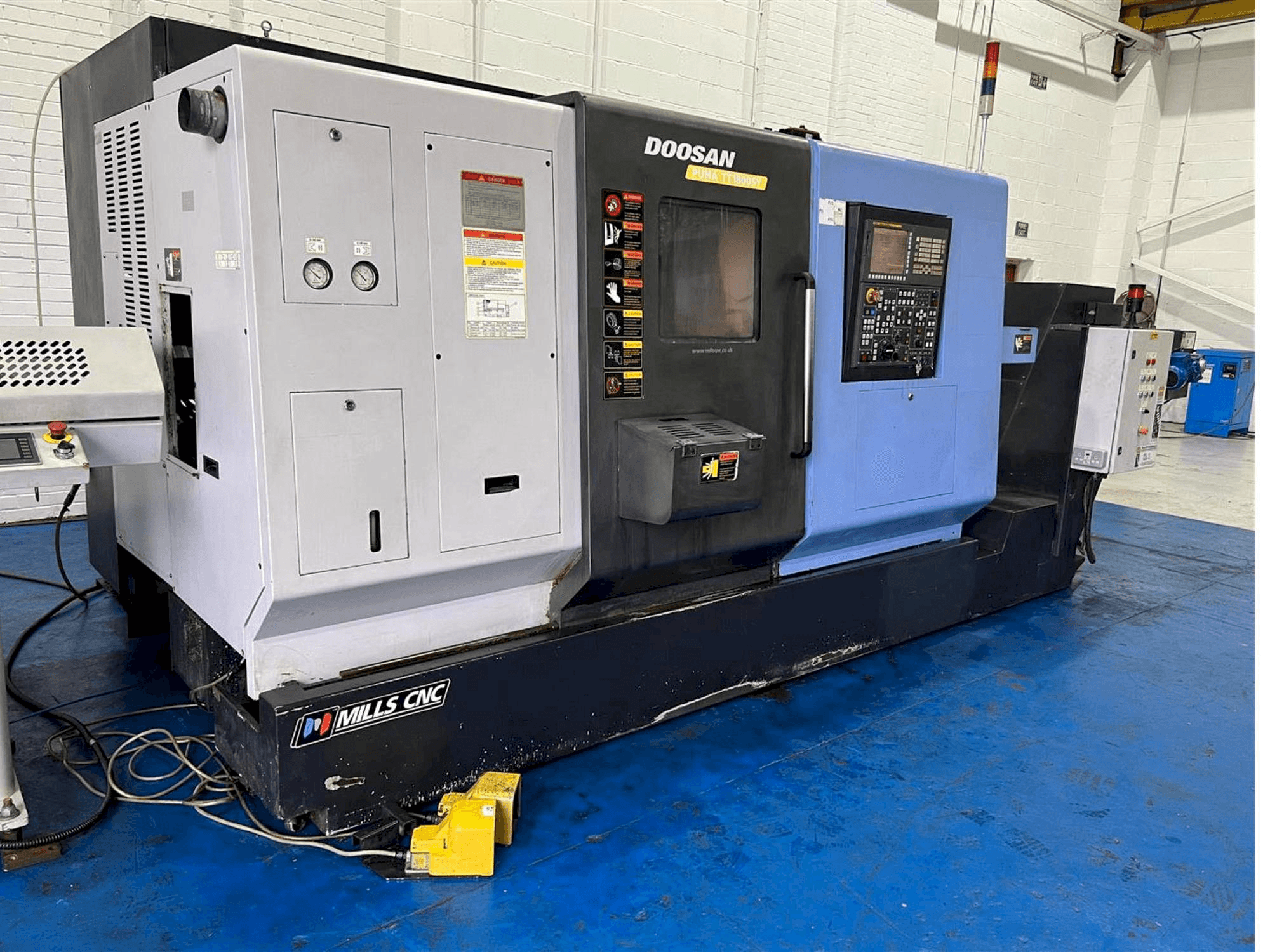

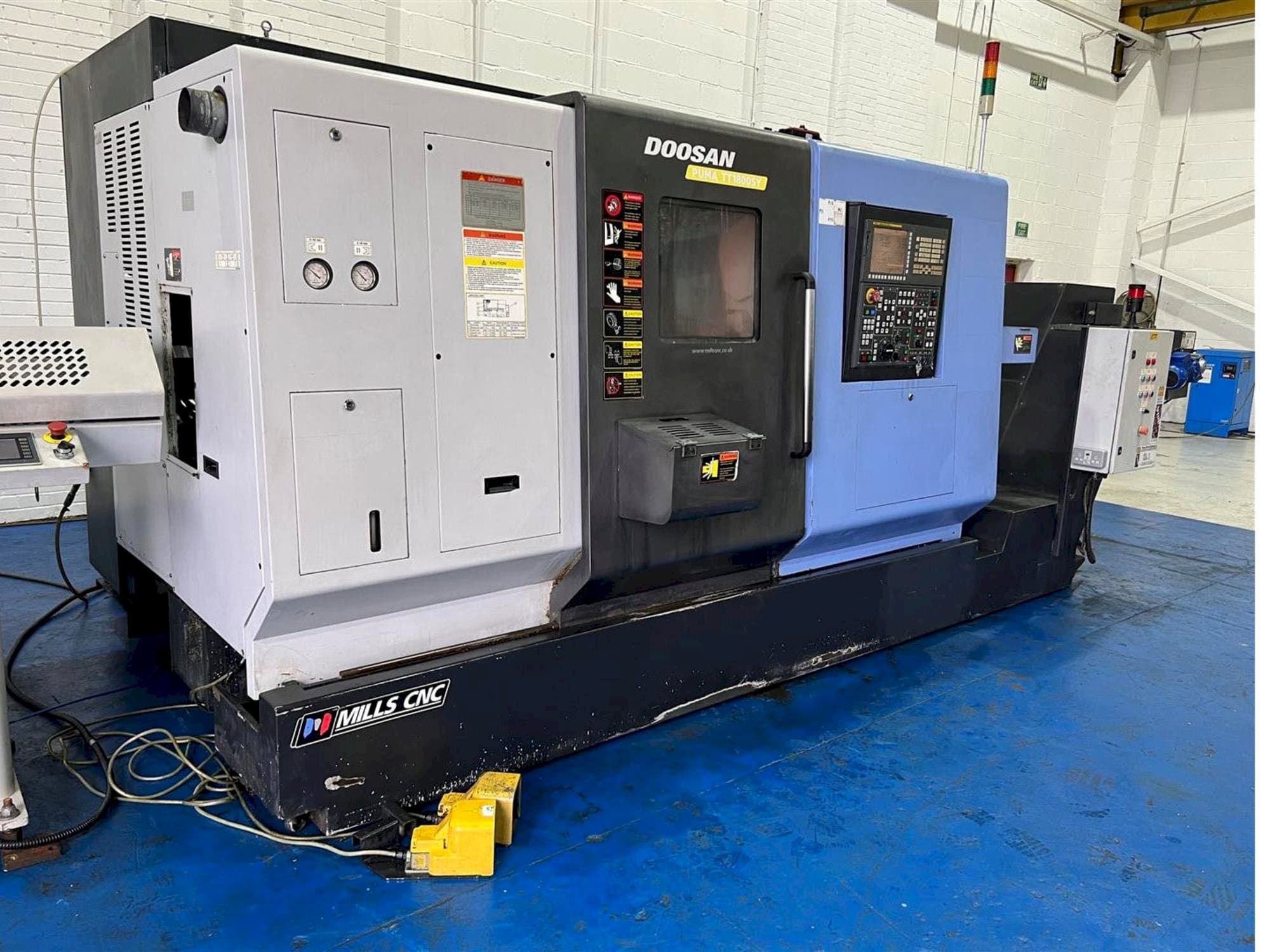

This Doosan TT1800SY Lathe was built in Korea in the year 2010. It is equipped with a FANUC 31I-A control unit. It has 9 axis, can work with one spindle speed up to 5000 rpm, and a bar capacity of 65 mm for both spindles. Includes chip conveyer and presents a very good condition.
Overview
- brand: DOOSAN
- year: 2010
- MODEL: TT1800SY
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN TT1800SY
Control Unit
- Control Brand: FANUC
- Control Model: 31I-A
Dimensions
- Machine Depth: 2070 mm
- Machine Height: 2080 mm
- Machine Weight: 8800 kg
Movement
- Number of Axes: 8
- X-axis Travel: 165 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 700 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Swing over saddle 230 mm
- "maximum turning diameter 230mm"
- "maximum cutting length 230mm"
- Bar capacity 65 mm for both spindles
- Main spindle motor power 22/15 kw
- Subspindle max. Speed 5000 rpm
- 0. 001 degree c1 & c2 axis
- Tool setter, coolant, y-axis, twin turret
- 3 jaw chuck
- Barfeed magazine hydrafeed mx1
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
