DOOSAN - TT2500SYIT-TUR-DOO-2010-00001

Name: DOOSAN TT2500SY
Brand: DOOSAN
SKU: IT-TUR-DOO-2010-00001
Price: 8233950 INR
Availability: InStock

Rs. 8,233,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN TT2500SY - Lathe For sale | gindumac.com

Show in original language

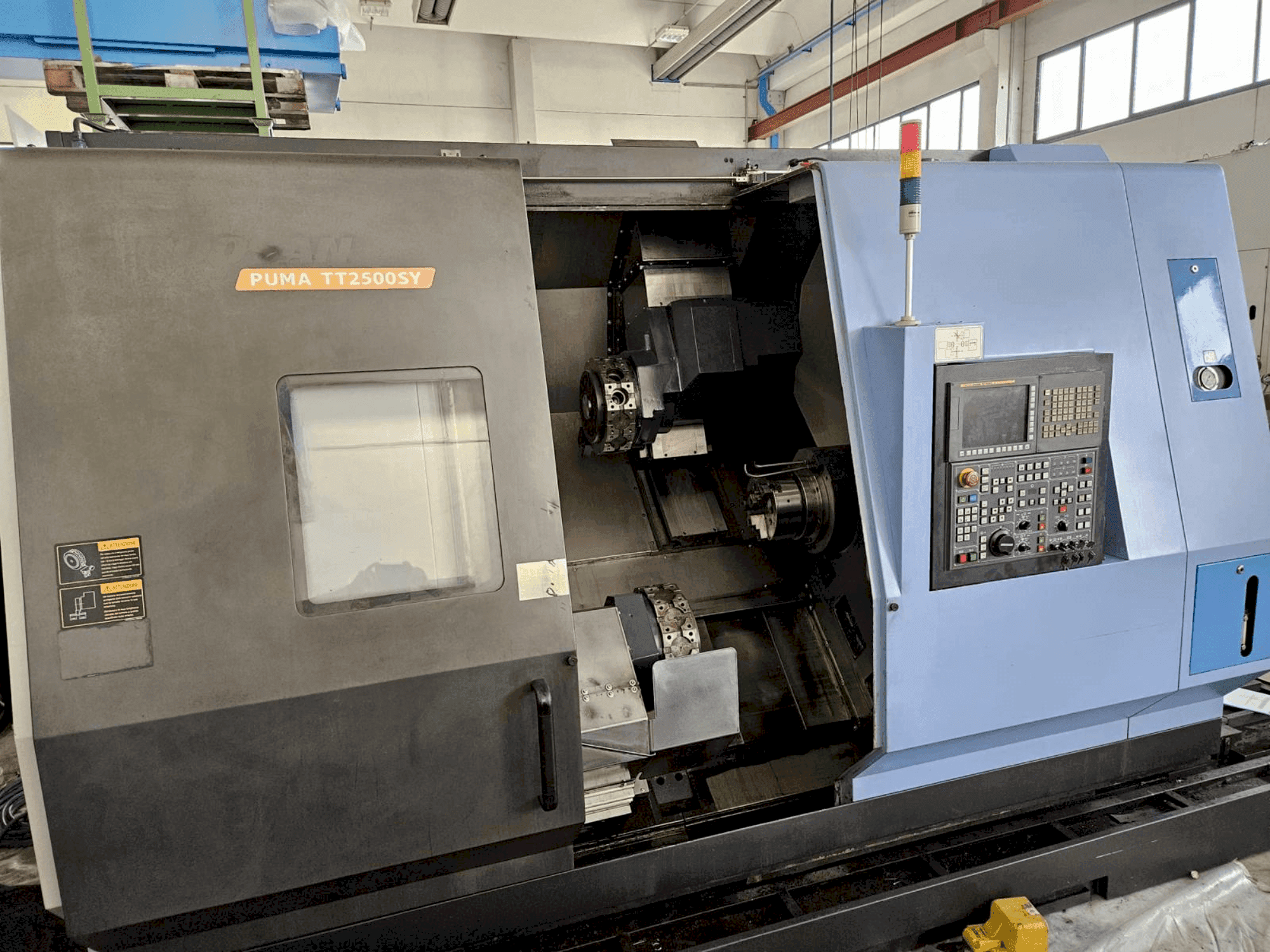

This 8-axis DOOSAN TT2500SY lathe was manufactured in 2010. It features a maximum turning diameter of 390mm, a bar passage of 76mm, and dual spindles with speeds up to 3500 rpm. The machine includes a Y/A axis for the counterspindle, a 360º C1 and C2 axis, and a turret with 12 live tools capable of 4000 rpm. Dimensions are 5000 x 2200 x 2340mm, weighing 11700kg. For more information about this lathe, please reach out to us.

Overview

brand: DOOSAN
year: 2010
MODEL: TT2500SY
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Immediatetly

Technical Information - DOOSAN TT2500SY

Main drive

Spindle speed range: 3500 1/MIN
Tool taper: ASA 8

Movement

X-AXIS Movement: 255 mm
Z-AXIS Movement: 800 mm
AXIS 1 Movement: 360 °
AXIS 2 Movement: 360 °

Workpiece

Workpiece drm over bed: 800 mm
Workpiece drm over support: 620 mm

Turret

Number of tool slots: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Y/a axis (counterspindle): 120/810mm
- - X2 axis: 190mm
- - Z2 axis: 900mm
- - Live tools speed: 4000rpm
- - Max turn diameter: 390mm
- - Bar passage: 76mm
- - Max working length: 700mm
- - Dual spindle and counterspindle capabilities, high-speed live tools, comprehensive axis movement.
Qualitative Machine Benefits:
- - High precision and accuracy in turning operations.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
