DOOSAN - VC 500SK-MIL-DOO-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

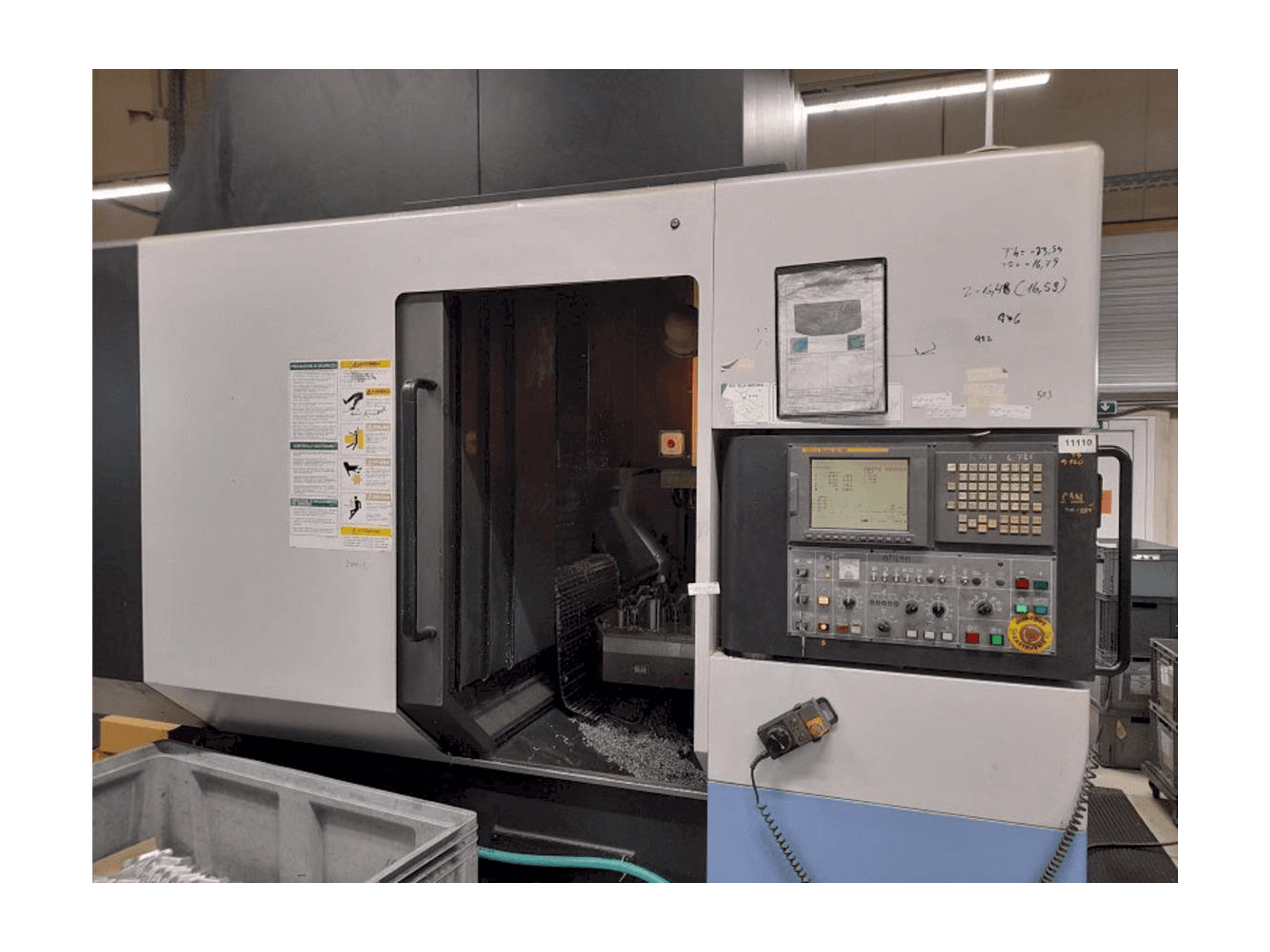

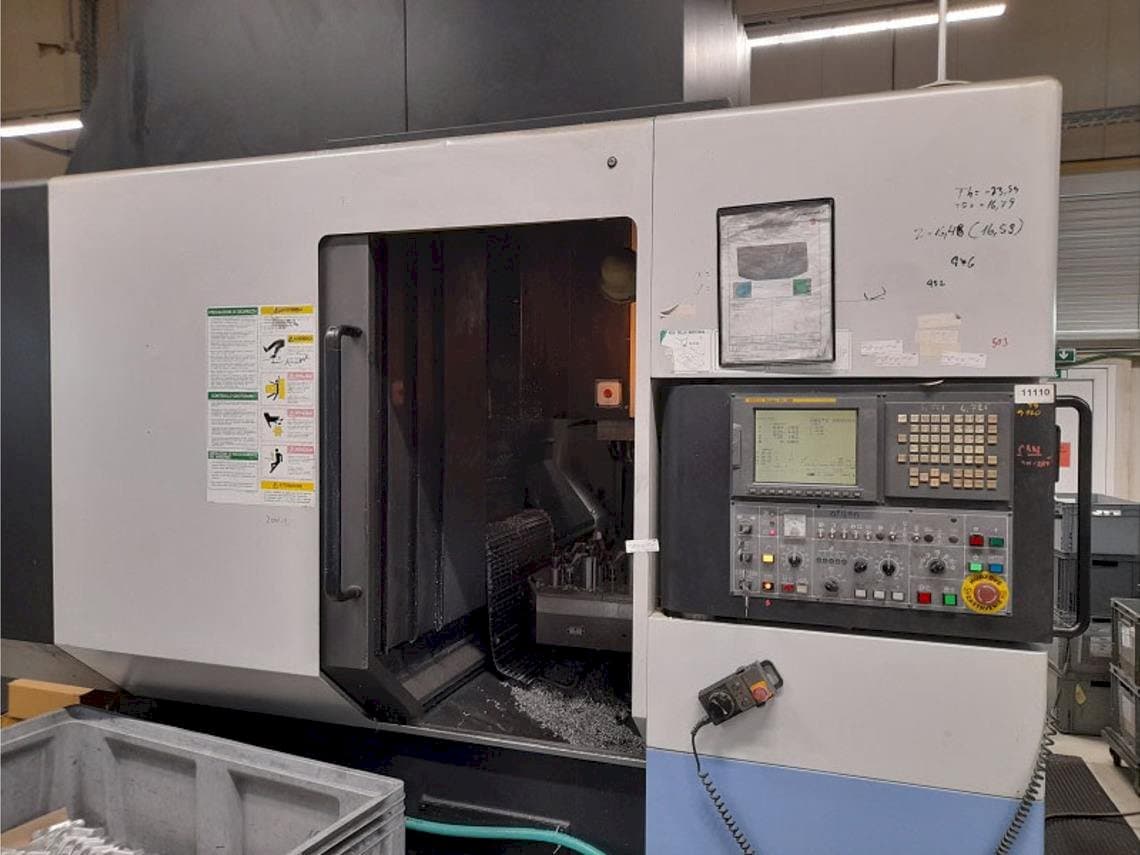

Doosan VC 500 Vertical Machining center

Show in original language

This Doosan VC 500 Vertical Machining center was manufactured in the year 2008 in South Korea. It is equipped with a Fanuc 18iMA control unit and has 4 axis. The machine has a spindle speed of 10000 rpm and is in good condition and well maintained.

Overview

brand: DOOSAN
year: 2008
MODEL: VC 500
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VC 500

General Data

Machine weight: 9200 kg

Control Unit

Model: 18iMA
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 570 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 860 mm
Outer width: 570 mm

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool diameter: 80/150 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Main electronic connection: 380-400V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets
- - Max. Workpiece height 520 mm
- - Min. -max. Height under spindle nose 210-780 mm
- - Feedrate 8000 mm/min.
- - Rapid feedrate x/y/z 40/40/32 m/min.
- - Spindle motor power 11/15 kw
- - Pallet change time 5 s
- - Cooling through spindle 20 bar
- - 4th axis nikken
Qualitative Machine Benefits:
- - Very good condition, only worked with aluminium.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
