Doosan VC630/5AX Vertical Machining Center

Show in original language

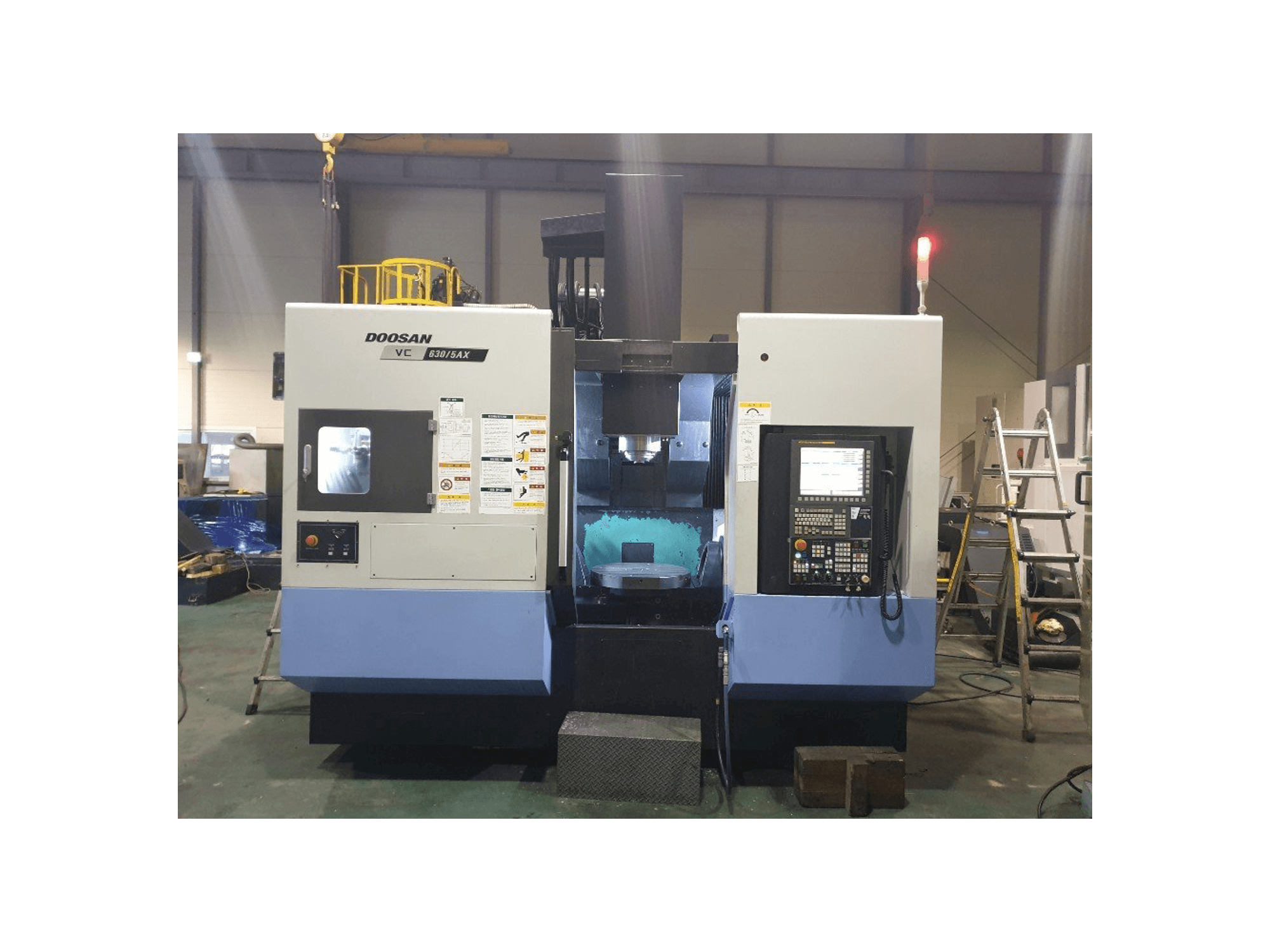

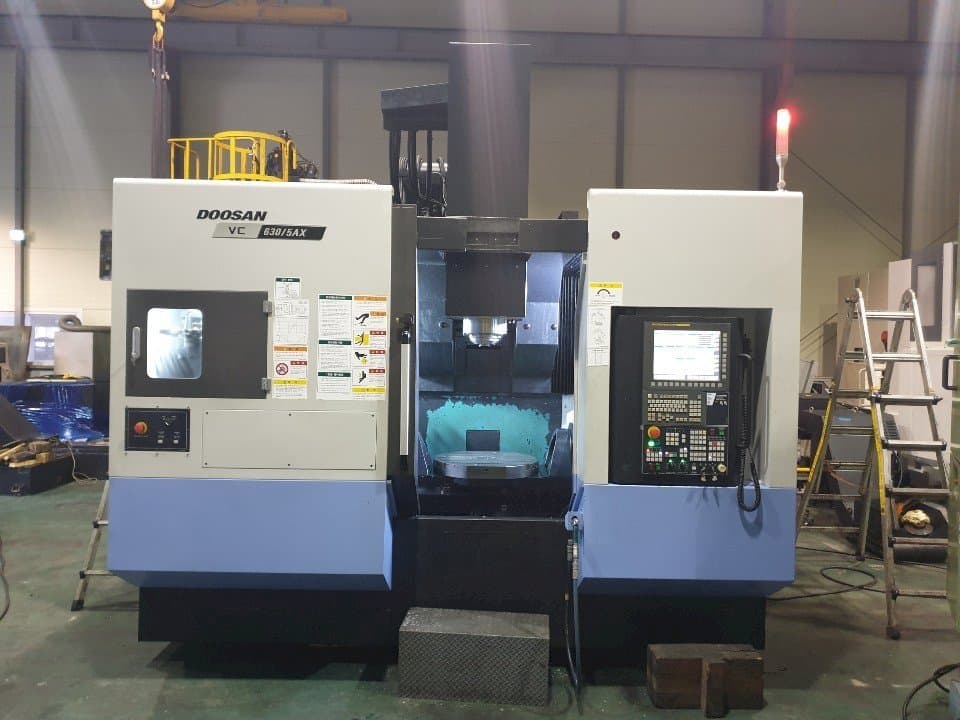

This Doosan VC630/5AX Vertical Machining Center was built in the year 2017 in Korea. It has been working for only 4532 hours since then. It is operated through a Fanuc 31I-B5 control unit. This 5 axis machine can work with a spindle speed range up to 12000 rpm.

Overview

brand: DOOSAN
year: 2017
MODEL: VC630/5AX
production hours: 4531
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN VC630/5AX

General Data

Measurements width: 3200 mm
Measurements depth: 4585 MM
Measurements height: 3295 mm
Machine weight: 13500 kg

Control Unit

Model: 31I-B5
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22 kW
Tool taper: CAT40

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 765 mm
Z-AXIS Movement: 520 mm

Workpiece

Workpiece weight: 500 kg

Tools

Number of stations: 81 ea
Slots in storage: 40

Media

Main electronic connection: 220 V - 60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits

Rotary table diameter: 630 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
