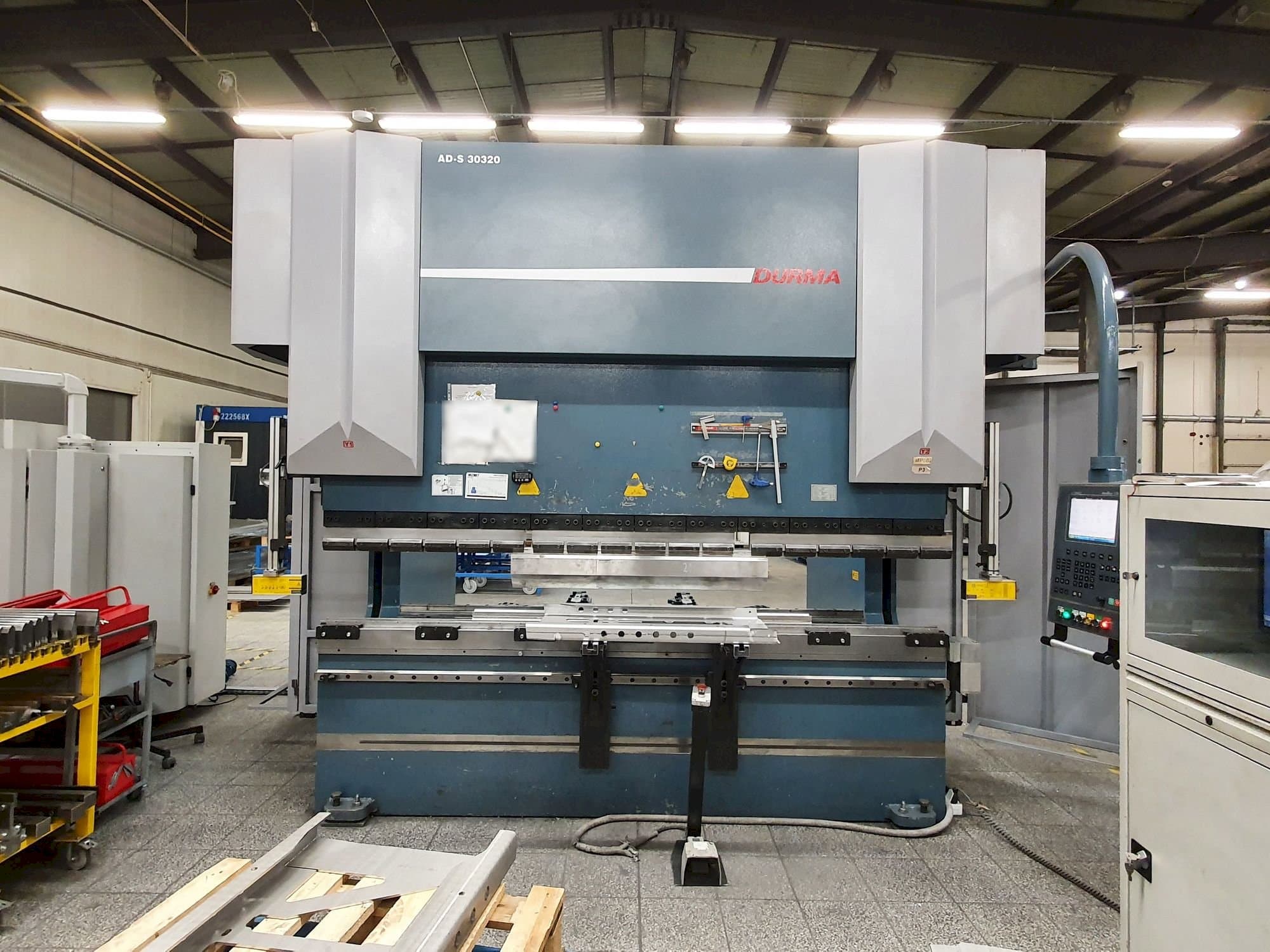

Durma - AD-S 30320PL-BEN-DUR-2012-00001

Additional equipment

• - Portable console with foot switch and stop / breakdown button
• - Lighting
• - Front laser protection of the working space, type FIESSLER AKAS
• - CNC table compensation, Wila type
• - Front supports: 2 pcs

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Extension of the back gauge up to 1000 mm
  • - Central lubrication (manual)
  • - Durma tool clamping system
  • - 2d graphics, 10 "color screen, 256 mb flash memory
  • - Usb port and 3. 5 "floppy disk drive
  • - Rj45 ethernet port for networking and rs 232 port
  • - Programming of tools, angles and bending lengths
  • - Axis corrections for the product and for the step (for each bend)
  • - Simulation of the bending process (automatic selection of the bending sequence, collision signaling
  • - Distance between columns: 2600 mm
• Qualitative Machine Benefits:
  • - Machine in very good working condition
  • - Full documentation available
  • - Ready for tests
  • - X axis speed 500 mm/s, r axis speed: 350 mm/s
  • - Bending force: 320 tons
  • - It is 8 axis cnc press brake (y1, y2, x, r, z1, z2, x1, x2)
  • - Cnc axis: y1, y2, x, r, z1, z2, x1, x2 v

Extra information

• - No tooling included in the offer.

Payment Terms

• Payment in advance

• Asset Financing
