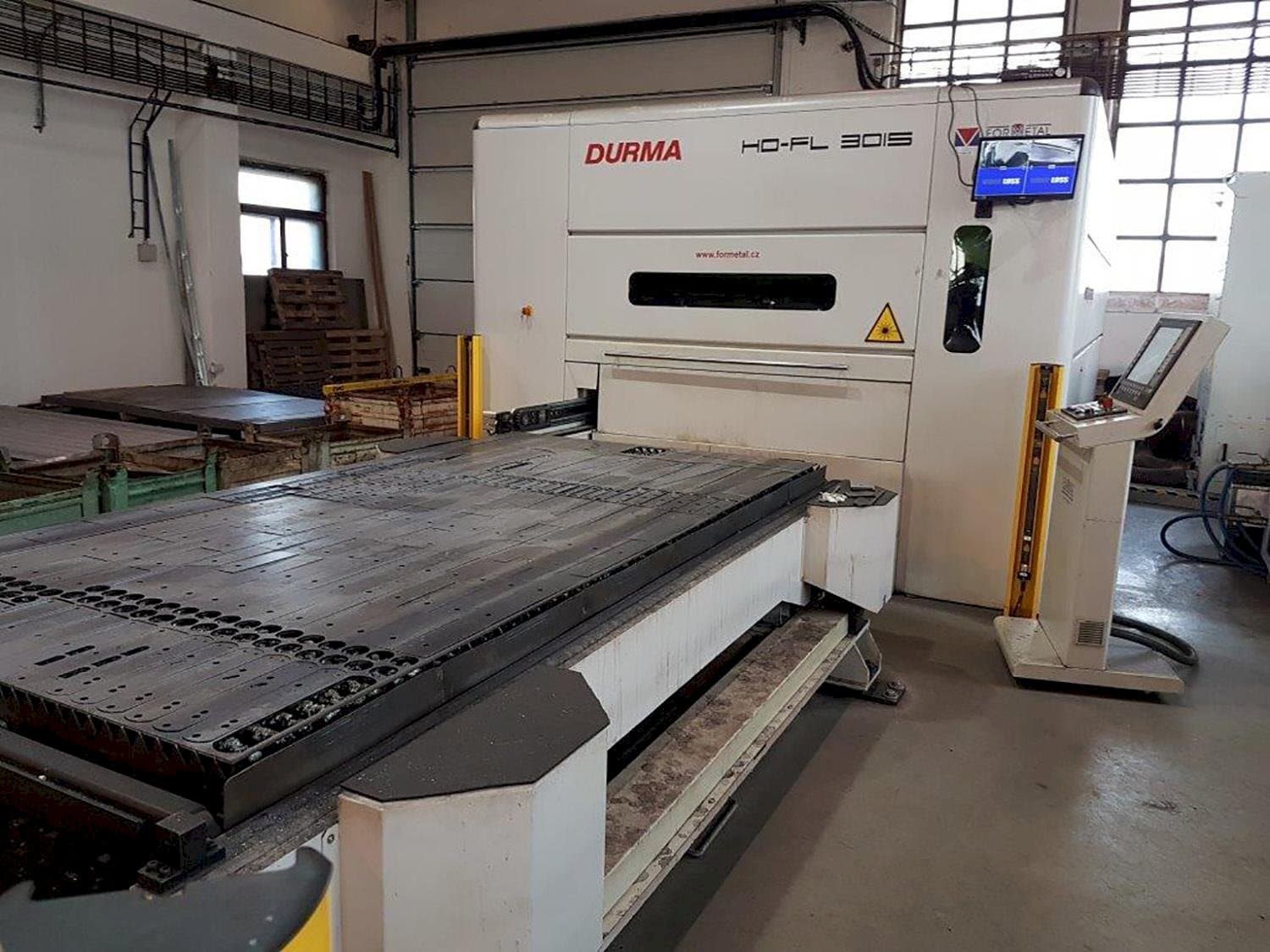

Front view of Durma HD-FL 3015 L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Durma HD-FL 3015 L

Photo Gallery

Durma - HD-FL 3015 LCZ-LAS-DUR-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Durma Laser HD-FL 3015 L Fiber Laser Cutting Machine

Show in original language

This Durma Laser HD-FL 3015 L Fiber Laser Cutting Machine was manufactured in 2013 in Turkey. It has been working for 17140 hours (9273 cutting time). It is equipped with a Siemens Sinumerik control unit. This laser machine can work with a laser power of 2 kW, and can cut steel sheets up to 12 mm of thickness.

Overview

brand: Durma
year: 2013
MODEL: HD-FL 3015 L
production hours: 17140
application type: Cutting
Location: Czech Republic
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - Durma HD-FL 3015 L

General Data

Machine weight: 12000 kg

Control Unit

Model: Sinumerik
Brand: SIEMENS

Main drive

Laserpower: 2 kW

Movement

X-AXIS Movement: 3060 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 200 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece weight: 1000 kg

Max Material thickness

Steel: 12 mm
Stainless steel: 6 mm
Aluminum: 6 mm

Media

Power consumption: 45 kWh

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max speed x- and y- axes: 160 m/min
- - Max. Spped simultaneous: 226 m/min
- - Max. Acceleration: 25 m/s²
- - Positional accuracy: +/- 0,03 mm
- - Repeatability: +/- 0,03 mm
- - Shuttle table for simultaneous loading/unloading
Qualitative Machine Benefits:
- - Very good condition
- - Regularly serviced and maintained
- - In 2018 - 2x new ipg generator was installed
- - In operation from 2015

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
