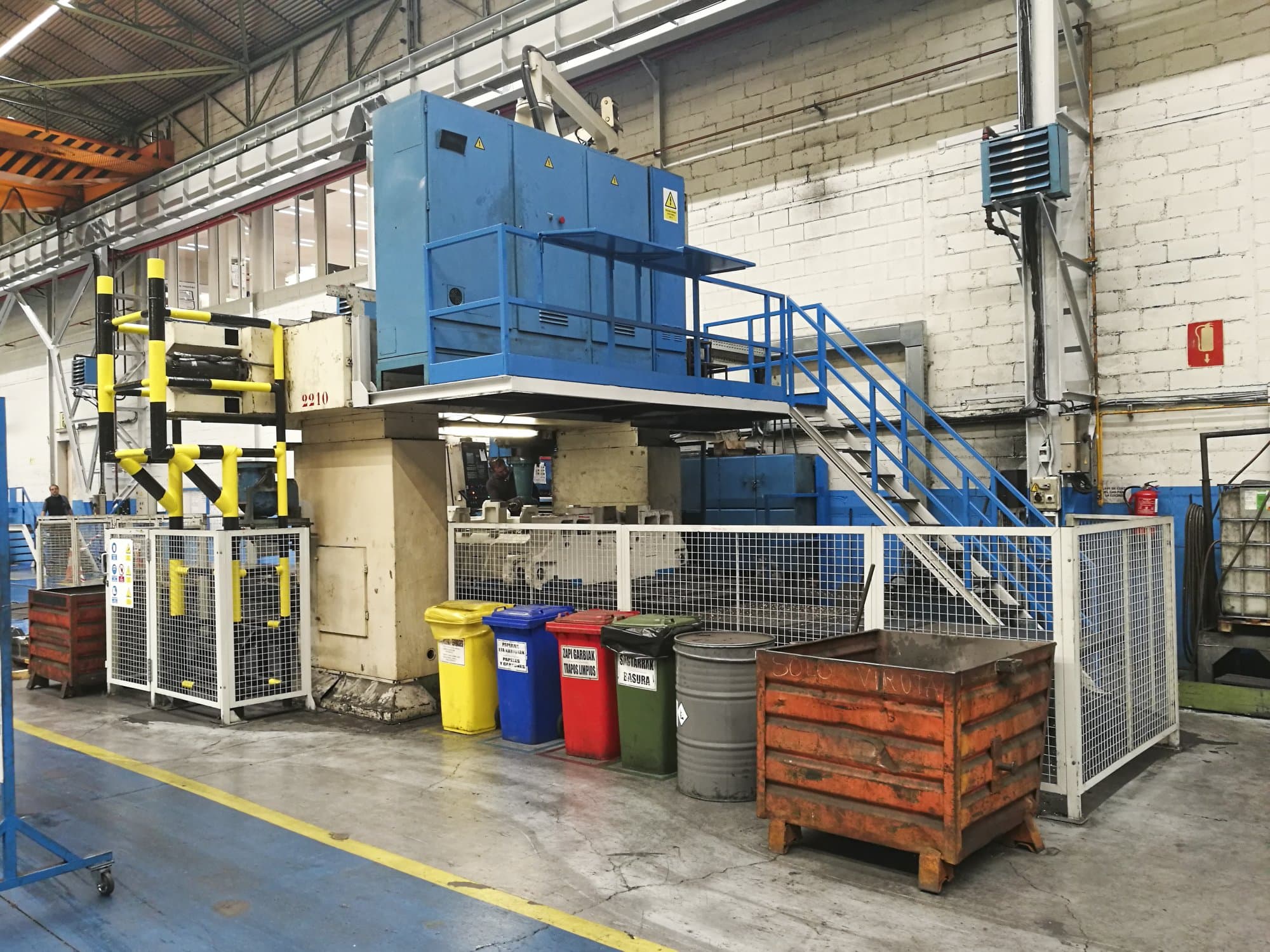

DYE FPF-2-C-N/C Milling Machine

Show in original language

This DYE FPF-2-C-N/C Milling Machine was manufactured in 1984 and has a working history of approximately 65000 production hours since then. This robust machine operates with a NUM 760 Control unit and underwent a thorough maintenance in the past. Furthermore, this DYE FPF-2-C-N/C offers all the advantages of a bridge milling machine.

Overview

brand: DYE
year: 1984
MODEL: FPF-2-C-N/C
production hours: 65000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - DYE FPF-2-C-N/C

General Data

Measurements width: 13000 mm
Measurements depth: 6300 mm
Measurements height: 5600 mm

Movement

X-AXIS Movement: 4500 mm
X-AXIS Feed Force: 32 Nw/m
Y-AXIS Movement: 2600 mm
Y-AXIS Feed Force: 32 Nw/m
Z-AXIS Movement: 1000 mm
Z-AXIS Feed Force: 32 Nw/m

Workpiece

Workpiece weight: 27000 kg

Table

Outer length: 4500 mm
Outer width: 2000 mm
Number of tslots: 13
Distance between: 150 mm
Min distance between vertical spindle and table: 200 mm
Max distance between vertical spindle and table: 1300 mm

Media

Main electronic connection: 380 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
