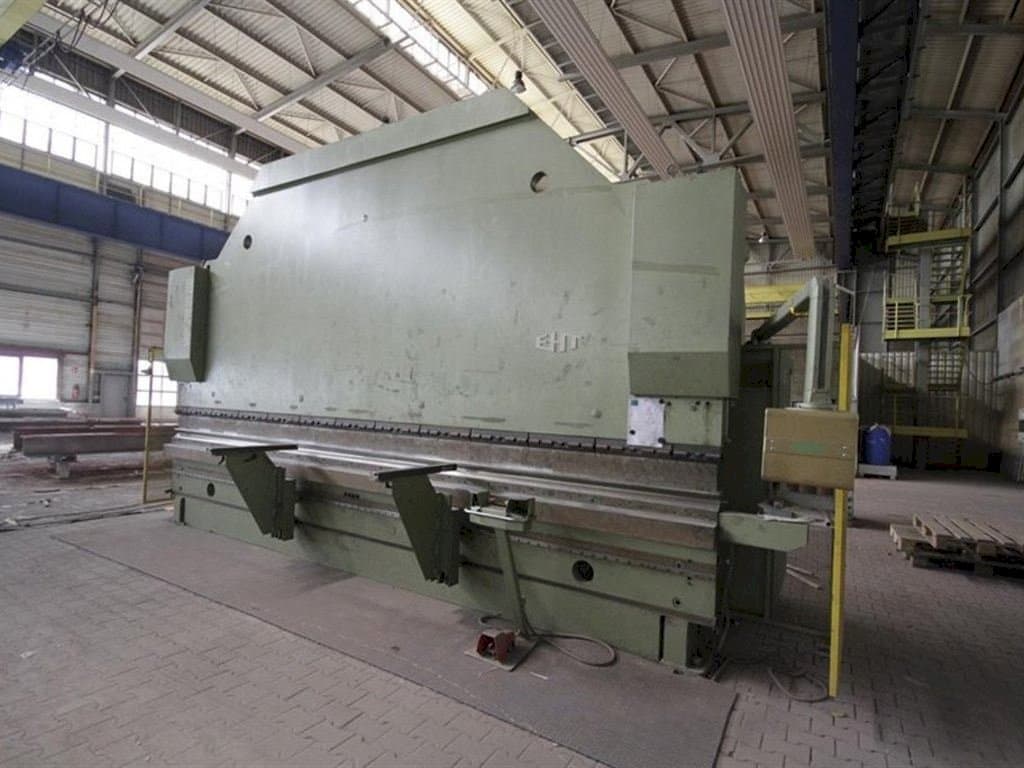

Right side view of EHT Variopress 250 60 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

EHT Variopress 250 60

Photo Gallery

EHT - Variopress 250 60DE-BEN-EHT-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
EHT Variopress 250 60 bending machine

Show in original language

This Hydraulic press brake EHT Variopress 250-60 with a controlled rear length stop system was built in the year 1998. It is equipped with a Cybelec DNC70 control unit. The machine has a pressing force of 2500 kN and a bending length of 6050 mm.

Overview

brand: EHT
year: 1998
MODEL: Variopress 250 60
application type: Bending
Location: Germany
machine type: Press Brake
control unit brand: CYBELEC

Technical Information - EHT Variopress 250 60

General Data

Measurements width: 8400 mm
Measurements depth: 3900 mm
Measurements height: total height above floor: 4070 mm, total depth under floor: 950 mm
Machine weight: 42800 kg

Control Unit

Model: DNC70
Brand: CYBELEC

Main drive

Pressing force: 2500 kn
Bending length: 6050 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between machine uprights: 5550 mm
- - Column projection: 350 mm
- - Ram stroke: 270 mm
- - Distance between table and ram: min. 360 mm to max. 630 mm
- - Stroke speed: idle max. 100 mm/s, press stroke max. 8 mm/s, retract max. 100 mm/s
- - Column width: 5550 mm
Qualitative Machine Benefits:
- - Hydraulic press brake eht variopress 250-60 with controlled rear length stop system
- - The eht press brake has a foundation for the lower beam due to the high power and bending width of 6000 mm.
- - The press brake is ready for demonstration and in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
