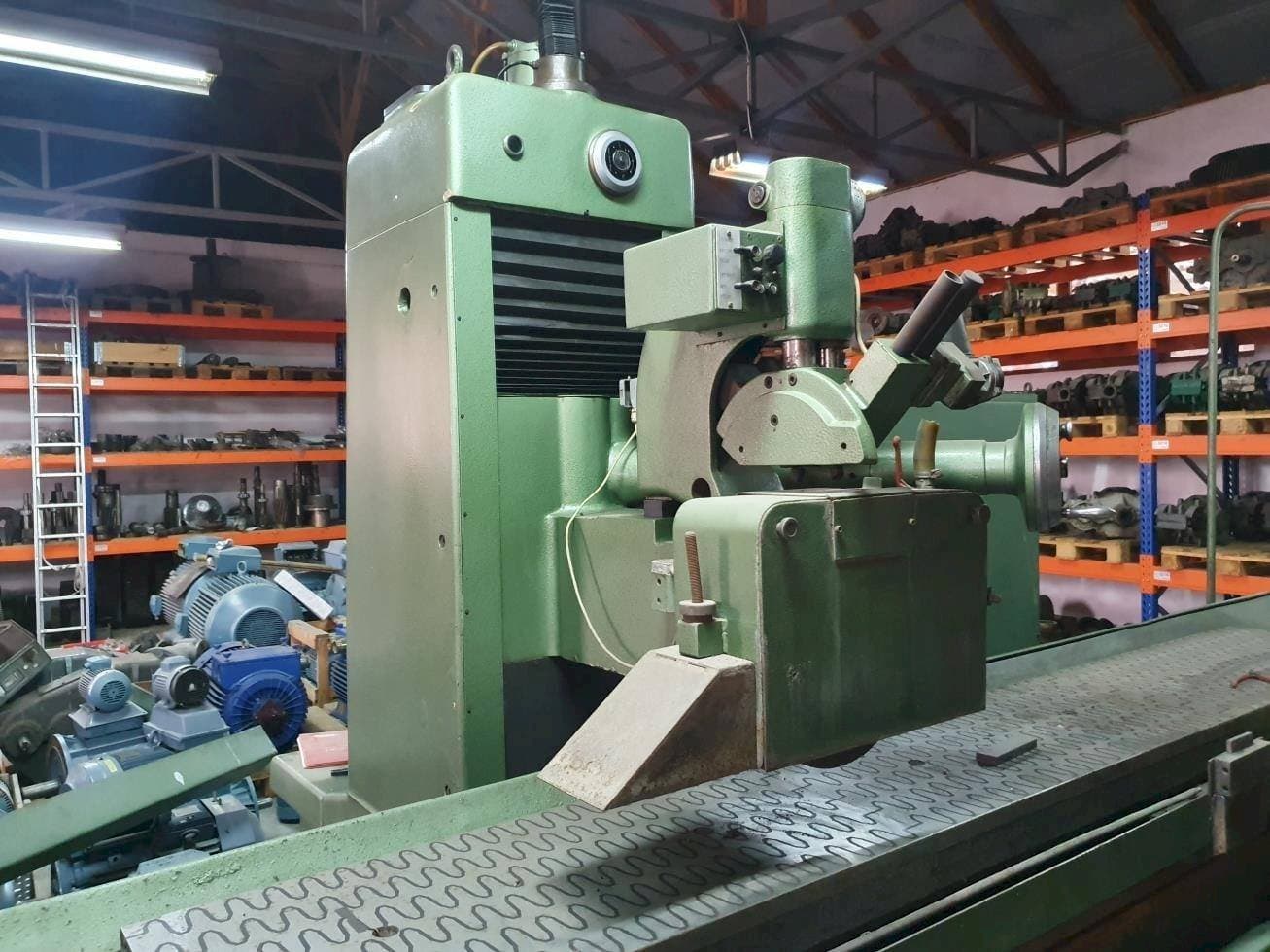

ELB - SCHLIFF SWBD-30 VA IIPL-GRI-ELB-1970-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Electromagnetic table dimensions (w x l): 450 x 3000 mm
  • - Max grinding length: 3000 mm
  • - Max grinding width: 500 mm
  • - Max grinding height with new grinding wheel: 450 mm
  • - Max grinding height with worn grinding wheel: 540 mm
  • - Area of electromagnetic clamping plates: 1000 x 450 mm
  • - Number of electromagnetic clamping plates: 3 pcs.
  • - Dimensions of grinding wheels: ⌀ 450 x 203 x 80 mm
  • - Vertical travel of headstock slide: 465 mm
  • - Horizontal travel of headstock column slide: 500 mm
• Qualitative Machine Benefits:
  • - Cross travel of headstock slide: 500 mm
  • - Longitudinal travel of table: 3000 mm
  • - Number of t-slots: 3
  • - T-slot spacing: 125 mm, width of t-slots: 16h7
  • - Electro-automatic magnetic pole switch in electromagnetic plates
  • - Arbor for balancing grinding wheels
  • - Holder for grinding wheels
  • - Thermoregulation of coolant and lubricating oil
  • - Pump capacity for cooling: 100 l/min
  • - Swing fields p=24 mm
