Elumatec - SBZ 122/64LU-MIL-ELU-2009-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Elumatec SBZ 122/64 Vertical Machining Center

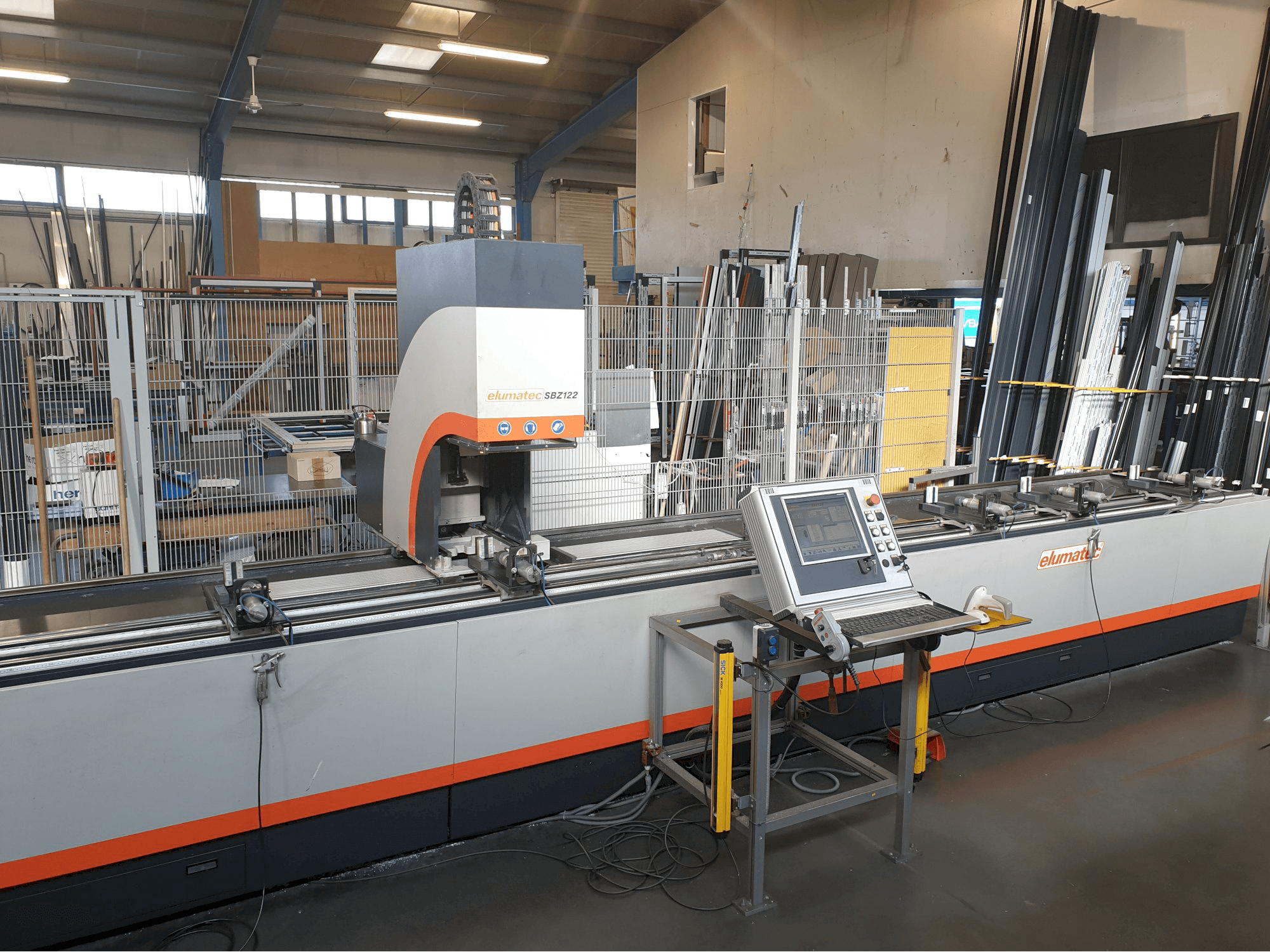

This Elumatec SBZ 122/64 Vertical Machining Center was made in 2009 in Germany and counts with a production time of 2690 working hours since then. Operated with a EluCad Control unit, this machine stands out for its two working zones incorporating an automatic clamp position movement and a power-torque cutting spindle. It counts with a long table for extra long profiles on five sides, capable of working with material like aluminum up to 4 mm of thickness. The machine presents perfect conditions, as it has been given maintenance by Elumatec itself.
Overview
- brand: Elumatec
- year: 2009
- MODEL: SBZ 122/64
- production hours: 2690
- application type: Milling
- Location: Luxembourg
- machine type: Vertical Machining Centre
Technical Information - Elumatec SBZ 122/64
Dimensions
- Machine Depth: 3400 mm
- Machine Height: 2560 mm
- Machine Weight: 3400 kg
- Table Length: 6700 mm
Movement
- X-axis Travel: 6700 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 280 mm
Technical Specification
- Max. Tool Weight: 4 kg
- Number of Tools: 10
- Spindle Speed: 24000 RPM
- Through-spindle Coolant: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
