➤ Used Elumatec SBZ 150 For Sale | gindumac.com

Show in original language

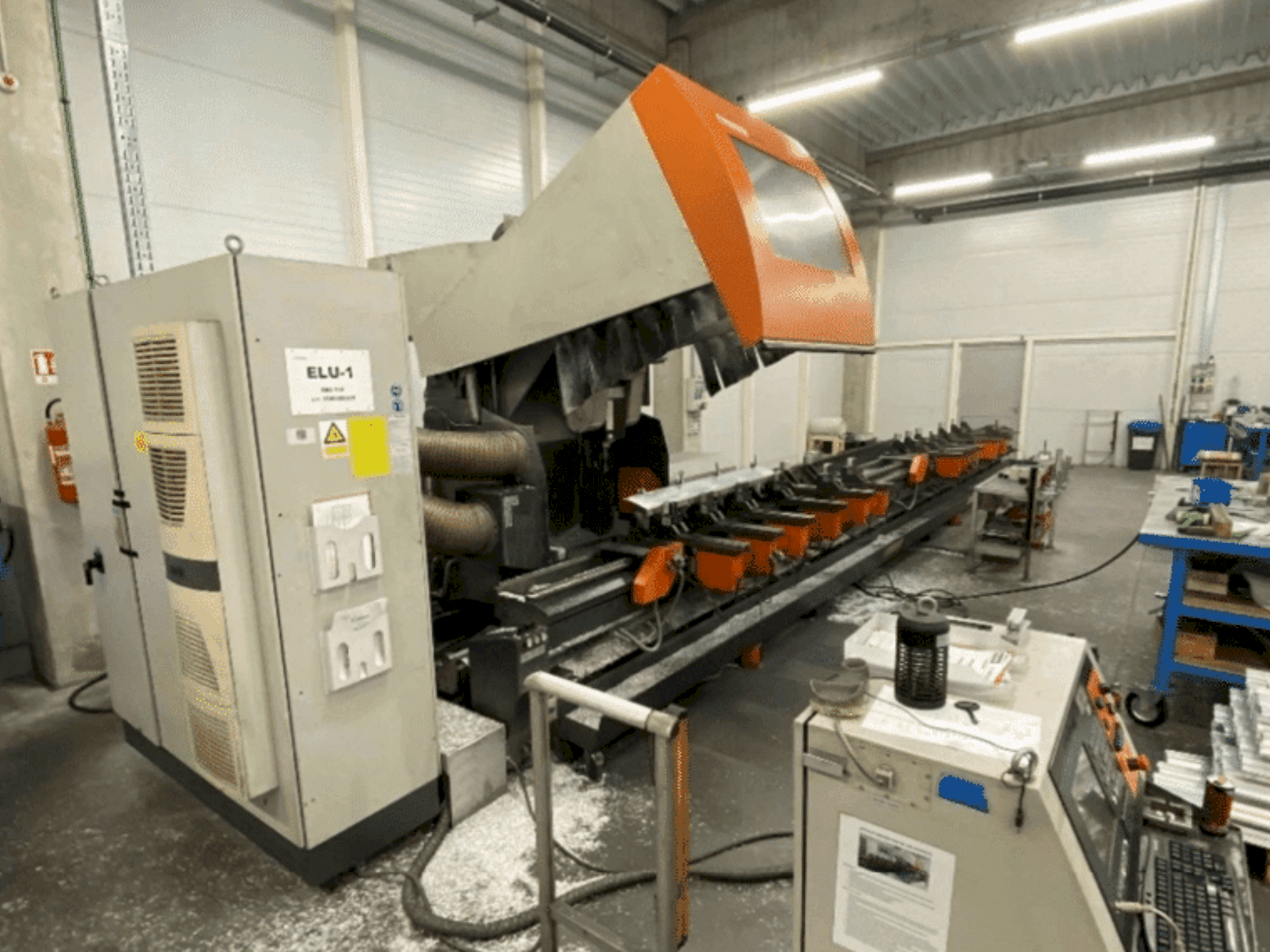

This 5-axis Elumatec SBZ 150 was manufactured in 2004. It features a CNC profile machining center with a maximum machining length of 9,220 mm and a spindle speed of 34,000 rpm. The machine includes a tool magazine with standard and special tools, and supports 6-sided machining with optional angle head. It's dismantled and ready for delivery. If you are looking to get high-quality milling capabilities consider the Elumatec SBZ 150 machine we have for sale. Contact us for more information.

Overview

brand: Elumatec
year: 2004
MODEL: SBZ 150
production hours: 0
application type: Other Machine Tools
Location: Slovenia
machine type: Machine Tool

Technical Information - Elumatec SBZ 150

Main drive

Spindle speed range: 34000 1/MIN
Spindle motor power: 15 kW
Number of axis: 5

Movement

X-AXIS Movement: 9500 mm
X-AXIS Rapid traverse: 70 m/min
Y-AXIS Movement: 1000 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 630 mm
Z-AXIS Rapid traverse: 40 m/min

Tools

Type of tool holder: HSK-63F

Media

Chip conveyor: Yes

Additional equipment

- 2-zone pendulum operation
- Angle milling head for bottom-side machining (optional)
- Automatic length measurement
- Barcode scanner
- Label printer
- Cycle time monitoring
- Tool holders, collets, saw blades, tools included
- eluCad (office software package for production optimization)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining length without profile end machining: 9220 mm
- - Max. Machining length with profile end machining: 8900 mm
- - A-axis swivel range: ±110°, freely programmable in 0. 1° steps
- - C-axis rotation range: ±182°, freely programmable in 0. 1° steps
- - Max. Milling cutter diameter: 100 mm
- - Max. Disc milling cutter diameter: 100 mm
- - Max. Saw blade diameter: 400 mm
- - Electrical connection: 400 v, 3-phase, 50 hz, 80 a
- - Compressed air consumption: approx. 200 l/min (with spray mist system)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
