➤ Used EMCO Hyperturn 665MC Plus For Sale | gindumac.com

Show in original language

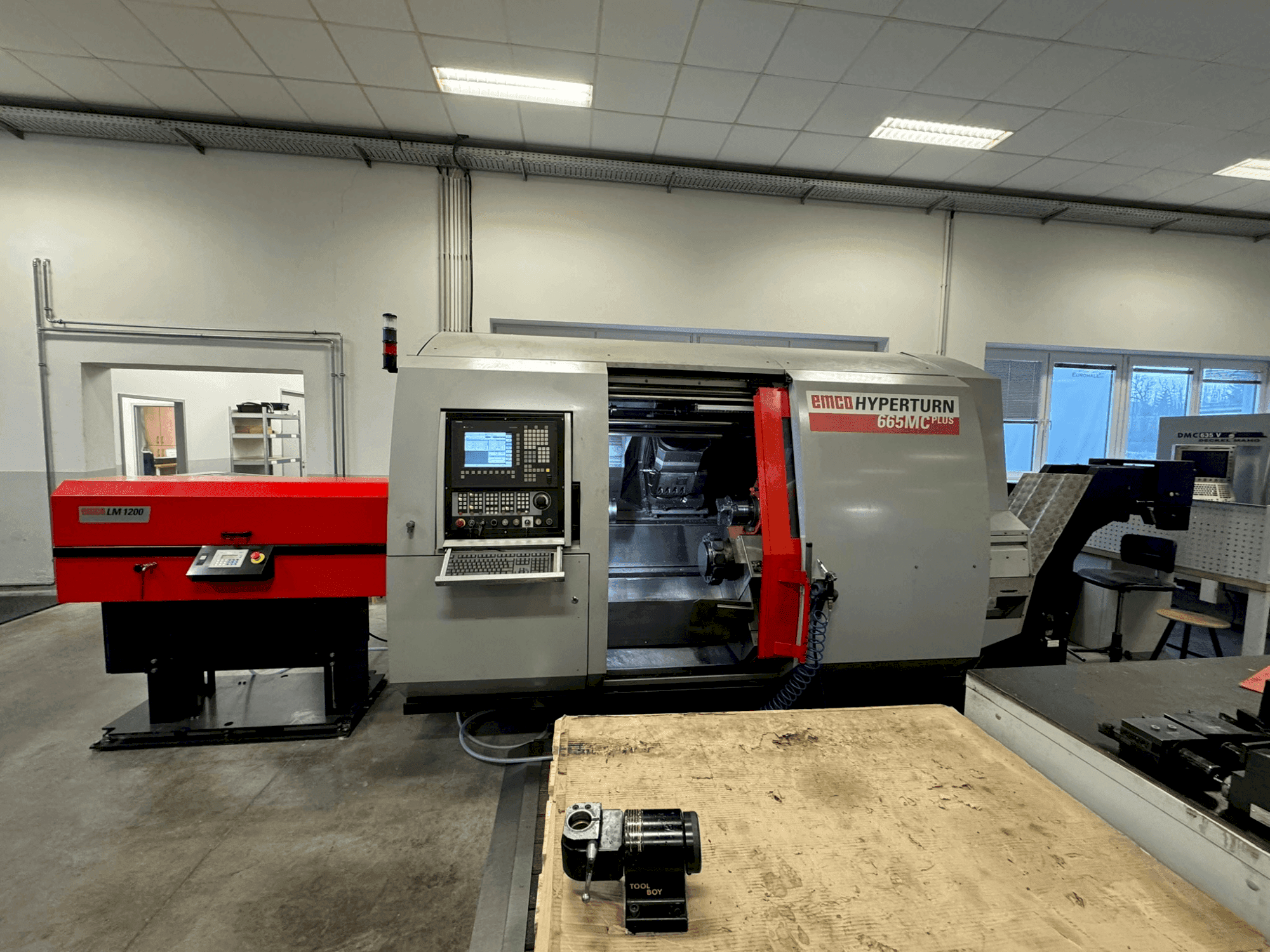

This 6-axis EMCO Hyperturn 665MC Plus turn-mill centre was manufactured in 2008. It features a multi-axis CNC system with Y-axis and B-axis for complete machining of turned and milled parts. Equipped with integrated spindle motors on both main and counter spindles, it offers a spindle speed up to 5000 min-1 for the main and 7000 min-1 for the counter spindle. Includes a 24-position tool magazine and SINUMERIK 840D control. If you are looking to get high quality turning and milling capabilities consider the EMCO Hyperturn 665MC Plus machine we have for sale. Contact us for more information about this machine.

Overview

brand: EMCO
year: 2008
MODEL: Hyperturn 665MC Plus
production hours: 18000
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - EMCO Hyperturn 665MC Plus

Control Unit

Brand: SIEMENS

Controller

Brand: SINUMERIK 840D

Main drive

Spindle speed range: 0-5000 rpm 1/MIN
Spindle motor power: 29 kW
Number of axis: 6

Additional Information

Additional equipment

Tool turret: 12-position tool VDI 30 radial with directional logic for up to 12 driven tool stations
B-PowerMill: Motorised milling spindle with 24-position tool magazine, 210° swivelling range
Optional tool package: Includes stationary and driven tool holders, collet chuck holders, reducing sleeves, and operating spanners
Hollow clamping cylinder with draw tube / Part ejector and flushing through the counter spindle / Part pick-up device for finished parts
Part pick-up device for finished parts / Coolant device in the chip conveyor / High-pressure pump (14 bar) and fine filter
Flushing pumps (3.7 bar) / Control cabinet air conditioning unit / Electrostatic oil mist separator
Hydraulic unit / Machine light / Interface for foot switch / Signal lamp
Documentation including handwheel, PC keyboard, network preparation, tool monitoring, turning window, cleaning gun
Clamping device for main spindle: Hainbuch BZI 80 centre pull /

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
