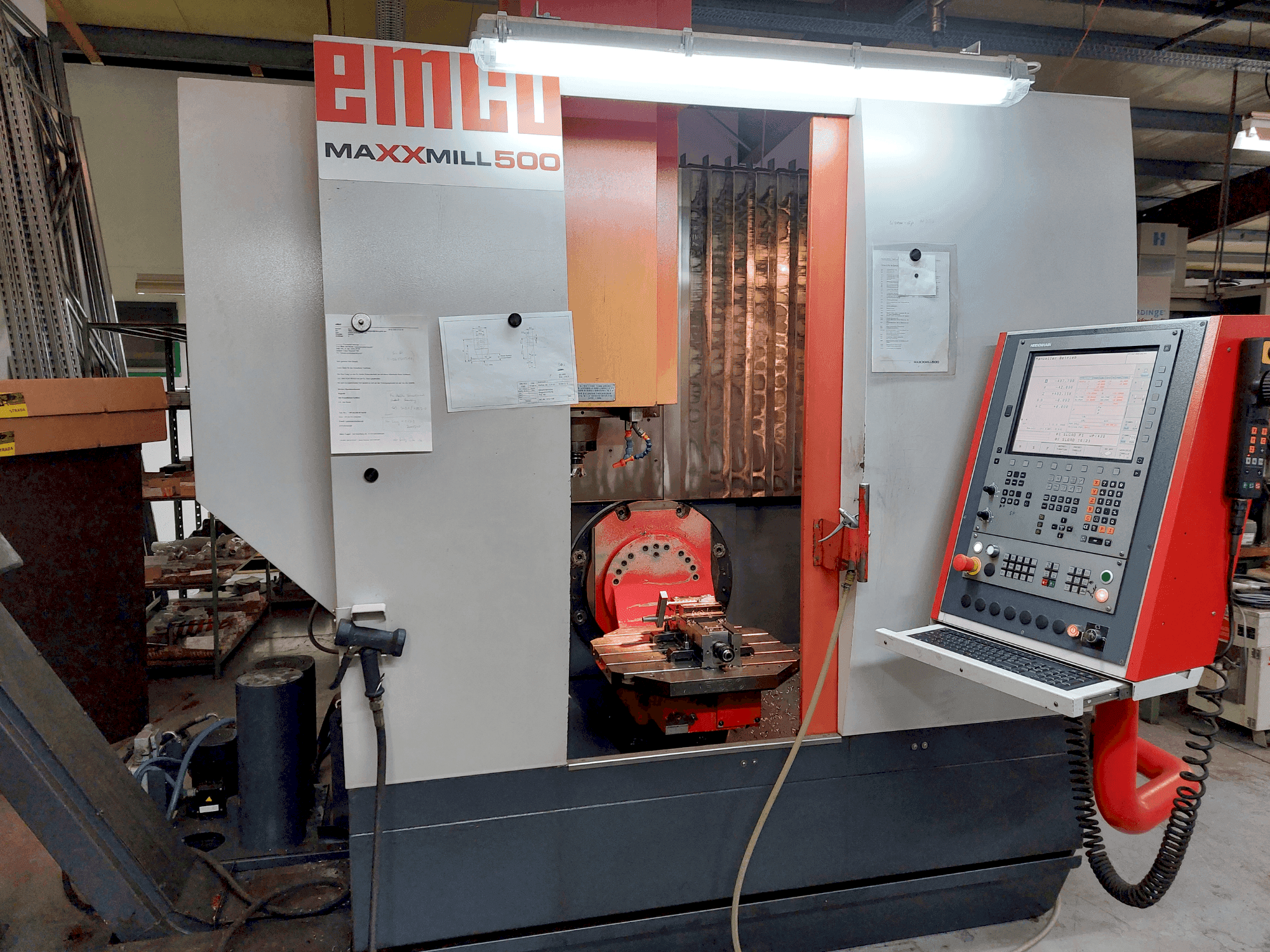

This 5-axis EMCO Maxxmill 500U vertical machining centre was manufactured in 2011. It features a robust 30-position tool changer, a powerful 15 kW spindle, and a maximum spindle speed of 10,000 rpm. The machine offers a working range of 650 mm (X), 550 mm (Y), and 500 mm (Z), with rapid traverse speeds up to 30 m/min. Ideal for complex and precise machining tasks. Reach out for further details regarding this vertical machining centre.
Overview
- brand: EMCO
- year: 2011
- MODEL: Maxxmill 500U
- production hours: 8500
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - EMCO Maxxmill 500U
Dimensions
- Machine Depth: 2880 mm
- Machine Height: 3000 mm
- Machine Weight: 9200 kg
- Table Length: 600 mm
- Table Load: 250 kg
- Table Width: 600 mm
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Tank Capacity: 250 l
- Flow Rate at 2 bar: 40 l/min
- Pneumatics: Supply Pressure: 6 bar
- Pneumatics: Supply Volume: 200 l/min
- Lubrication System: Main Spindle: Grease lubrication
- Lubrication System: Guideways and Feed Spindles: Oil central lubrication
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
