Emmegi - Quadra L1CH-MIL-EMM-2013-00001

Name: Emmegi Quadra L1
Brand: Emmegi
SKU: CH-MIL-EMM-2013-00001
Price: 18279400 INR
Availability: InStock

Rs. 18,279,400

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Emmegi Quadra L1 For Sale | gindumac.com

Show in original language

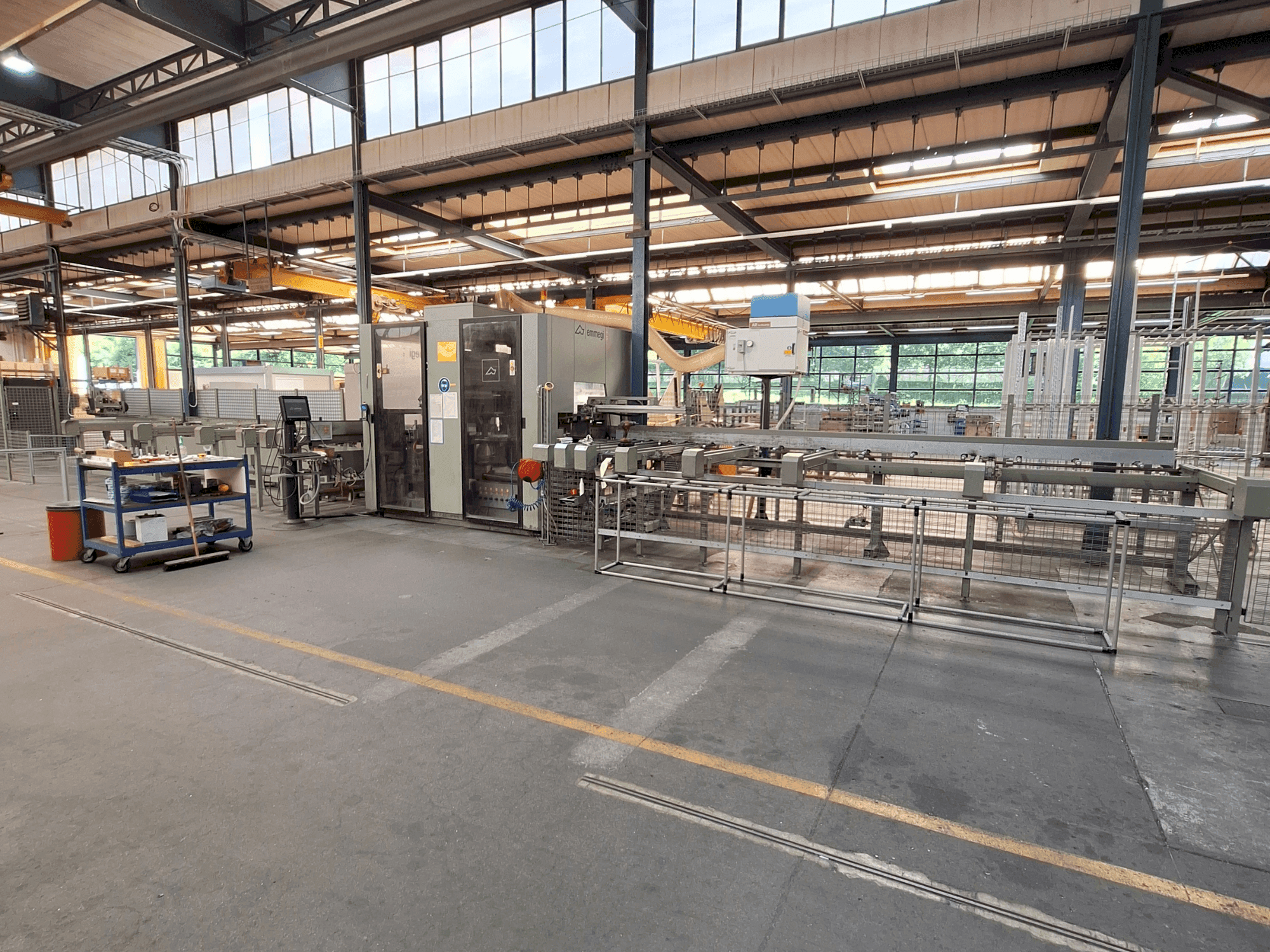

This 12-axis Emmegi Quadra L1 was manufactured in 2013, featuring a comprehensive range of movements with X, Y, Z, U, V, W, H, P, Q, B, C, and CI axes, and high-speed travel up to 120 m/min. It includes a milling unit with 6 air-cooled electrospindles, a cutting unit with a 600 mm saw blade, and a robust monoblock frame. Ideal for complex milling, drilling, and cutting tasks. Contact us for more information about this machine.

Overview

brand: Emmegi
year: 2013
MODEL: Quadra L1
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre
Available from: 01/01/2026

Technical Information - Emmegi Quadra L1

General Data

Measurements width: 3500 mm
Measurements depth: 22000 mm
Machine weight: 3200 kg

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 12

Tools

Type of tool holder: ER 32

Additional equipment

- Pressure spraying system
- Automatic and motor-driven clamping systems
- Monoblock machine frame made of electro-welded and normalized steel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Milling unit with 6 air-cooled electrospindles
- - Max. Power: 5. 6 kw
- - Functions: milling, drilling, and cutting

Extra information

- Movement Axes: 12 X-AXIS Travel: 320 mm, Speed: 30 m/min, Acceleration: 1.5 m/sec² Y-AXIS Travel: 402 mm, Speed: 30 m/min, Acceleration: 5 m/sec² Z-AXIS Travel: 395 mm, Speed: 30 m/min, Acceleration: 5 m/sec² A-AXIS Rotation: 0° ÷ 360°, Speed: 6000°/min U-AXIS Travel: 9660 mm, Speed: 120 m/min, Acceleration: 7.5 m/sec² V-AXIS Travel: 138 mm, Speed: 9 m/min, Acceleration: 0.36 m/sec² W-AXIS Travel: 215 mm, Speed: 9 m/min, Acceleration: 0.36 m/sec² H-AXIS Travel: 627 mm, Speed: 24 m/min, Acceleration: 2.5 m/sec² P-AXIS Travel: 880 mm, Speed: 30 m/min, Acceleration: 5 m/sec² Q-AXIS Rotation: 298°, Speed: 6600°/min B-AXIS Travel: 790 mm, Speed: 60 m/min C-AXIS Travel: 47 mm, Speed: 9 m/min Operation and Control Control cabinet with cooling system CNC-PC with Celeron M 1.5 GHz processor 15" Touch Screen Display 1 GB RAM, 4 GB Compact Flash memory 1 USB port, RJ45 network card

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
