➤ Used Emmegi Quadra For sale | gindumac.com

Show in original language

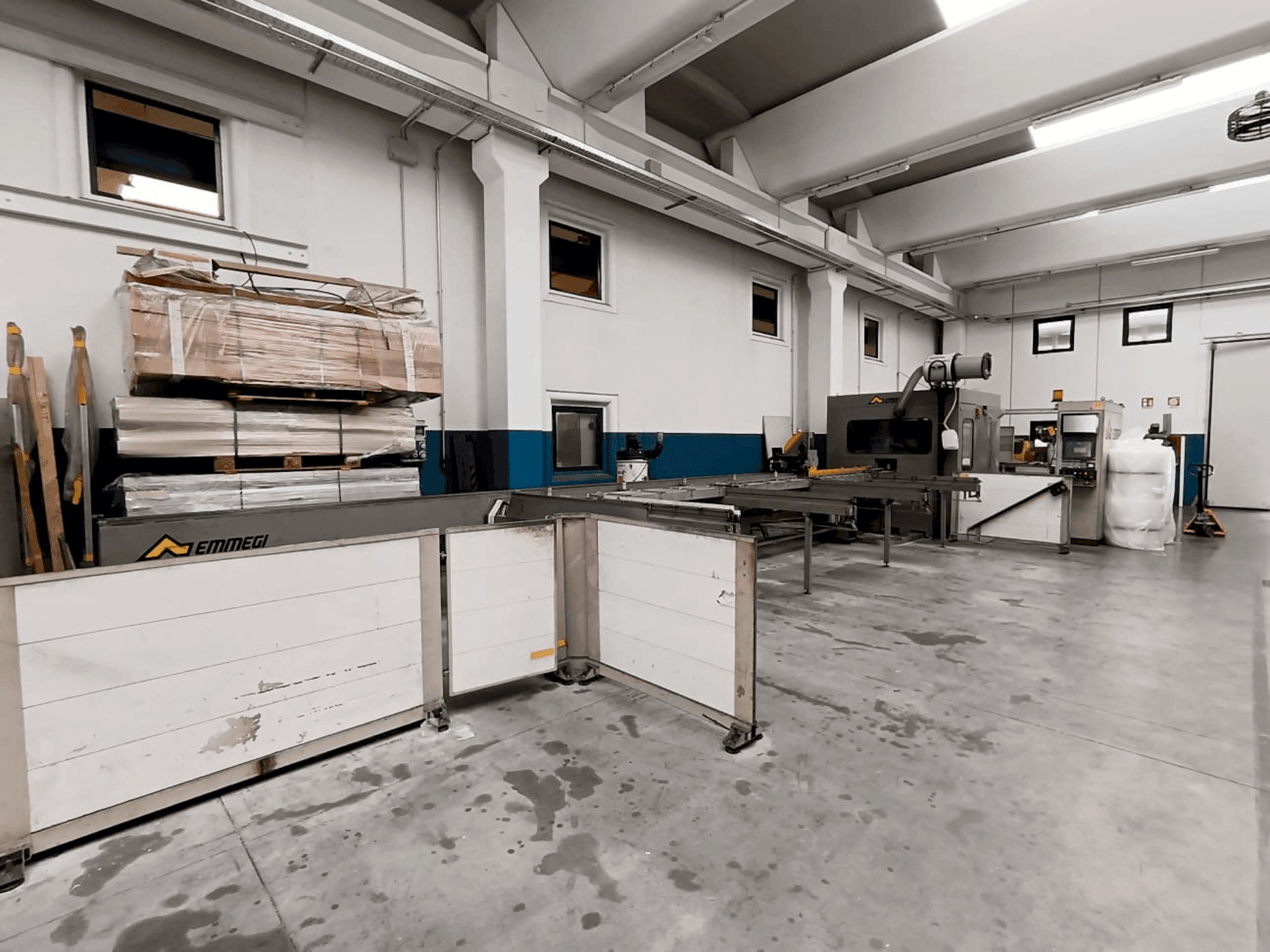

This 5-axis Emmegi Quadra was manufactured in 2005, featuring a robust ISAC SAB 9500 control unit and a high-speed 20,000rpm spindle. It can handle bars up to 7500 mm in length and has a maximum feedable weight of 500 kg. Ideal for complex machining tasks, the Emmegi Quadra machine we have for sale offers precision and versatility. Contact us for more information.

Overview

brand: Emmegi
year: 2005
MODEL: Quadra
production hours: 0
application type: Milling
Location: Italy
machine type: Universal Machining Centre

Technical Information - Emmegi Quadra

Control Unit

Model: SAB 9500

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 4,5 kW
Number of axis: 5

Movement

X-AXIS Movement: 240 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 350 mm
U-Axis Movement: 9500 mm
A-AXIS Movement: 360º MM

Workpiece

Workpiece weight: 500 kg

Additional equipment

- Max length of the feedable bars: 7500 mm
- Min length of bars that can be fed in automatic mode: 3000 x 1550 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
