Engel e-motion 200/100

Photo Gallery

Engel - e-motion 200/100DE-INJ-ENG-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

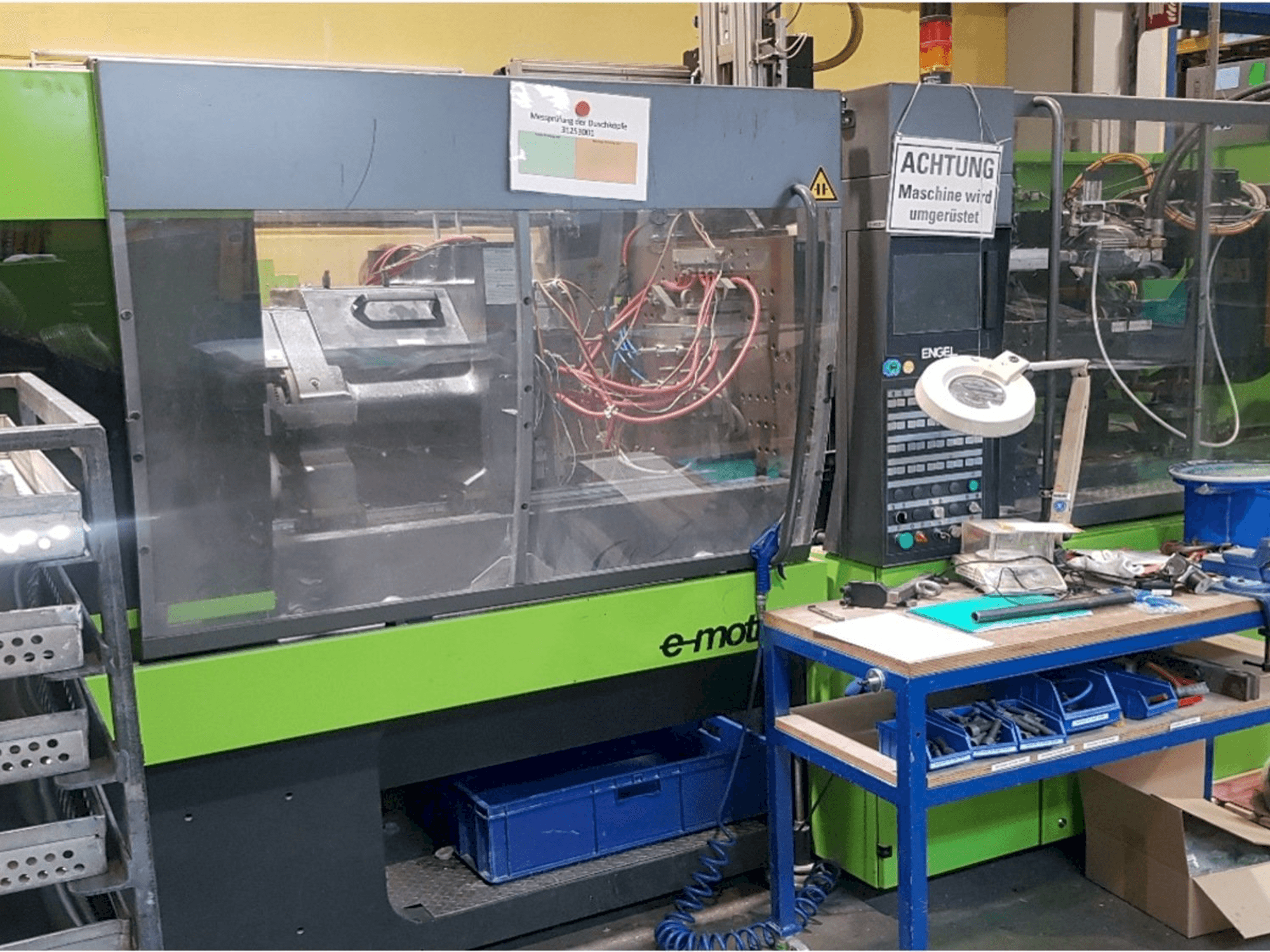

This ENGEL e-motion 200/100 injection moulding machine was built in 2007 in Austria. It has a total of 38913 production hours. It has a clamping force of 1000 kN, and a screw diameter of 25 mm. This machine is operated through a control unit of the same brand. It includes a brush machine from K+B, 2 compounds batcher Elmet, a cart for barrel and a vacuum pump 2 pieces.

Overview

brand: Engel
year: 2007
MODEL: e-motion 200/100
production hours: 38913
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel e-motion 200/100

General Data

Measurements width: 2200 mm
Measurements depth: 6900 mm
Measurements height: 4000 mm
Machine weight: 9100 Kg

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 25 mm
Stroke volume: 59 CM³
Injection pressure: 2400 bar
Plasticizing rate max.: 109 cm3/s
Screw speed: max 300 r/min
Nozzle pressure: 28 kN

Clamping unit

Clamping force: 1000 kN
Opening stroke: 430 mm
Ejector stroke: 130 mm
Ejector force for / back: 23 kN

Media

Power consumption: 60 kW

Additional equipment

- Brush machine from K+B
- 2 compound batcher Elmet
- Cart for barrel
- Vacuum pump 2 pieces

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electrical lsr injection molding machine
- - Ce marking
- - Nozzle stroke 225 mm
Qualitative Machine Benefits:
- - Technical documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
