➤ Used ENGEL e-motion 2440/380 T - Injection Moulder

Show in original language

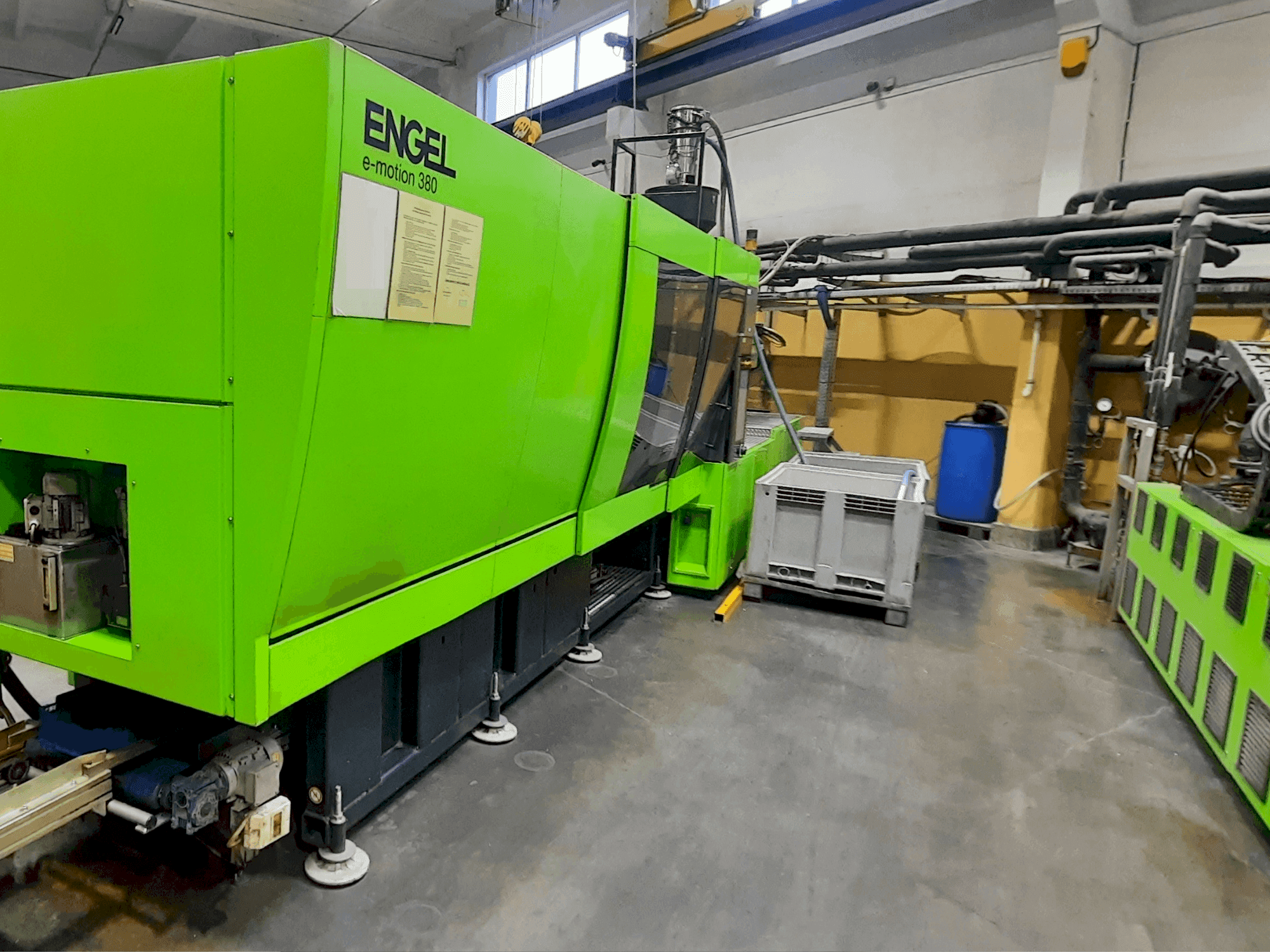

This ENGEL e-motion 2440/380 T Injection moulding machine was manufactured in the year 2017 in Austria and has 50249 production hours. It is equipped with a Engel CC300 control unit. The machine is all-electric and energy efficient. It has fast, dynamic, and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings. The machine is still at the production and can be checked upon request. Full service documentation and manuals.

Overview

brand: Engel
year: 2017
MODEL: e-motion 2440/380 T
production hours: 50249
application type: Injection Moulding
Location: Poland
machine type: Electrical Injection Moulding Machine
availability: Immediately
control unit brand: ENGEL

Technical Information - Engel e-motion 2440/380 T

General Data

Machine weight: 22200 kg

Control Unit

Model: CC300
Brand: ENGEL

Injection Unit

Nozzle pressure: 500 mm

Clamping unit

Clamping force: 3800 kN
Opening stroke: 700 mm
Mould height min: 300 mm
Mould height max: 750 mm
Size of mold platens: 1140x1140 mm
Ejector force for / back: 120 kN

Media

Main electronic connection: 3x400V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - S8 barrier screw, geometry g16 r with r-mixing head - diameter 70 mm - screw length l/d 24.
- - Direct drive ejector bg4 max force: 120 kn.
- - Platens with locating diameter in standard execution euromap - centering 160 mm.
Qualitative Machine Benefits:
- - All-electric and energy efficient
- - Fast, dynamic, and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings.
- - Maximum energy efficiency due to the consistent use of servo-electric drive technology with maximum effectiveness.
- - Highly efficient injection unit ensures ultra-fast injection.
- - The machine is still at the production and can be checked upon request. Full service documentation and manuals.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
