ENGEL e-Victory 200/50 Injection Moulding Machine

Show in original language

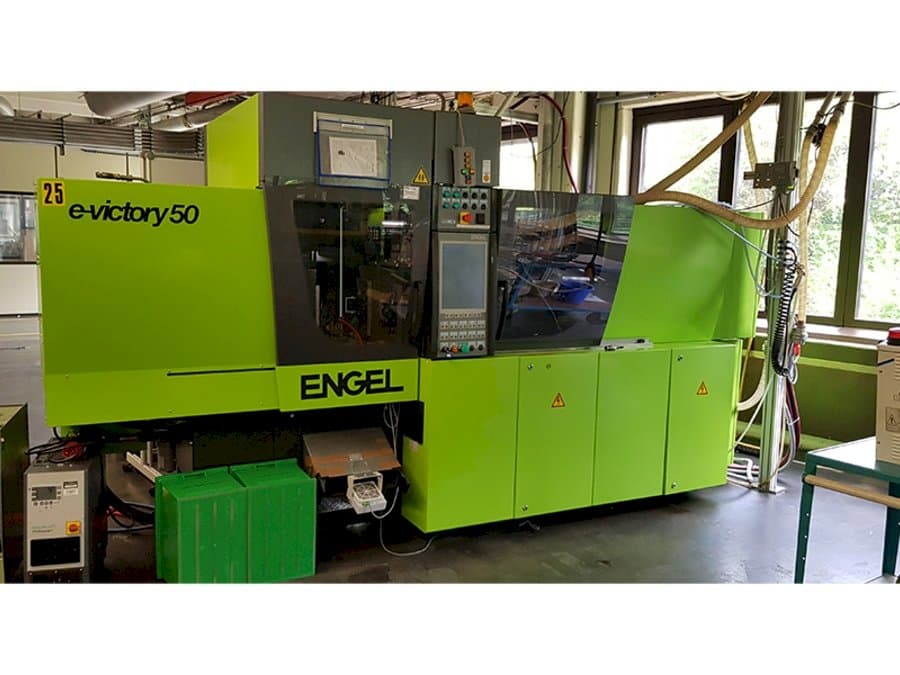

This ENGEL e-Victory 200/50 Injection Moulding Machine was manufactured in the year 2008. It shows a production record of 22628 hours. The machine is capable of operating with a clamping force 500 kN, mould height min. 200 mm and a screw diameter 22 mm.

Overview

brand: Engel
year: 2008
MODEL: e-Victory 200/50
production hours: 22628
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Engel e-Victory 200/50

General Data

Measurements width: 3370 mm
Measurements height: 1780 mm
Machine weight: 4000 KG

Injection Unit

Screw diameter: 22 mm

Clamping unit

Clamping force: 500 kN
Max open daylight: 16 kN
Mould height min: 200 mm
Size of mold platens: 500 x 350 mm
Ejector stroke: 100 mm
Ejector force for / back: 14 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
