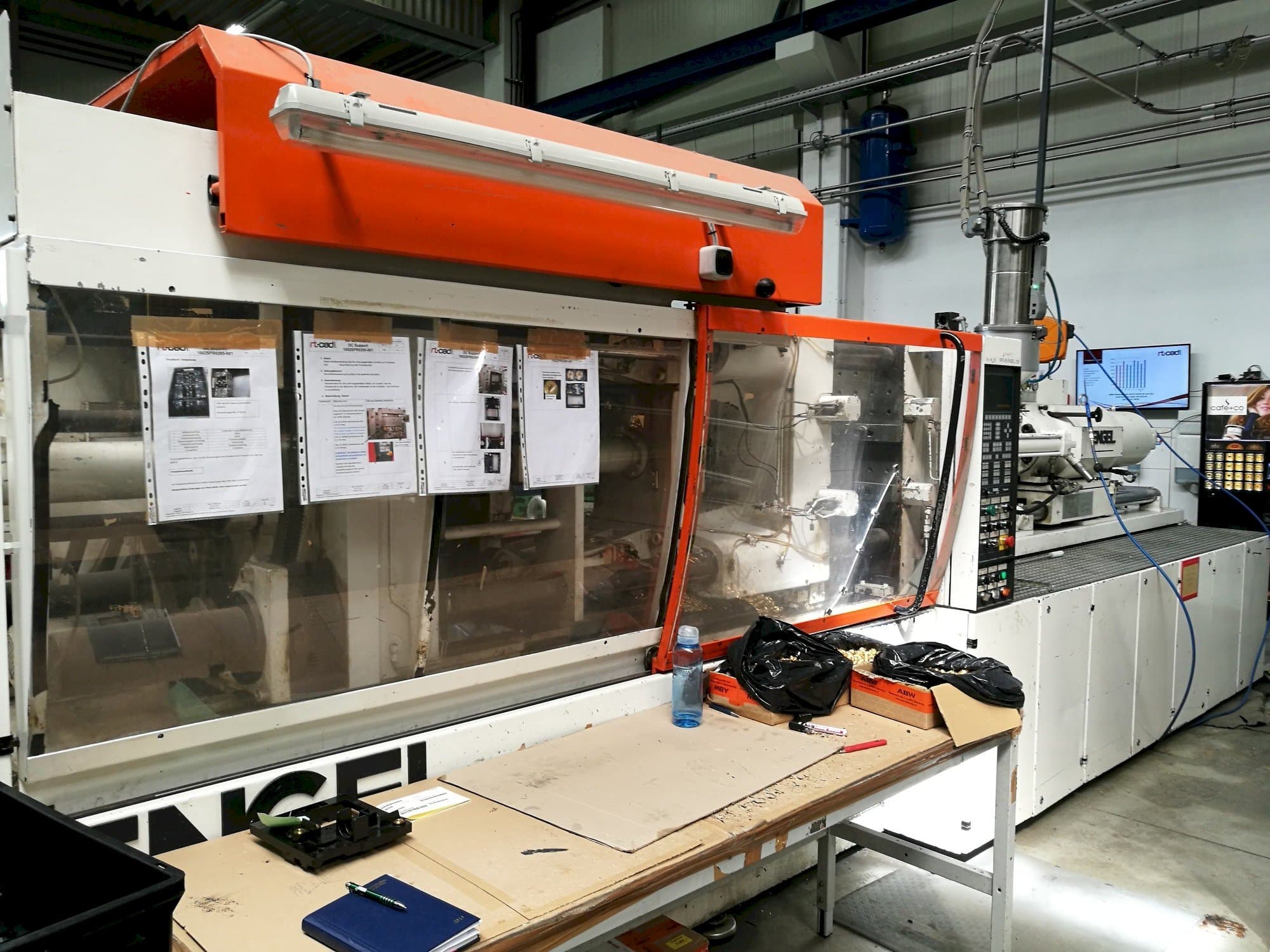

ENGEL ES 1300/225 Injection Moulding Machine

Show in original language

This ENGEL ES 1300/225 Injection Moulding Machine was made in 1991 in Austria and has been working for 66120 hours since then.Equipped with an ENGEL EC88 Control unit, this machine performs with a clamping force of 2475 kN. It stands out for its ability to work in a 2 shift process.

Overview

brand: Engel
year: 1991
MODEL: ES 1300/225
production hours: 66120
application type: Injection Moulding
Location: Austria
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel ES 1300/225

General Data

Measurements width: 6884 mm
Measurements depth: 1695 mm
Measurements height: 2310 mm
Machine weight: 11800 kg

Control Unit

Model: EC88
CNC main language: German
CNC language customizable: Yes
Brand: ENGEL

Injection Unit

Screw diameter: 60 mm
Shot weight: 661 g/PS
Stroke volume: 735 CM³
Injection pressure: 1500/1700 bar
Screw speed: 5-260 rpm
Heating capacity: 25.9 kW

Clamping unit

Clamping force: 2475 kN
Opening stroke: 510 mm
Distance between bars: 560x560 mm
Mould height min: 200 mm
Mould height max: 510 mm
Size of mold platens: 820x820 mm
Ejector stroke: 150 mm
Ejector force for / back: 61 kN

Media

Main electronic connection: 380 V
Power consumption: 45 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
