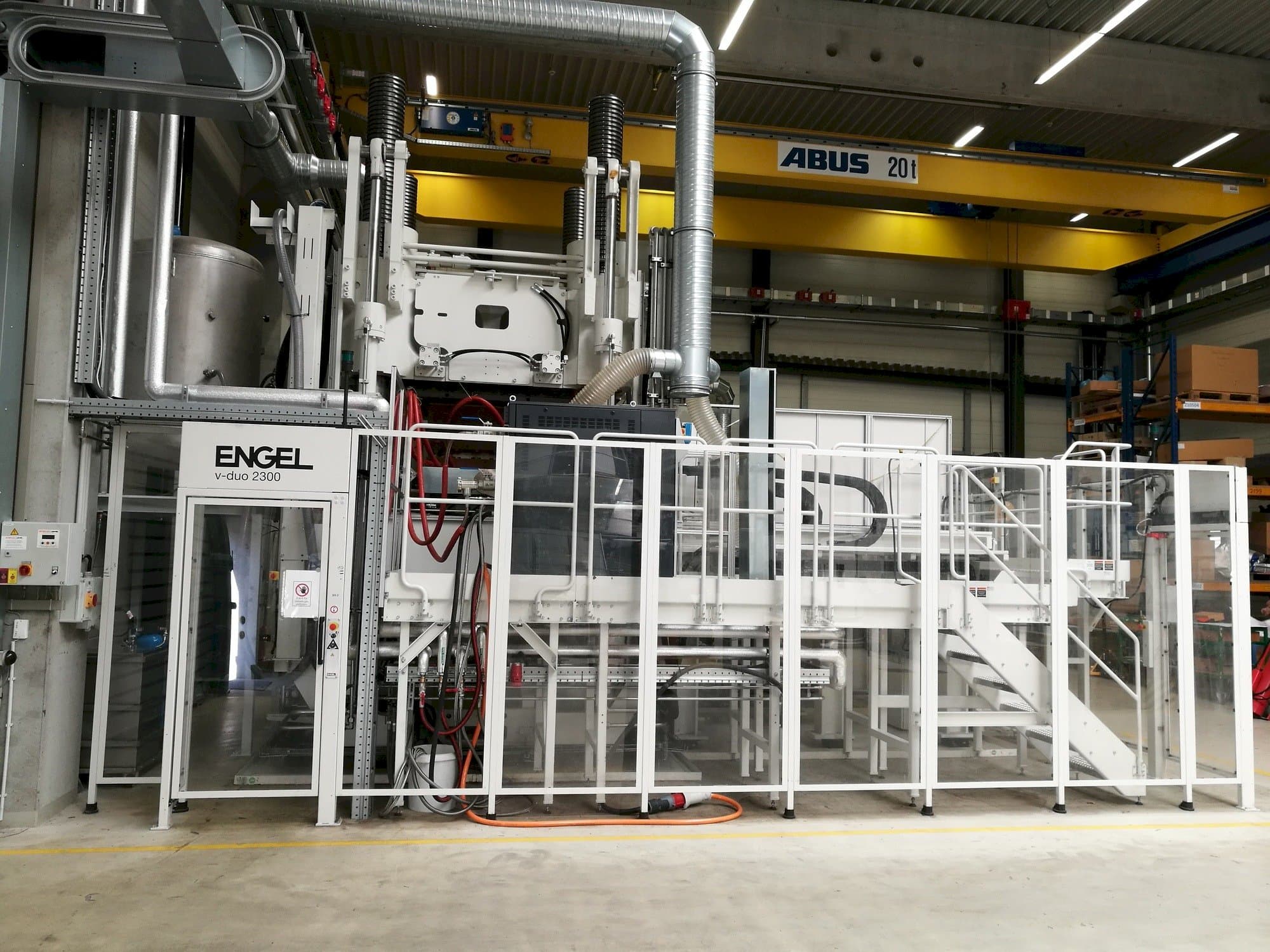

ENGEL V-Duo 2300 Injection Moulding Machine

Show in original language

This ENGEL V-Duo 2300 Injection Moulding Machine was manufactured in Austria in the year 2013. It has been working for only 1600 hours. It is equipped with a control unit of the same brand. This powerful machine incorporates a clamping force of 23000 kN. This machine comes without injection unit. During the past the machine was used for prototyping for deforming of hard mat. The vertical version of the large-scale duo machine also features a compact design with low height and weight. This ENGEL v-duo facilitates new lightweight composite process.

Overview

brand: Engel
year: 2013
MODEL: V-Duo 2300
production hours: 1600
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel V-Duo 2300

General Data

Measurements width: 11936 mm
Measurements depth: 8525 mm
Measurements height: 6702 mm
Machine weight: 114000 kg

Control Unit

Brand: ENGEL

Clamping unit

Clamping force: 23000 kN

Media

Main electronic connection: 480 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine was used for prototyping for resin mat/fiber composite deformation

Technical Machine Benefits

Travel path: 2800 mm
Travel speed shuttle: 910 mm
Engel v-duo facilitates new lightweight composite process

Extra Information

1- MACHINE COMES WITHOUT INJECTION UNIT. HOWEVER, AN INJECTION UNIT CAN BE SUPPLIED ACCORDING TO CUSTOMER REQUIREMENTS INCLUDING INSTALLATION AND ASSEMBLY WITH THE ASSOCIATED ADDITIONAL COSTS. 2- MACHINE IS IDEALLY SUITED FOR USERS FROM THE AGRICULTURAL TECHNOLOGY AND/OR TRUCK INDUSTRY. 3- Machine can be inspected any time under power in the factory.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
