ENGEL Victory 200/30 Tech US Injection Moulding Machine

Show in original language

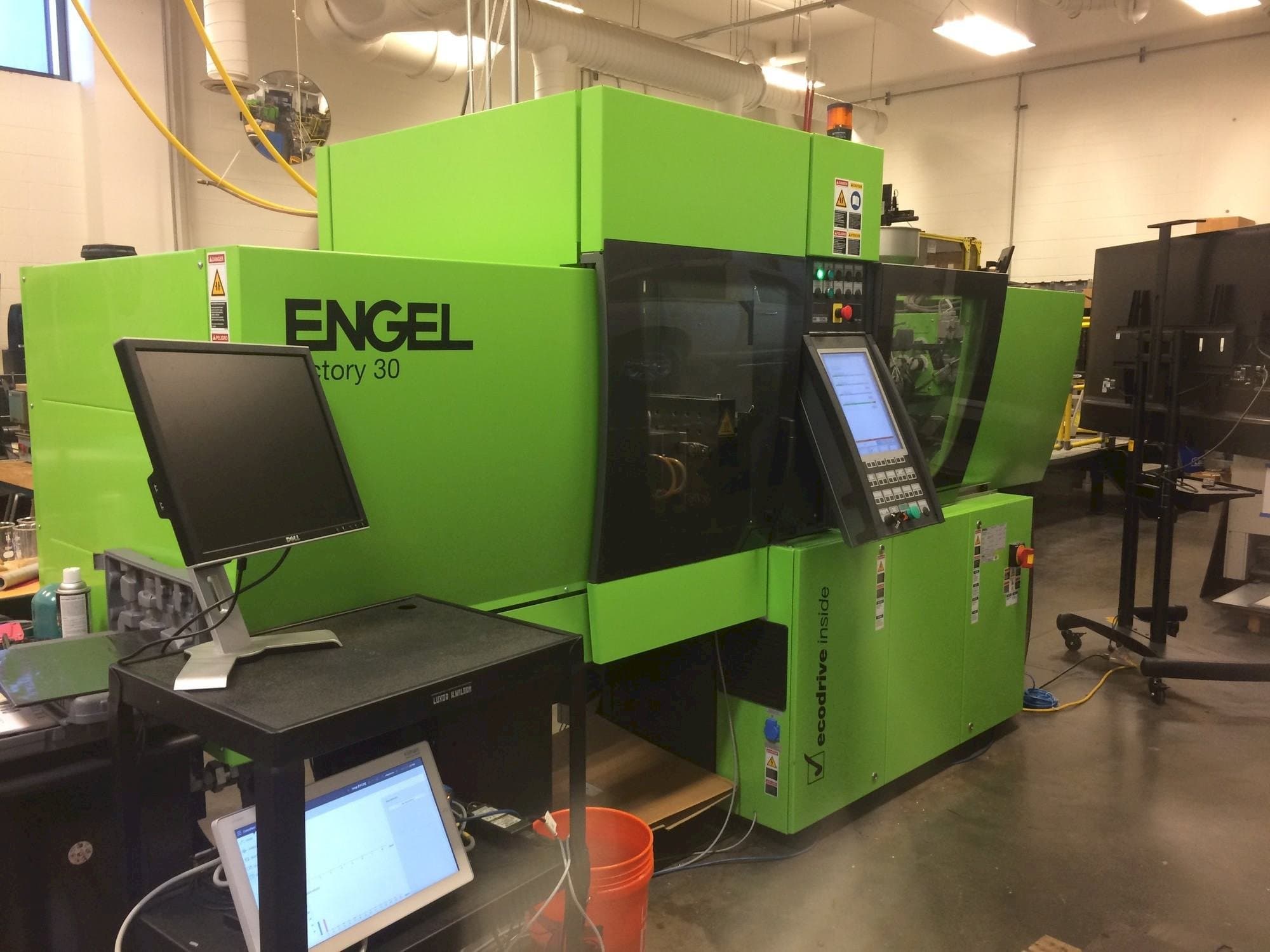

This ENGEL Victory 200/30 Tech US Injection Moulding Machine was built in Austria in 2014. It has been operative for 924 hours since then. This machine stands out for its unique tie-bar-less technology raises the efficiency and cost-effectiveness. It also has a maximum flexibility of mould dimensions. This allows for relatively large and technically complex moulds with moderate clamping forces.

Overview

brand: Engel
year: 2014
MODEL: Victory 200/30 Tech US
production hours: 924
application type: Injection Moulding
Location: United States
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel Victory 200/30 Tech US

Control Unit

Model: CC200
Interface: Windows style display with 15 inch TFT-color Touch Screen
CNC main language: ENGLISH/ SPANISH
Brand: ENGEL

Clamping unit

Clamping force: 300 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Two-piece open nozzle (with removable tip)
- - Mucell-basic package
- - Injection unit swiveling
- - Solenoid operated pneumatic valve 2/2-ways, r1/4 inch ports, located on stationary platen, for airblow only (without tubing)
- - Maximum flexibility of mould dimensions
- - Maximum platen parallelism – static and dynamic
- - No tie-bars, maximum scope
Qualitative Machine Benefits:
- - Energy efficient hydraulic system with low noise leve
- - Valves placed close to the hydraulic appliances
- - Closed-loop controlled pre-heating and cooling of oil
- - Filtration with low wear of oil
- - Excellent energy efficiency by high dynamic servo pump
- - High-speed-injection hsi by accumulator
- - Mucell-software to maintain required melt pressure permanentaly, screw position and hydraulic shut off nozzle control

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
