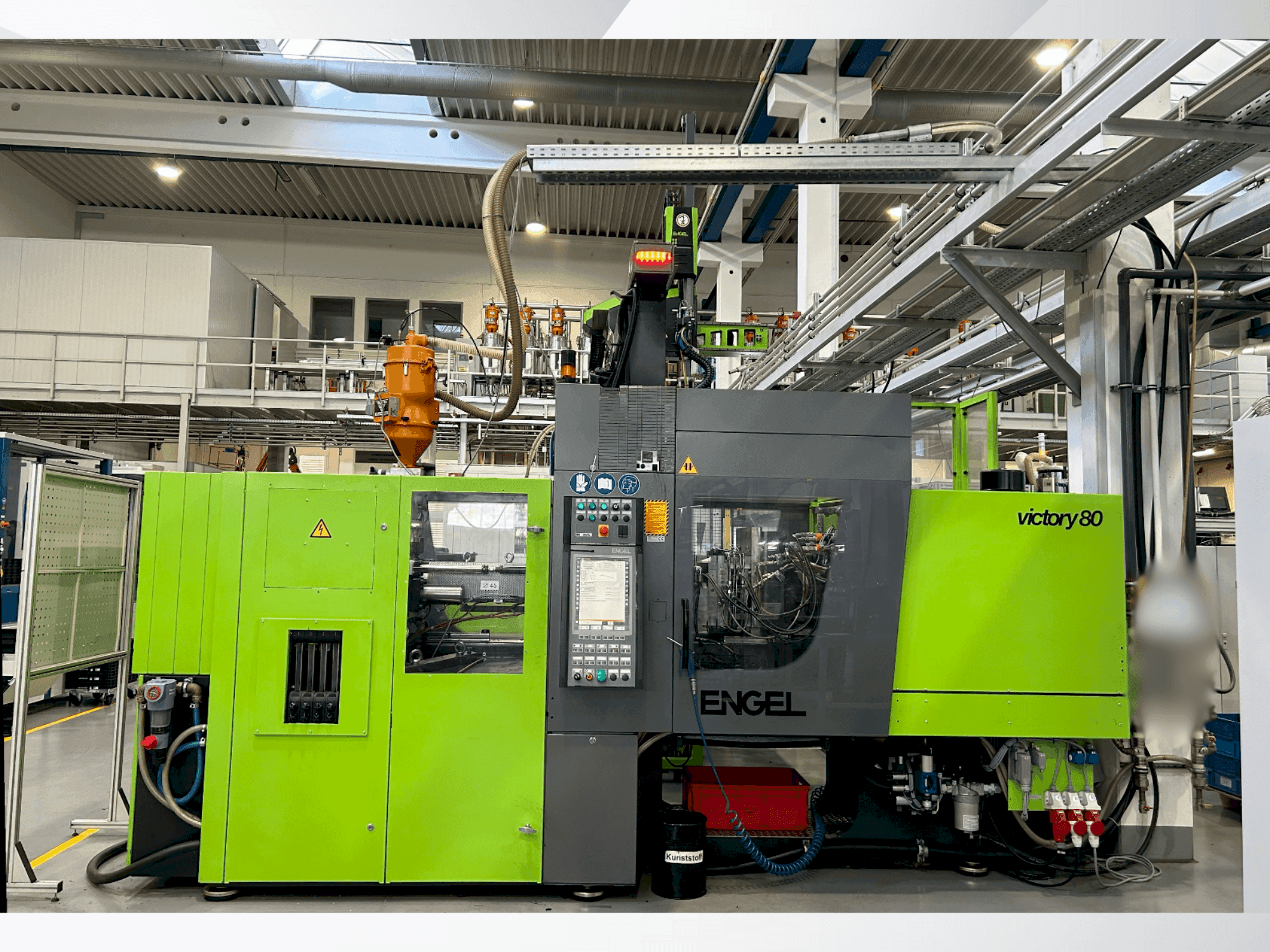

Front view of Engel VICTORY 500/80 (2011) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel VICTORY 500/80

Photo Gallery

Engel - VICTORY 500/80DE-INJ-ENG-2011-00007

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel VICTORY 500/80 For Sale | gindumac.com

Show in original language

This hydraulic injection moulding machine was manufactured in 2011. It features an 800 kN clamping force and a screw diameter of 45mm, capable of a shot volume of 306ccm. The platen size is 670mmx670mm, and it can handle a mould opening height from 300mm to 900mm. Consider the opportunity to buy this Engel VICTORY 500/80 hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: Engel
year: 2011
MODEL: VICTORY 500/80
production hours: 0
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel VICTORY 500/80

General Data

Machine weight: 5300 KG

Control Unit

Brand: ENGEL
Model: eco victory 500/80

Injection Unit

Screw diameter: 45 mm
Stroke volume: 306 ccm CM³
Injection pressure: Specific max 1598 bar
Screw speed: 162.2ccm/s max

Clamping unit

Clamping force: 800 kN
Opening stroke: 458 mm
Mould height min: 300 mm
Mould height max: 900 mm
Size of mold platens: 670 mm x 670 mm
Ejector stroke: 100 mm
Ejector force for / back: 39.8 kN

Additional equipment

- Core pull DS 1 time AS 2 times

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Quick stroke/opening stroke
- - Distance between bars: tie-bars loose machine
- - Pumpenantriebsleitung / pump drive power 15 kw
- - Handling system is included in the scope of delivery

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
