Engel Victory 650/180 Tech Injection moulding machine

Show in original language

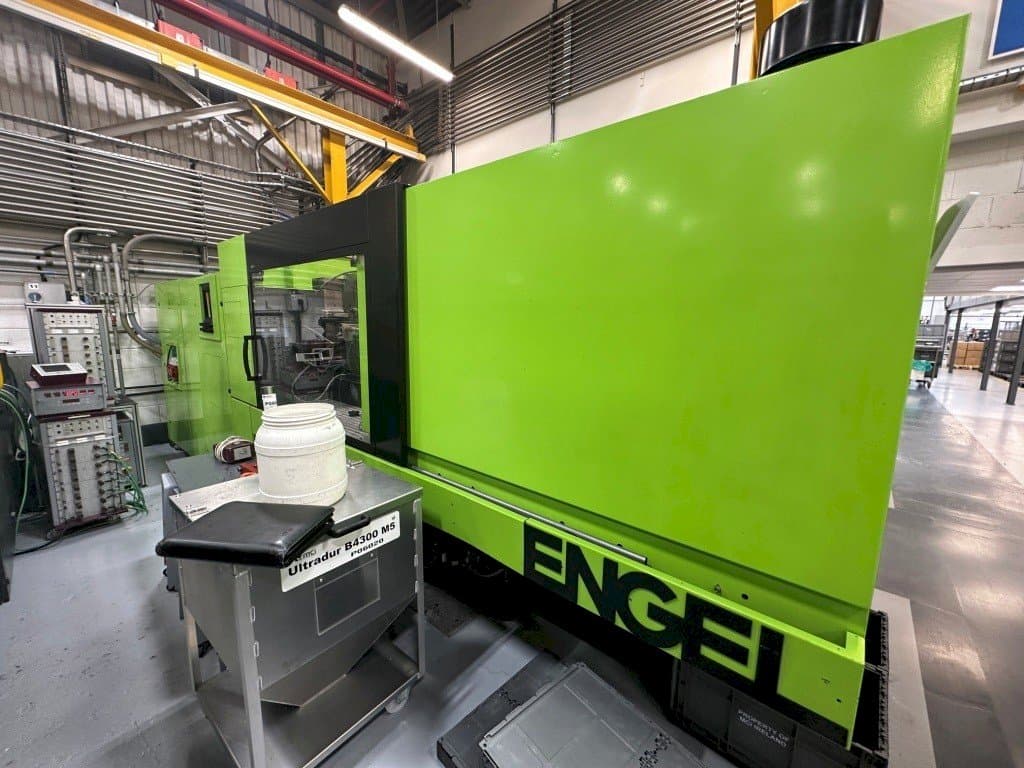

This Engel Victory 650/180 Tech Injection moulding machine was manufactured in the year 2005 in Austria and has 33000 production hours. It is equipped with an Engel control unit. The machine has a clamping force 1800 kN and a screw diameter of 50 mm.

Overview

brand: Engel
year: 2005
MODEL: Victory 650/180 Tech
production hours: 33000
application type: Injection Moulding
Location: Ireland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel Victory 650/180 Tech

General Data

Measurements width: 5100 mm
Measurements depth: 1500 mm
Measurements height: 2100 mm
Machine weight: 8000 kg

Control Unit

CNC main language: English
Brand: ENGEL

Injection Unit

Screw diameter: 50 mm
Shot weight: 186 gr
Stroke volume: 392 cm³
Injection pressure: 1652 bar

Clamping unit

Clamping force: 1800 kN
Opening stroke: 750 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar less machine
- - Platen dimensions are 860 x 830mm
Qualitative Machine Benefits:
- - Excellent condition
- - Well maintained

Extra information

- New Spare 50mm Screw & Barrel available at an additional cost

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
