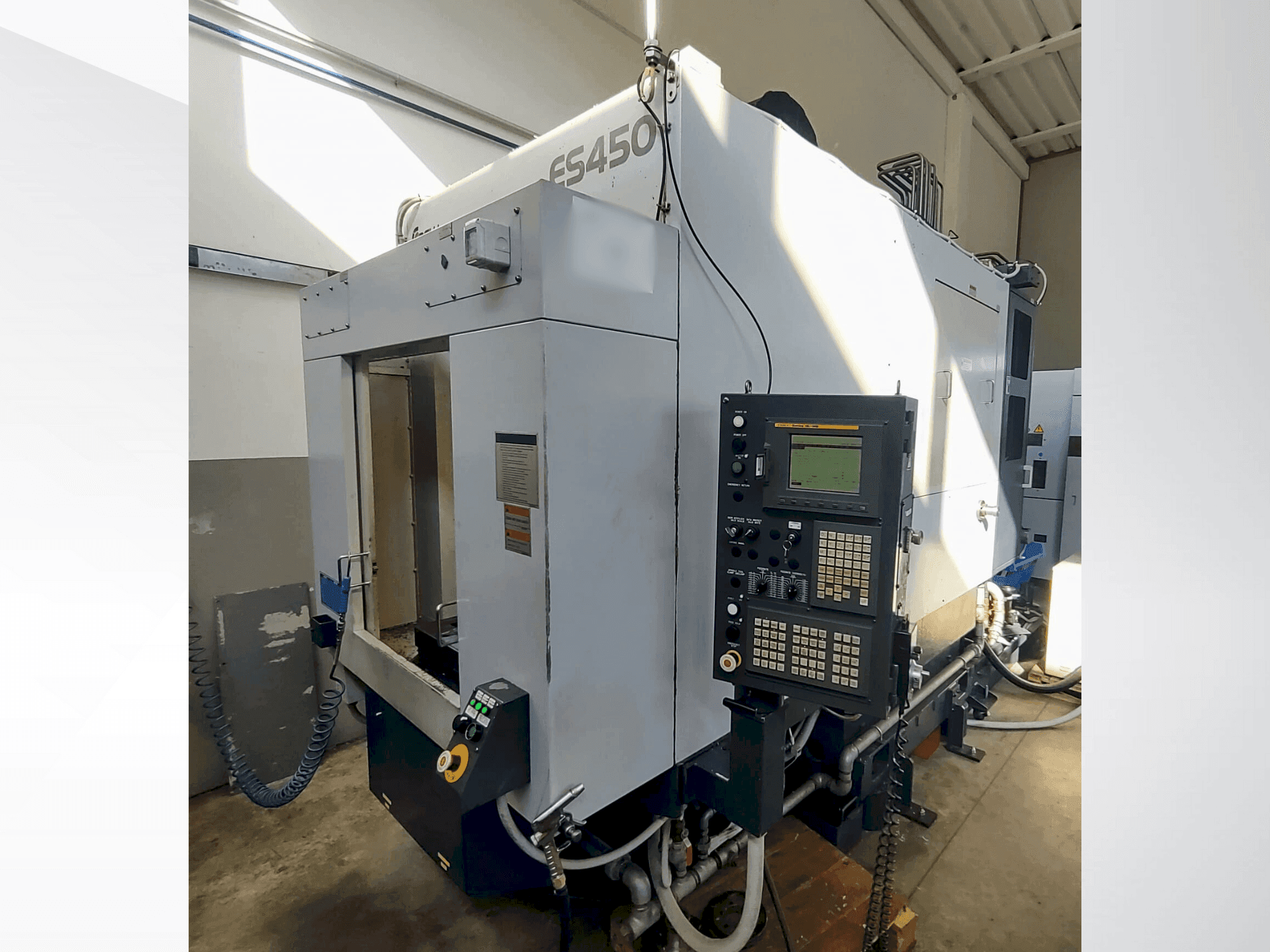

This Enshu ES450 was manufactured in 2004. It features a spindle speed of up to 12,000 min⁻¹, a tool storage capacity of 20, and a rapid traverse feed rate of 60,000 mm/min. The machine accommodates a maximum workpiece weight of 800 kg and offers a cutting feed rate of up to 15,000 mm/min. Consider the opportunity to buy this Enshu ES450 vertical machining centre. Contact us for more information.
Overview
- brand: Enshu
- year: 2004
- MODEL: ES450
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Enshu ES450
General Data
- Measurements width: 3390 MM
- Measurements depth: 1580 MM
- Measurements height: 3138 MM
- Machine weight: 7700 KG
Control Unit
- Brand: FANUC
- Model: 18i-MB
Main drive
- Spindle speed range: 40 - 12000 1/MIN
- Spindle motor power: AC 15 kW / 11 kW / 7.5 kW
Movement
- X-AXIS Movement: 650 MM
- Y-AXIS Movement: 450 MM
- Z-AXIS Movement: 460 MM
Table
- Outer length: 900 mm
- Outer width: 450 mm
- Table load: 800 kg
Tools
- Slots in storage: 20 tools
- Max weight: 8 kg
- Max tool diameter: 90 mm (160 mm without adjacent tool)
- Max tool length: 250 mm
Additional equipment
- - Pallet System (Pallet change method: Rotary type, Pallet change time: 5 sec)
Additional Information
- Technical Machine Benefits:
- - Distance from table top to spindle center: 200–660 mm
- - Table configuration: 12 mm grooves with 16-m12 threads
- - Tapered bore: 7/24 taper no. 40
- - Spindle bearing inner diameter: 65 mm
- - Rapid traverse feed rate: 60000 mm/min
- - Cutting feed rate: 1 – 15000 mm/min
- - Tool shank: mas bt40
- - Pull stud: mas p40t-p
- - Tool selection method: nearest absolute address
- - Tool change time (tool to tool): 2. 11 sec
- Qualitative Machine Benefits:
- - Tool change time (cutting to cutting): 3. 0 sec
- - Feed motors (x/y/z): 3. 8 kw (y: 2 motors)
- - Hydraulic pump motor: 1. 5 kw
- - Lubricant pump motor: 17 w
- - Magazine motor: 0. 9 kw
- - Required electric power: 35 kva
- - Compressed air consumption: 300 l/min (0. 4–0. 8 mpa)
- - Table height from floor: 850 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
