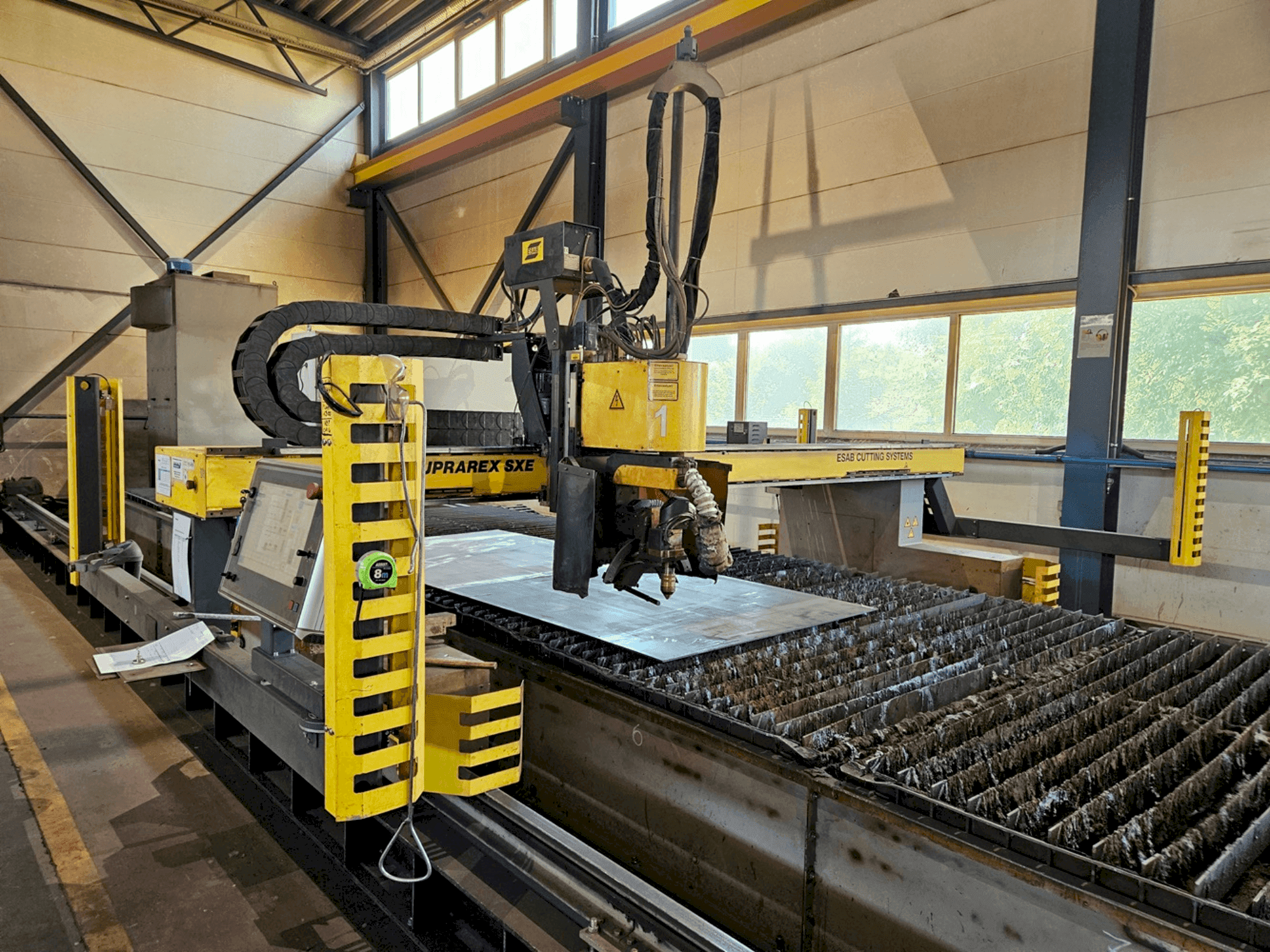

ESAB - Suprarex SXE HD 4000 230 VEE-PLA-ESA-2015-00001

Additional equipment

• - Cutting Speed Carbon Steel:10 mm: 4400 mm/min // 20 mm: 2800 mm/min (new 3000 mm/min) // 30 mm: 1600 mm/min // 40 mm: 925 mm/min (new 1400 mm/min)
• - Cutting Angle: According to ISO 9013: class 3
• - Material Thickness:5 mm min. material thickness // Up to 32 mm max. for a 45 degree cut // Up to 45 mm for a vertical cut // Up to 50 mm when starting from the edge
• - 1 pc portal cutting machine SHD 4000, rail spacing 3500 mm, rail length 13,800 mm
• - 1 pc plasma power source M3 360, cutting capacity 50 mm (black metal with piercing)
• - 1 pc plasma phase cutting head with PT36 plasma torch, fully automatic contour phase cutting with variable angle if necessary
• - Table and filter for dry cutting

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Cutting current: 360 a
  • - Connection voltage: 400 volts 3 phases 50 hz
  • - Remote control: automatic nc control
  • - Plasma torch: pt 36

Extra information

• - machine still under power

Payment Terms

• Payment in advance

• Asset Financing
