Eumach VMC 1100 Vertical Machining center

Show in original language

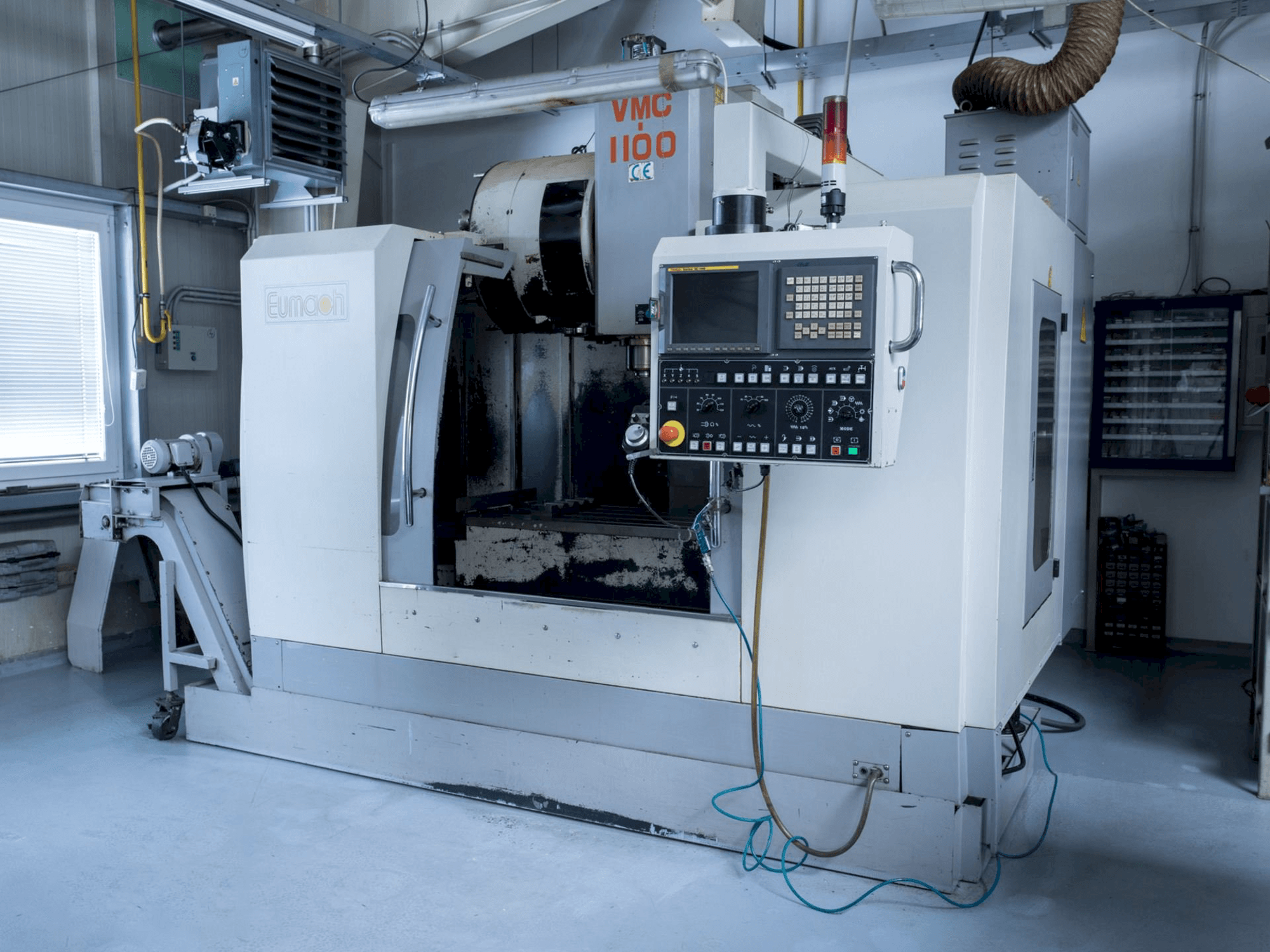

This Eumach VMC 1100 Vertical Machining center was made in Taiwan in the year 2006. It has been power on for 13433 hours of which 10897 are spindle hours. It is equipped with a Fanuc Series 18i-MB control unit. This 4 axis machine has a table of dimensions 1270 x 640 mm. It includes a through and outer spindle coolant by fluid or air. Machine in very good condition.

Overview

brand: Eumach
year: 2006
MODEL: VMC 1100
production hours: 10897
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Eumach VMC 1100

General Data

Machine weight: 6500 KG

Control Unit

Model: Series 18i-MB
Brand: FANUC

Main drive

Number of spindles: 1
Number of axis: 4

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 300 KG

Table

Outer length: 1270 mm
Outer width: 640 mm

Tools

Slots in storage: 24
Type of tool holder: ISO 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Includes machine manual
Very good condition
Low hours

Technical Machine Benefits

Simultaneous axis operation
4th axis table incl. Tailstock
20 bar high pressure cooling
Min. -max. Height under spindle: 102 - 610 mm
3-jaw universal chuck: 250 mm
Through spindle coolant by fluid or air
Outer spindle coolant by fluid or air

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
