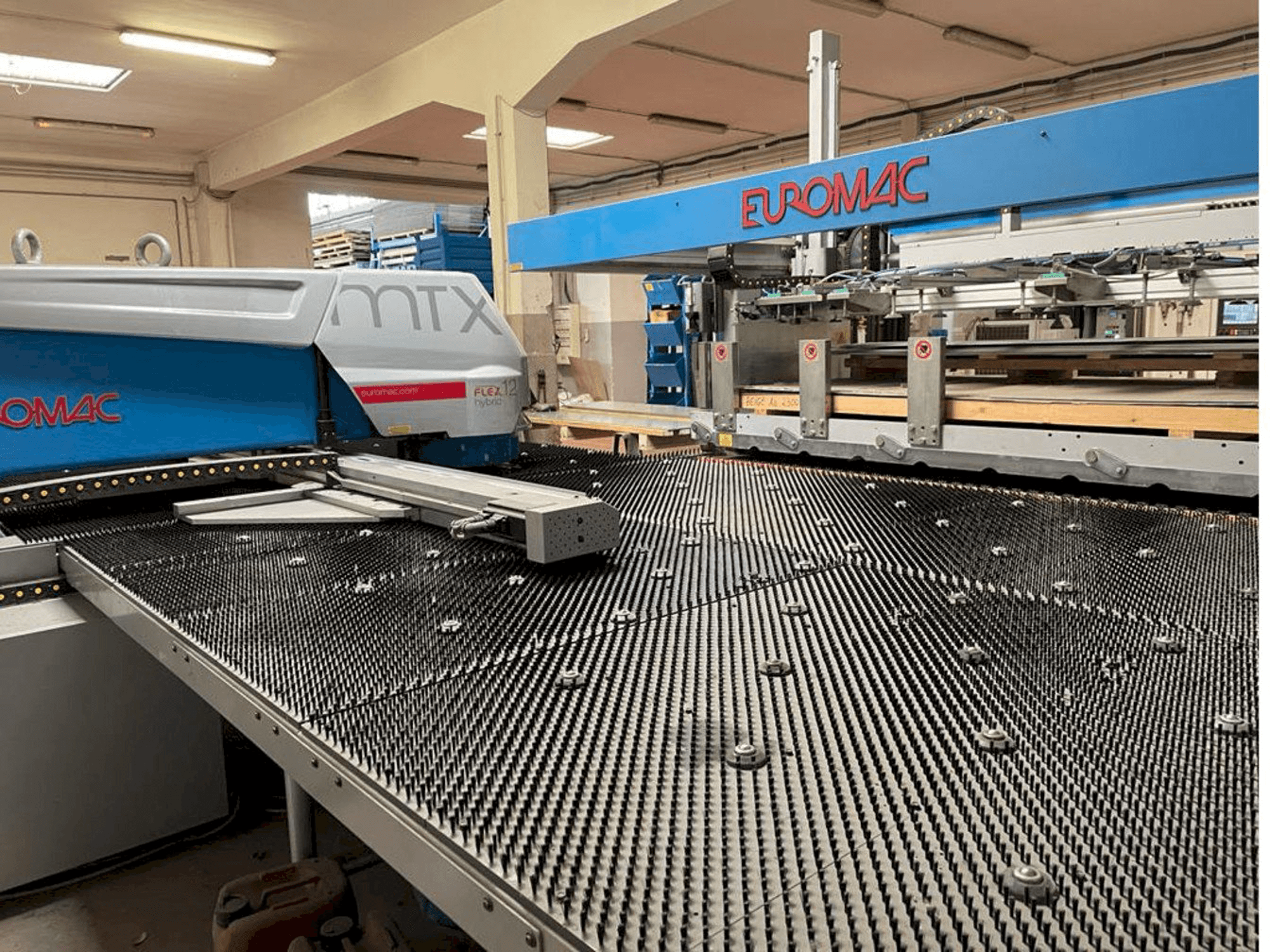

Front view of Euromac MTX Flex 12 Hybrid machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Euromac MTX Flex 12 Hybrid

Photo Gallery

Euromac - MTX Flex 12 HybridIT-PUN-EUR-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Euromac MTX Flex 12 Hybrid - Punching Machine

Show in original language

This Euromac MTX Flex 12 Hybrid Punching machine was manufactured in the year 2014 in Italy and has 6200 hours. It is controlled by a Euromac control unit. The machine has a punching force of 300 kN, and several tools are included as additional equipment. The machine comes with sheets loading and unloading system included in the price.

Overview

brand: Euromac
year: 2014
MODEL: MTX Flex 12 Hybrid
production hours: 6200
application type: Punching
Location: Italy
machine type: Turret Punch Press

Technical Information - Euromac MTX Flex 12 Hybrid

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Additional Information

Additional equipment

Several tools included
The machine comes with sheets loading and unloading system included in the price

Machine Benefits

Qualitative Machine Benefits

Nibbling with 1 mm pitch: 1000
Marking: 2000 thickness range (mm): 0. 6 - 6
Max. Sheet metal weight at reduced axle speed (kg): 150
Usb port: 6
Installed power (kw): 8. 5
Average consumption (kw/h): 4. 5

Technical Machine Benefits

Y axis with multitool /monopunch (mm) y = 1250
Automatic repositioning in x (mm) up to 10000
Numerically control stroke depht (mm) from 0. 1 to 31
Hydraulic servomotor controlled system standard
Position accuracy (mm) +/- 0. 05
Precision in forming repeatability (mm) +/- 0. 1
Bidirectional autoindex stations: 3
Opening of clamps (mm): 11
Automatic positioning clamps: 2
Punching with 20 mm pitch: 375

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
