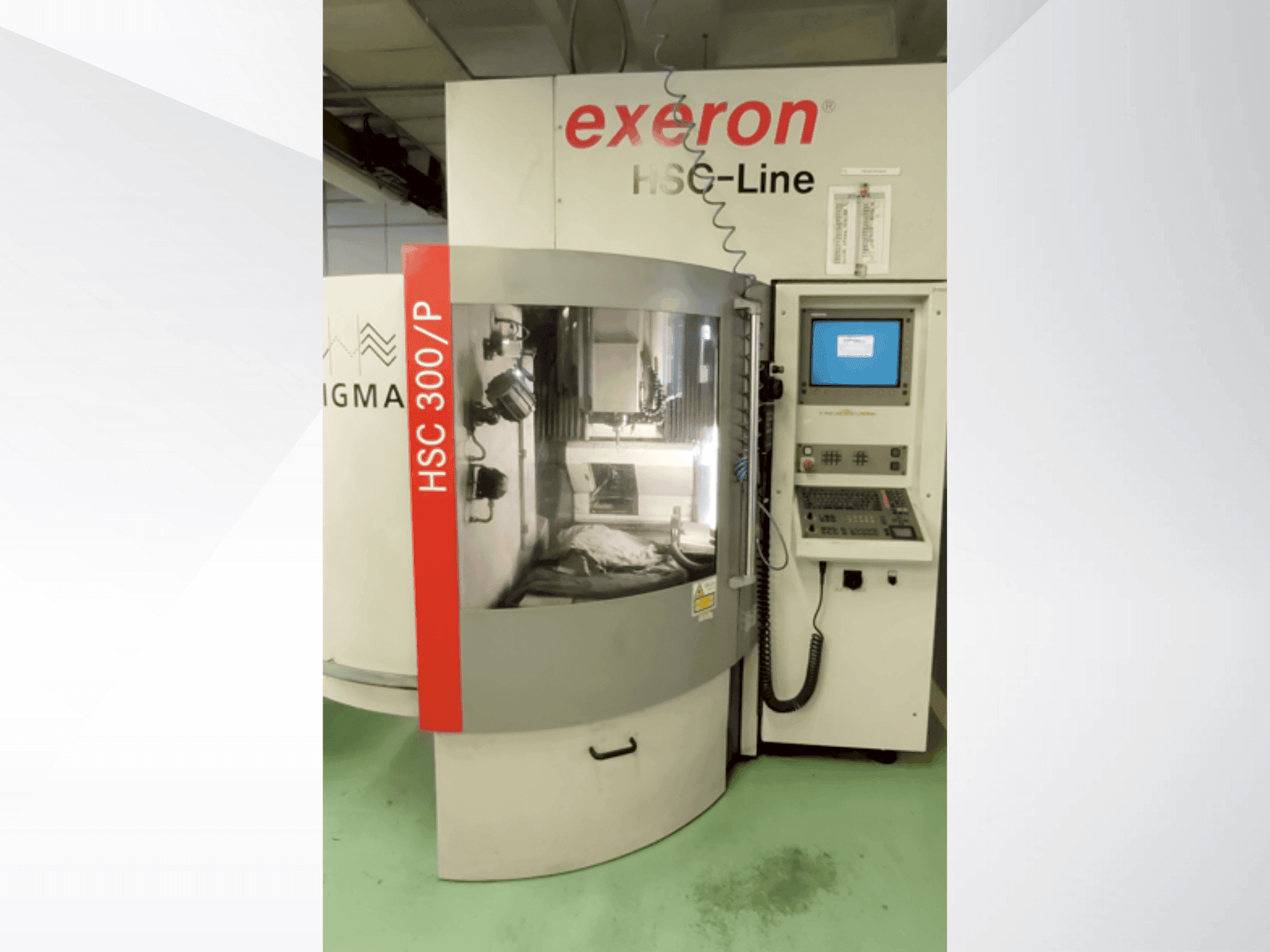

Front view of EXTRON Digma HSC 300/P machine
Front view of EXTRON Digma HSC 300/P machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

EXTRON - Digma HSC 300/PCZ-MIL-EXT-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This EXERON Digma HSC 300/P 3-axis Vertical Machining Centre was manufactured in 2006 in Germany. It is equipped with a Heidenhain iTNC530 control unit and a 42000 rpm spindle. In addition to its 3 axes (X = 480 mm, Y = 340 mm, Z = 355 mm) it has a table size of 470 x 400 mm and 40 tool slots. In 2018 a new spindle has been installed. Furthermore it stands out to be used for graphite machining.

Overview

  • brand: EXTRON
  • year: 2006
  • MODEL: Digma HSC 300/P
  • application type: Milling
  • Location: Czech Republic
  • machine type: Universal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - EXTRON Digma HSC 300/P

General Data

  • Machine weight: 3200 kg

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 42000 1/MIN

Movement

  • X-AXIS Movement: 300 MM
  • Y-AXIS Movement: 300 MM
  • Z-AXIS Movement: 300 MM

Tools

  • Slots in storage: 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance table / spindle nose 495 mm
      • - Spinlde motor power 10/13 kw (s1 / s6 -40 %)
      • - Feedrates x/y/z 30m/min
    • Qualitative Machine Benefits:
      • - 2018 - new spindle installed
      • - Version for graphite machining

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
