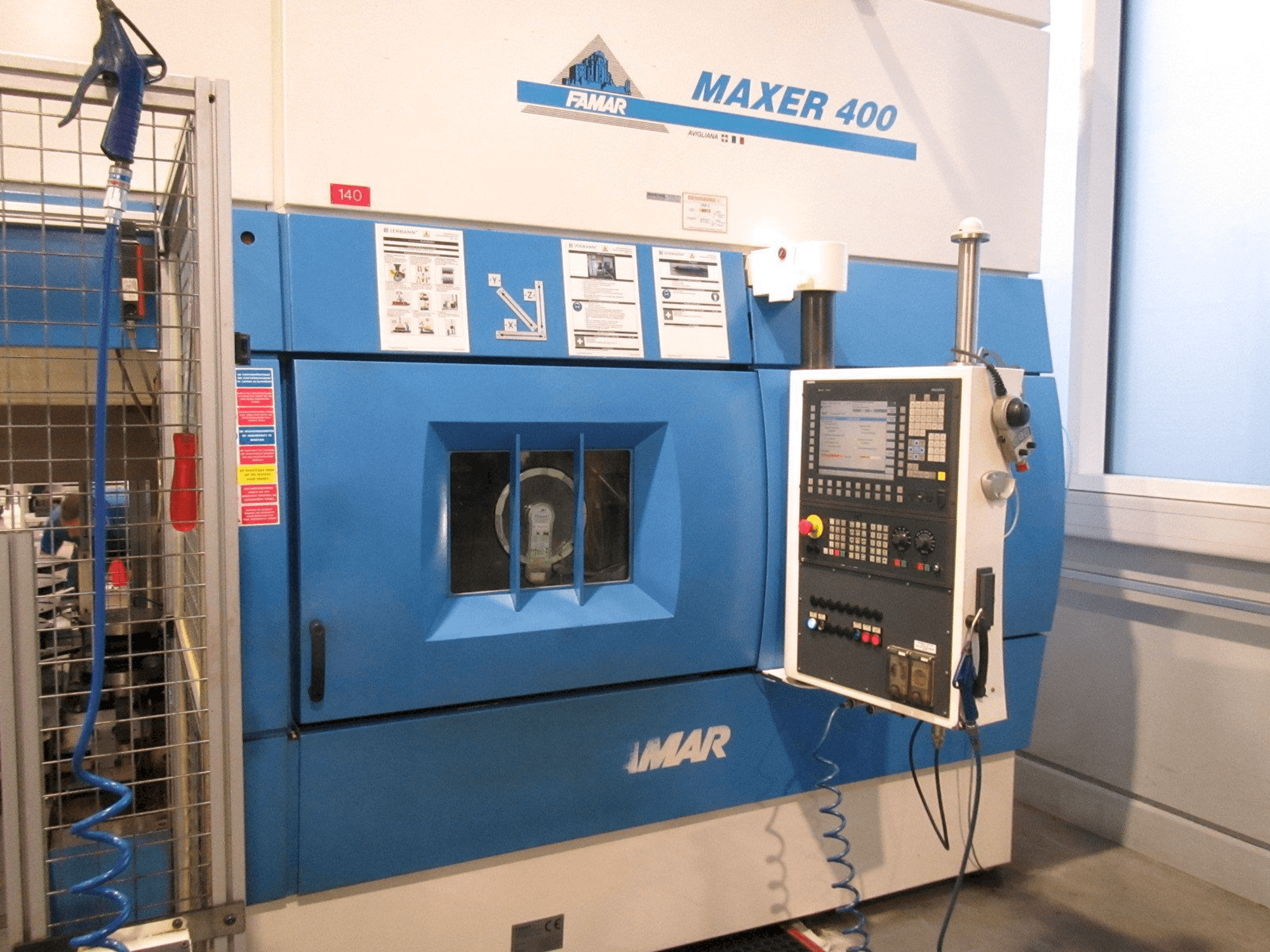

Famar Maxer 400 Vertical Machining Center

Show in original language

This Famar Maxer 400 Vertical Machining Center was manufactured in Switzerland in the year 2006. This 3 axis machine operates through a Siemens 840 D control unit and has been working for 76497 hours. It incorporates a spindle speed up to 5500 rpm and a spindle power of 50 kW.

Overview

brand: Famar
year: 2006
MODEL: Maxer 400
production hours: 76497
application type: Milling
Location: Switzerland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Famar Maxer 400

General Data

Machine weight: 16000 KG

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 5500 1/MIN
Spindle motor power: 50 kW
Tool taper: HSK 63

Movement

X-AXIS Movement: 375 MM
Y-AXIS Movement: 330 MM

Turret

Number of turrets: 12

Tools

Number of index: 32
Max tool diameter: 170 mm
Max tool length: 200 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 70 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle - overhauled, revised, new bearings (2022)
- - New z axis 2020
- - Main spindle hours 100 / milling spindle 1000h.
- - Milling spindle overhauled, revised, new bearings (2018)
- - Spindle nose 8
- - Maximun torque 500 nm
- - Max swing diameter 400 mm
- - Standard chuck 315
- - X axis speed 60 m/min
- - Z axis speed 45 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
