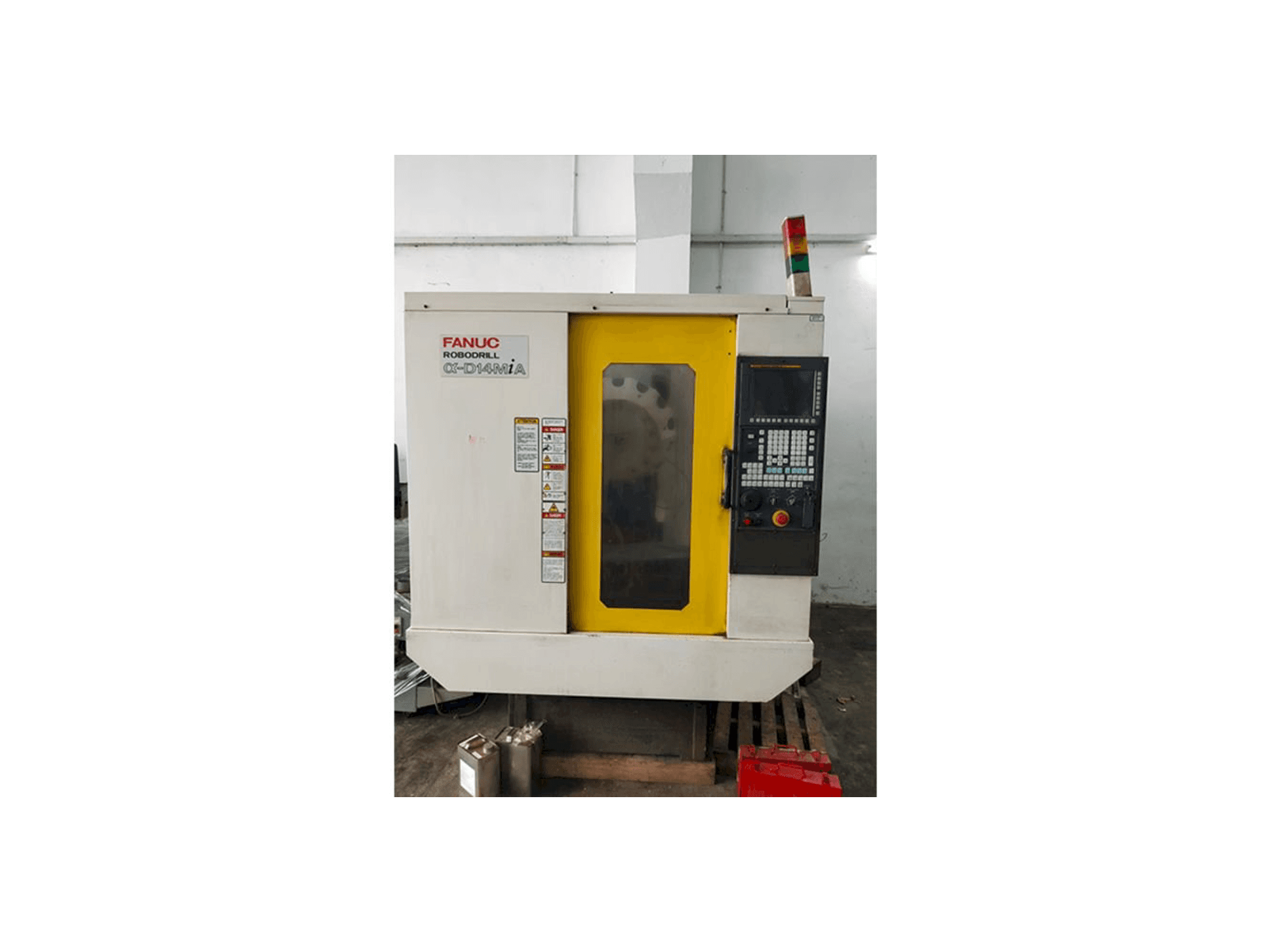

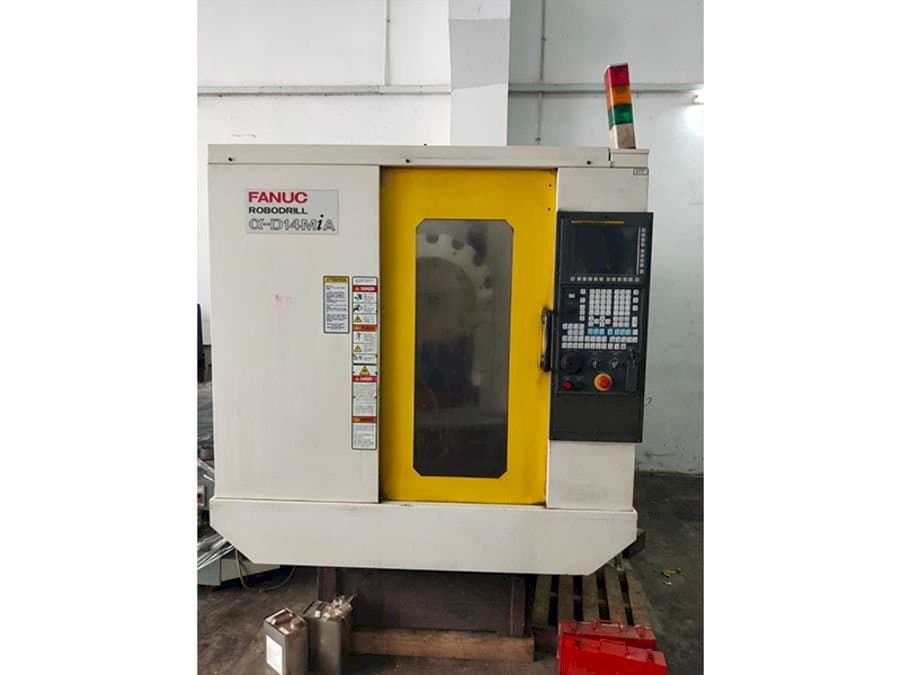

Front view of FANUC Alpha-D14MiA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Alpha-D14MiA

Photo Gallery

FANUC - Alpha-D14MiAIN-MIL-FAN-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC Alpha-D14MiA Machining Center

Show in original language

This FANUC Alpha-D14MiA Machining Center was built in Japan in the year 2015. It is equipped with a control unit of the same brand. This machine can perform with a spindle speed up to 10000 rpm.

Overview

brand: FANUC
year: 2015
MODEL: Alpha-D14MiA
production hours: 40054
application type: Milling
Location: India
machine type: Universal Machining Centre
control unit brand: FANUC

Technical Information - FANUC Alpha-D14MiA

General Data

Measurements width: 2236 mm
Measurements depth: 1565 mm
Measurements height: 2040 mm
Machine weight: 2000 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 3.7/5.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 300 mm

Tools

Type of tool holder: BT 30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 14 tool atc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
