FANUC M-16IB

Photo Gallery

FANUC - M-16IBES-ROB-FAN-2005-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

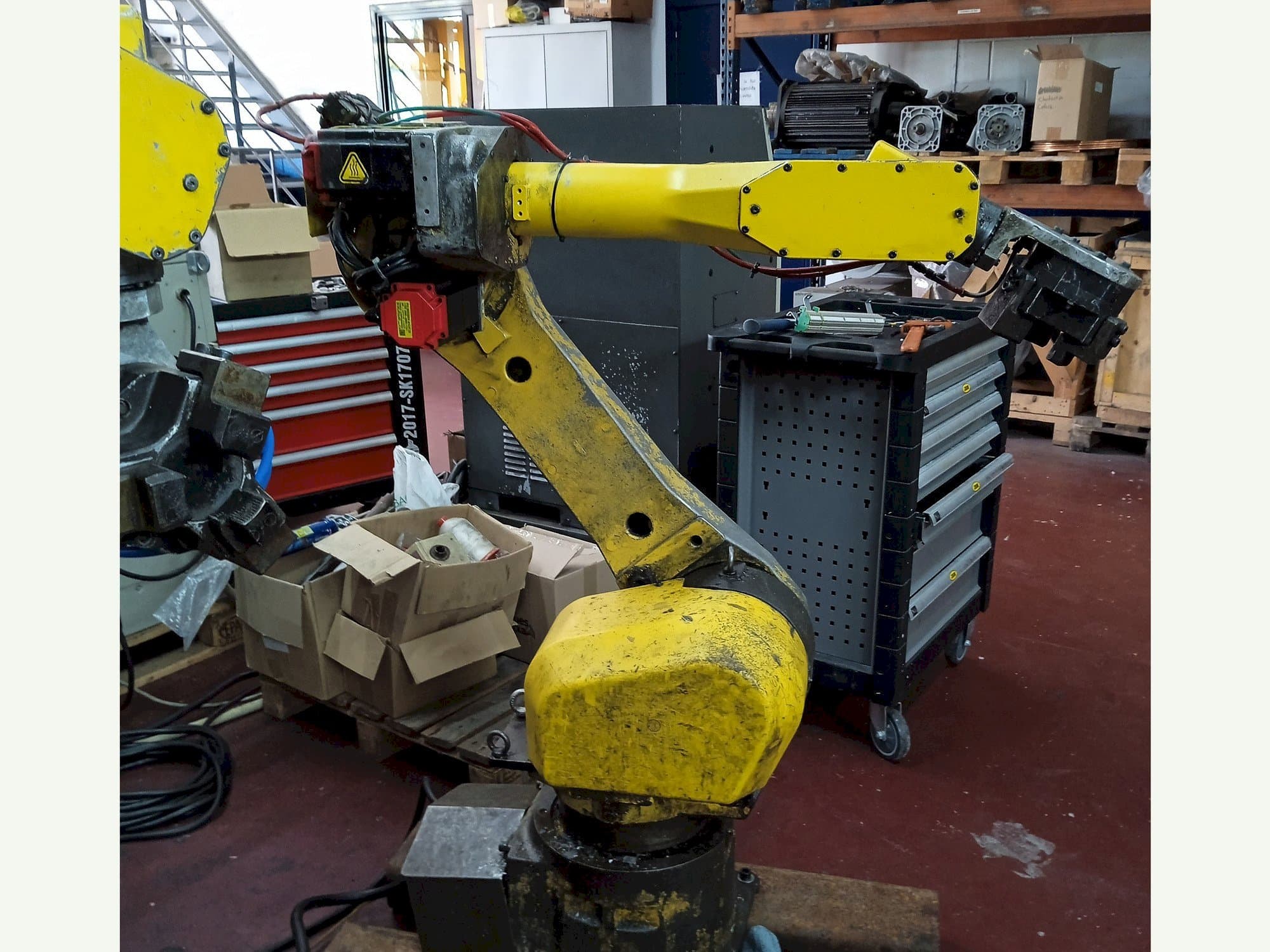

This FANUC M-16IB Robot was made in the year 2005 in Japan. It is controlled by Fanuc System R-J3iB and has 6 axis. The robot has a maximum payload of 20 kg and a maximum reach of 1667 mm. 2 units are available.

Overview

brand: FANUC
year: 2005
MODEL: M-16IB
production hours: 0
application type: Robotics
Location: Spain
machine type: Robot Arm
control unit brand: FANUC

Technical Information - FANUC M-16IB

Control Unit

Model: System R-J3iB
Brand: FANUC

Main drive

Number of axis: 6
Max payload: 20 kg
Max reach: 1667 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis 1 movement +-170
- - Axis 2 movement +160 -90
- - Axis 3 movement +290, -170
- - Axis 4 movement +-200
- - Axis 5 movement +-140
- - Axis 6 movement +-450

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
