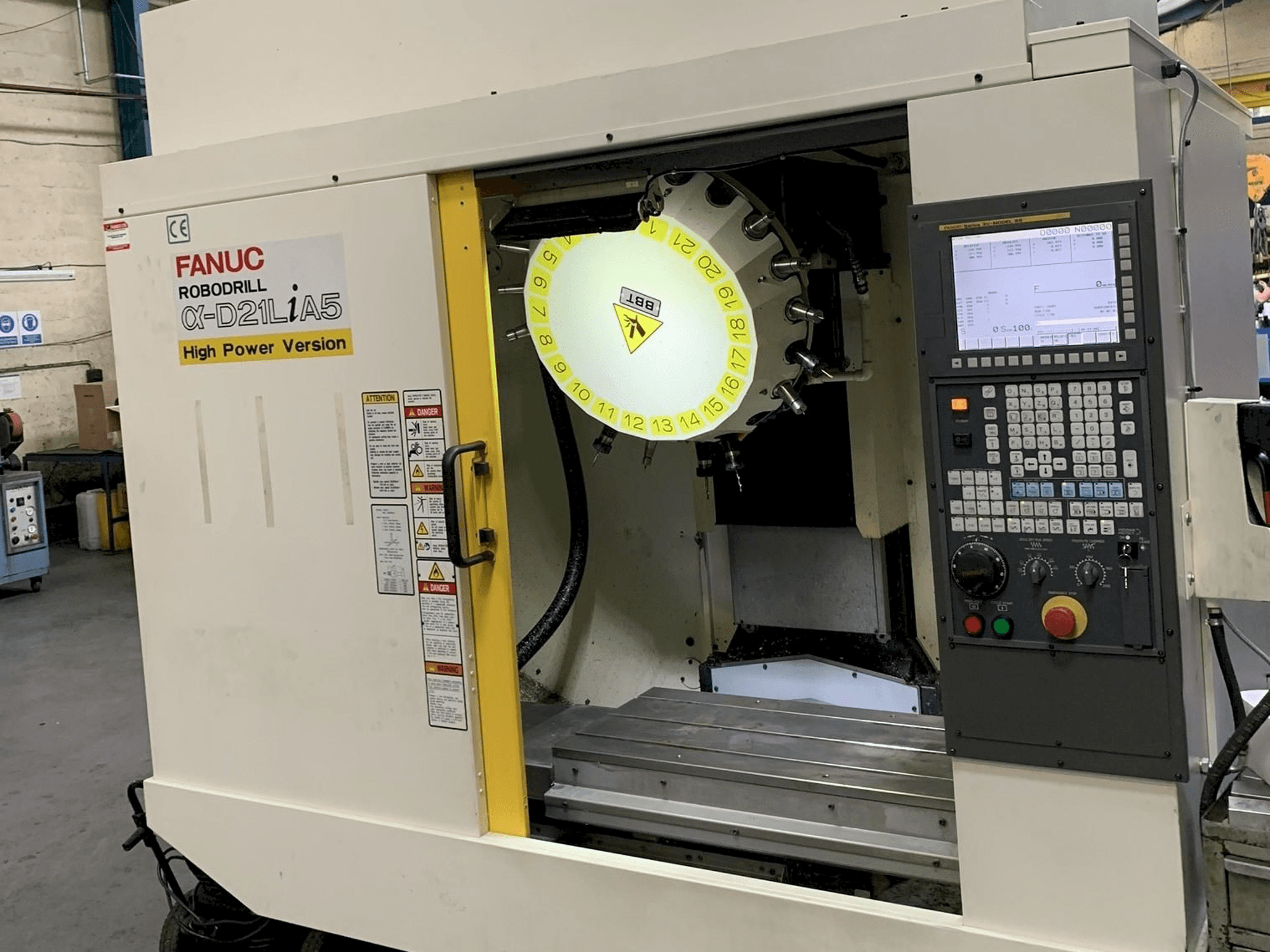

Front view of FANUC Robodrill Alpha D21LiA5 machine
Front view of FANUC Robodrill Alpha D21LiA5 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

FANUC - Robodrill Alpha D21LiA5GB-MIL-FAN-2016-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This FANUC Robodrill Alpha D21LiA5 Vertical Machining Center was manufactured in Japan in the year 2016. It has been working for only 1300 hours. This machine is equipped with a FANUC 31i Control unit and operates with a spindle speed up to 24000 rpm.

Overview

  • brand: FANUC
  • year: 2016
  • MODEL: Robodrill Alpha D21LiA5
  • production hours: 1300
  • application type: Milling
  • Location: United Kingdom
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha D21LiA5

General Data

  • Measurements width: 2115 mm
  • Measurements depth: 1900 mm
  • Measurements height: 2182 mm

Control Unit

  • Model: 31l
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 24000 1/MIN
  • Spindle motor power: 26 kW

Movement

  • X-AXIS Movement: 700 mm
  • X-AXIS Working Feed: 30 m/min
  • X-AXIS Rapid traverse: 54 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Working Feed: 30 m/min
  • Y-AXIS Rapid traverse: 54 m/min
  • Z-AXIS Movement: 330 mm
  • Z-AXIS Working Feed: 30 m/min
  • Z-AXIS Rapid traverse: 54 m/min

Workpiece

  • Workpiece weight: 300 kg

Table

  • Outer length: 850 mm
  • Outer width: 410 mm
  • Min distance between vertical spindle and table: 250 mm
  • Max distance between vertical spindle and table: 580 mm

Tools

  • Slots in storage: 21
  • Max tool diameter: 40 mm
  • Max tool length: 200 mm
  • Type of tool holder: BT30

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Qualitative Machine Benefits:
      • - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
