➤ Used FANUC ROBODRILL Alpha D21LiB5 - Vertical Machining Center

Show in original language

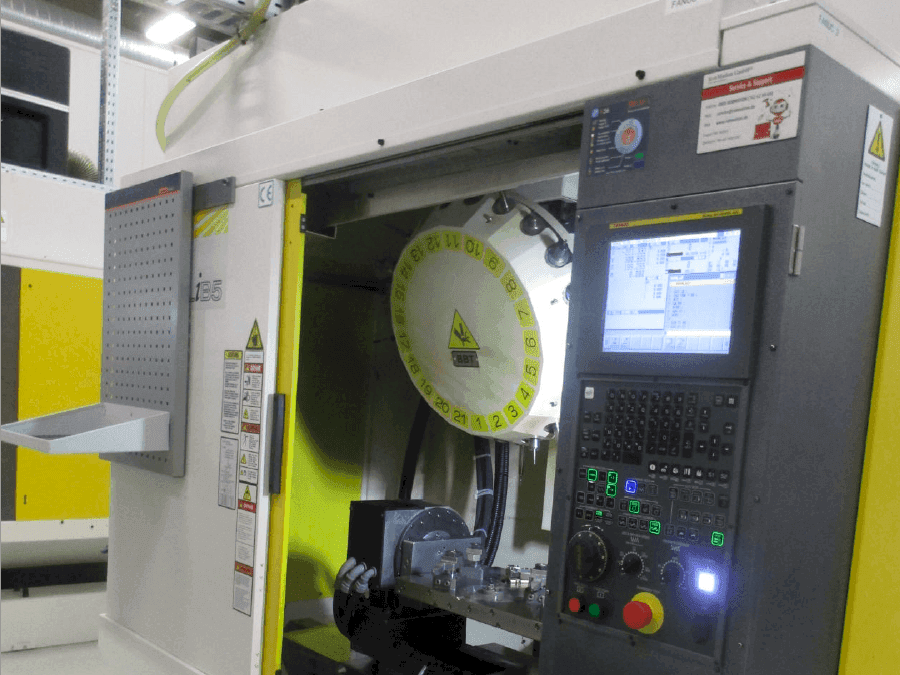

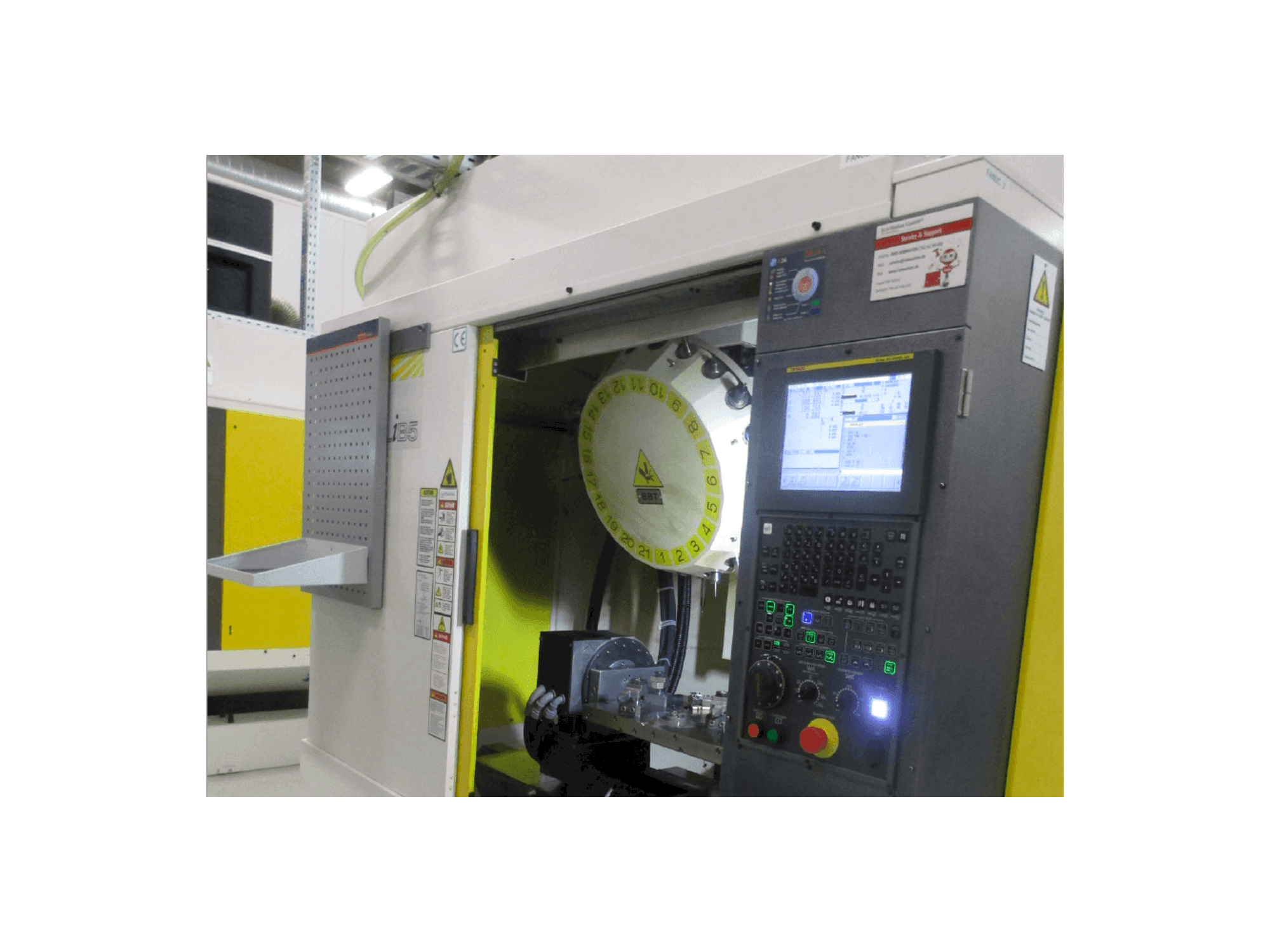

This FANUC ROBODRILL Alpha D21LiB5 Vertical Machining Center was built in 2015. It has been working for 11147 hours. It is equipped with a FANUC Series 31i-B5 control unit. This 3 axis machine can work with a spindle speed up to 24000 rpm. Machine pictures are not the original ones, but machine is identical in construction. Machine can be visited on site.

Overview

brand: FANUC
year: 2015
MODEL: ROBODRILL Alpha D21LiB5
production hours: 11147
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC ROBODRILL Alpha D21LiB5

Control Unit

Model: Series 31i-B5
Brand: FANUC

Main drive

Spindle speed range: 24000 1/MIN

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 54000 mm/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 54000 mm/min
Z-AXIS Movement: 330 mm
Z-AXIS Rapid traverse: 54000 mm/min

Tools

Type of tool holder: BBT30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Increased torque on the spindle
- - Universal clamping table
- - Oil central lubrication
- - Additional workpiece coordinate system
- - 21 places magazine tools
- - Nano interpolation of the servo axis
- - Thermo compensation (x,y,z axis)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
