FANUC ROBODRILL Alpha D21LiB5 Vertical Machining Center

Show in original language

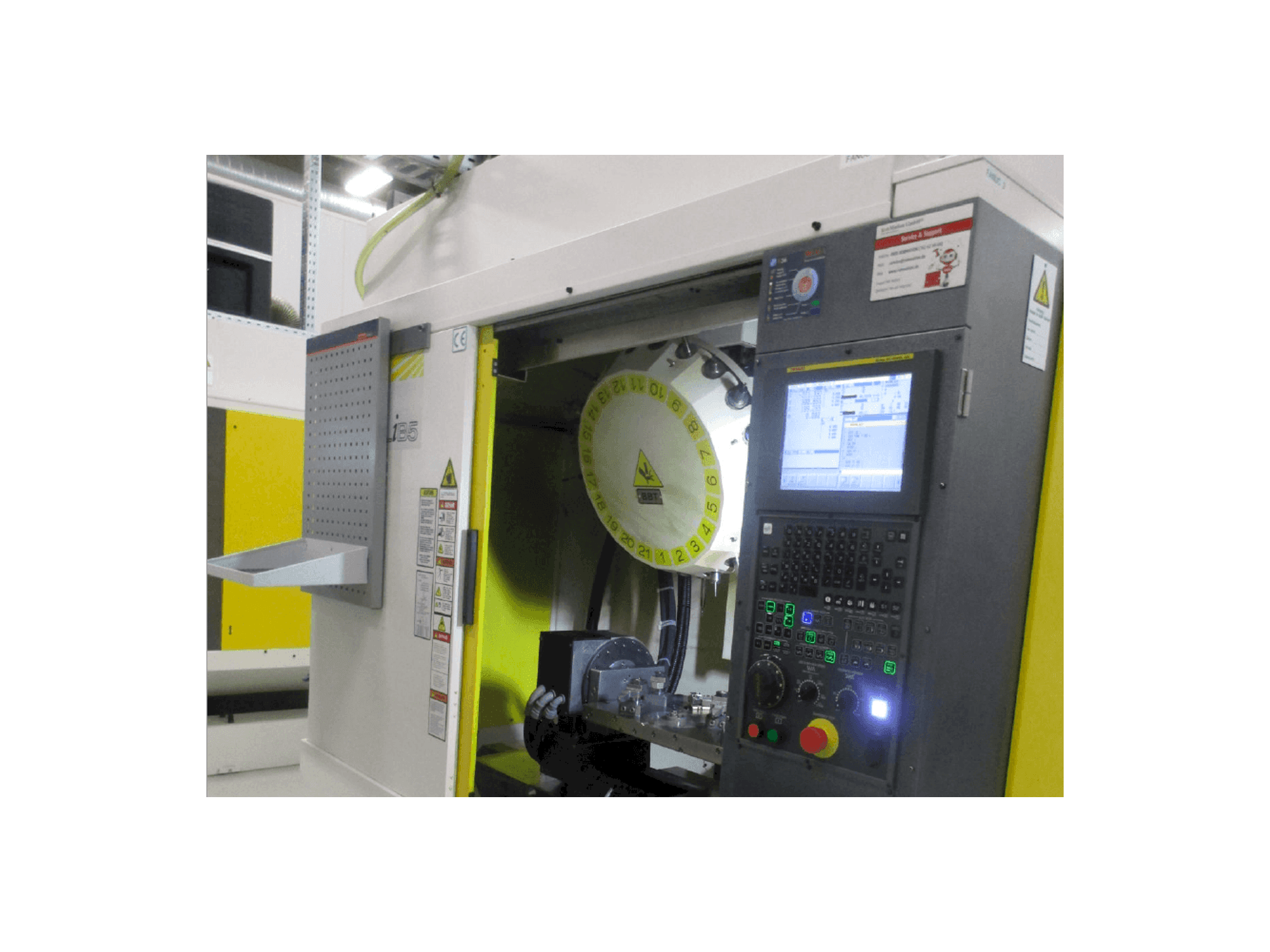

This FANUC ROBODRILL Alpha D21LiB5 Vertical Machining Center was built in 2017. It has a production history of 6479 hours since then. Equipped with a FANUC 31i-B5 Control unit, this 3 axis machine can work with a spindle speed up to 24000 rpm.

Overview

brand: FANUC
year: 2017
MODEL: ROBODRILL Alpha D21LiB5
production hours: 6479
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC ROBODRILL Alpha D21LiB5

Control Unit

Model: 31i-B5
Brand: FANUC

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 54000 mm/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 54000 mm/min
Z-AXIS Movement: 330 mm
Z-AXIS Rapid traverse: 54000 mm/min

Tools

Type of tool holder: BBT30

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Increased torque on the spindle
- - Universal clamping table
- - Oil central lubrication
- - Additional workpiece coordinate system
- - 21 places magazine tools
- - Nano interpolation of the servo axis
- - Thermo compensation (x,y,z axis)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
