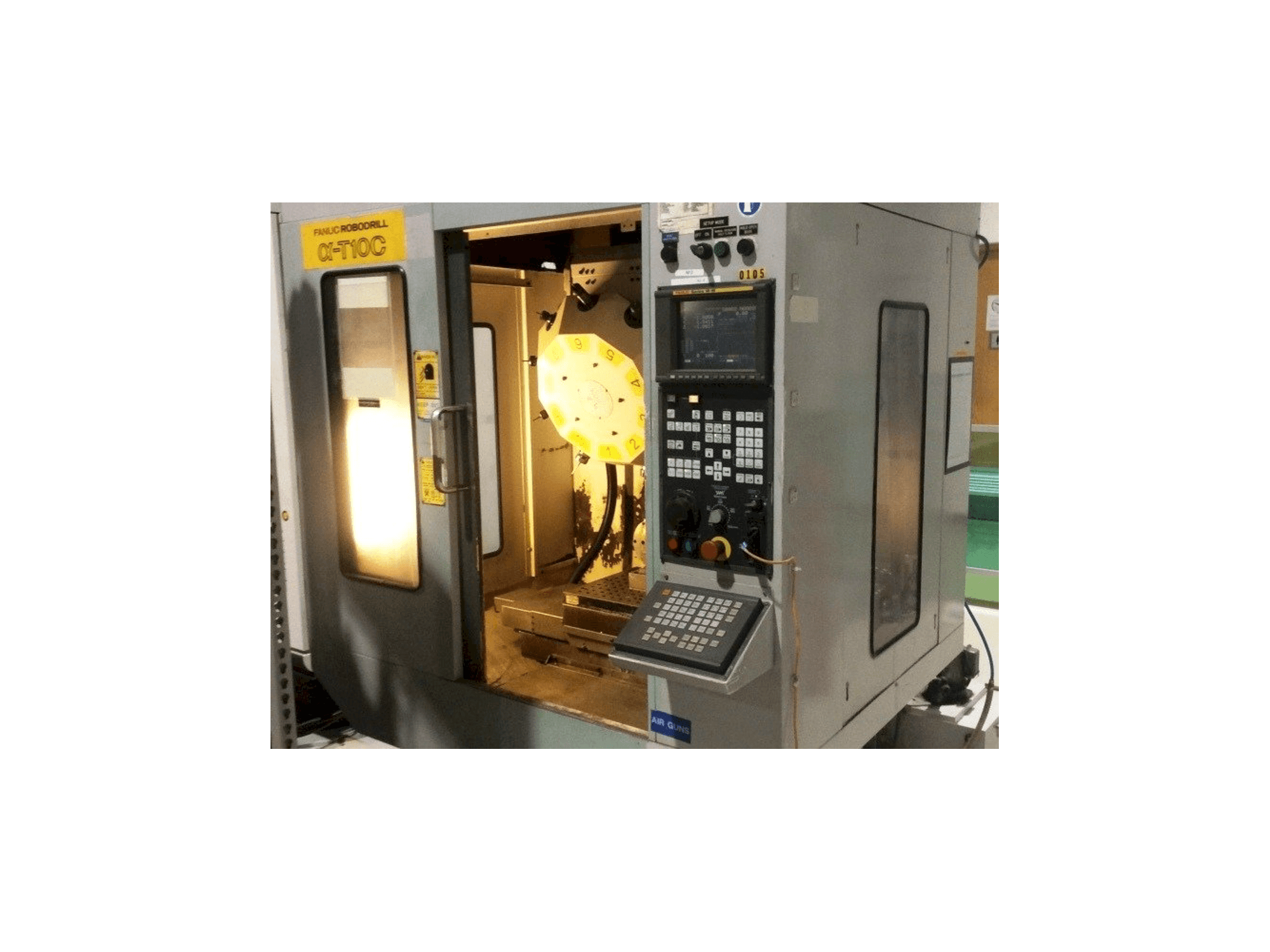

FANUC RoboDrill Q-T10C Vertical Machining Center

Show in original language

This FANUC RoboDrill Q-T10C Vertical Machining Center was built in 1996 in Japan and has a spindle speed range of 8000 rpm. Operated through a Series 16M control unit, this machine includes a coolant equipment, nikkei 4th Axis, transformer and an oil mist filter. It stands out for its excellent chip to chip tool change time.

Overview

brand: FANUC
year: 1996
MODEL: RoboDrill Q-T10C
production hours: 34000
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC RoboDrill Q-T10C

General Data

Measurements width: 2000 mm
Measurements depth: 1550 mm
Measurements height: 2285 mm
Machine weight: 1700 kg

Control Unit

Model: Series 16M
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 380 mm
Z-AXIS Movement: 300 mm

Table

Outer length: 650 mm
Outer width: 380 mm

Tools

Slots in storage: 10
Type of tool holder: ISO 30

Media

Power consumption: 9 kVa

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device

Machine Benefits

Technical Machine Benefits:
- - Excellent chip to chip tool change time
- - Nikken 4th axis included
Qualitative Machine Benefits:
- - Machine annually maintained by fanuc agents

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
