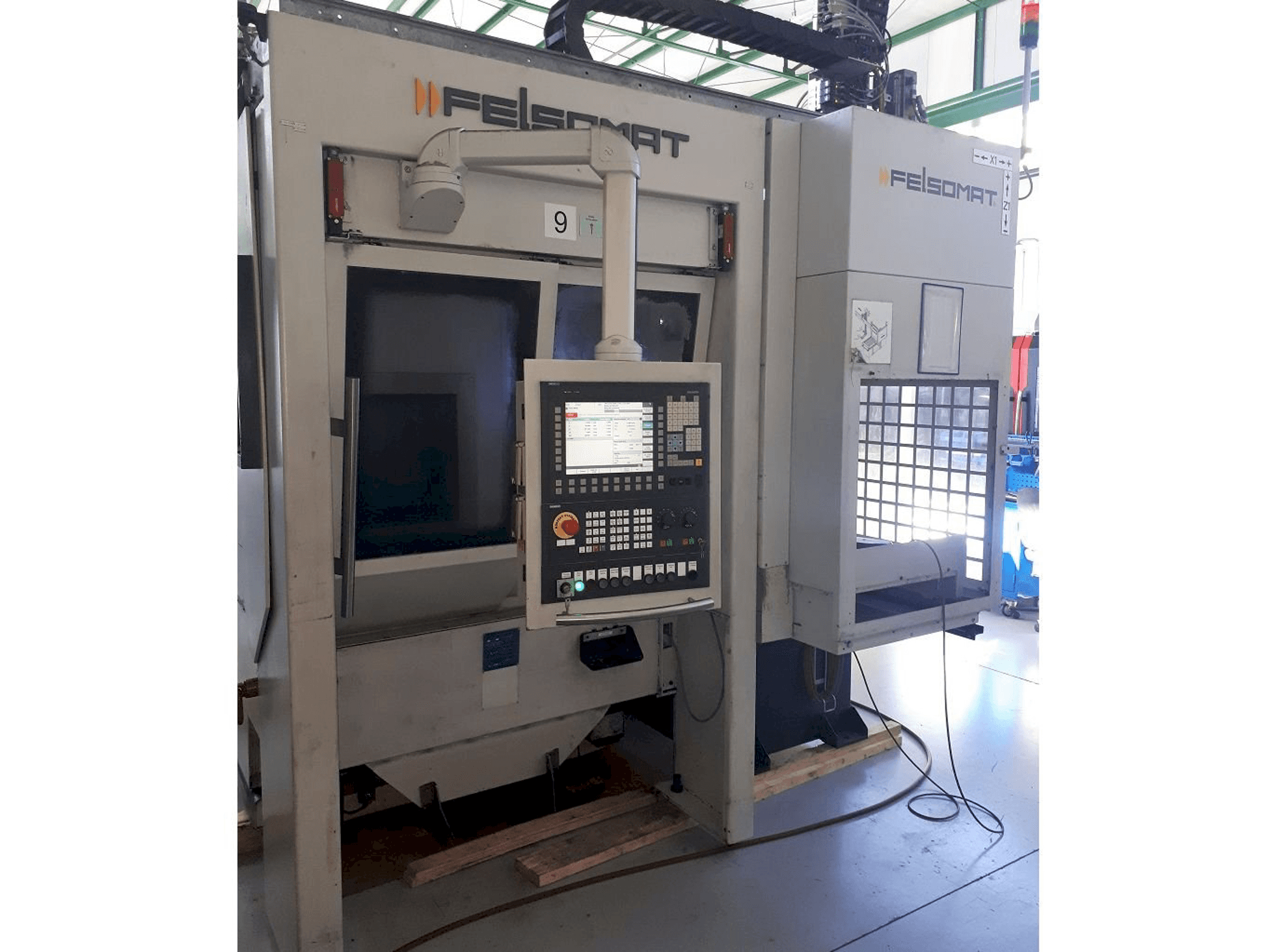

Felsomat FTC 160 Lathe

Show in original language

This Felsomat FTC 160 Lathe was manufactured in the year 2009. It is equipped with a Siemens SINUMERIK 840D sl control unit and has 2 axis. The machine has a spindle speed of 4500 rpm, is in good condition and well maintained.

Overview

brand: Felsomat
year: 2009
MODEL: FTC 160
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Felsomat FTC 160

General Data

Measurements width: 3700 mm
Measurements depth: 1600 mm
Measurements height: 3000 mm
Machine weight: 10000 kg

Control Unit

Model: SINUMERIK 840D sl
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 450 mm
Z-AXIS Movement: 300 mm

Table

Table load: 20 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 8

Media

Power consumption: 65 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 320 mm
- - Maximum cutting diameter 230 mm
- - Spindle bore 52 mm
- - Main motor power 26. 8/20. 9 kw (40/100%)
- - Main motor drive 256/200 nm
- - 22. 4kw spindle motor
- - 315mm 3 jaw chuck
- - X/z 45/40 m/minute rapid feedrates
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
