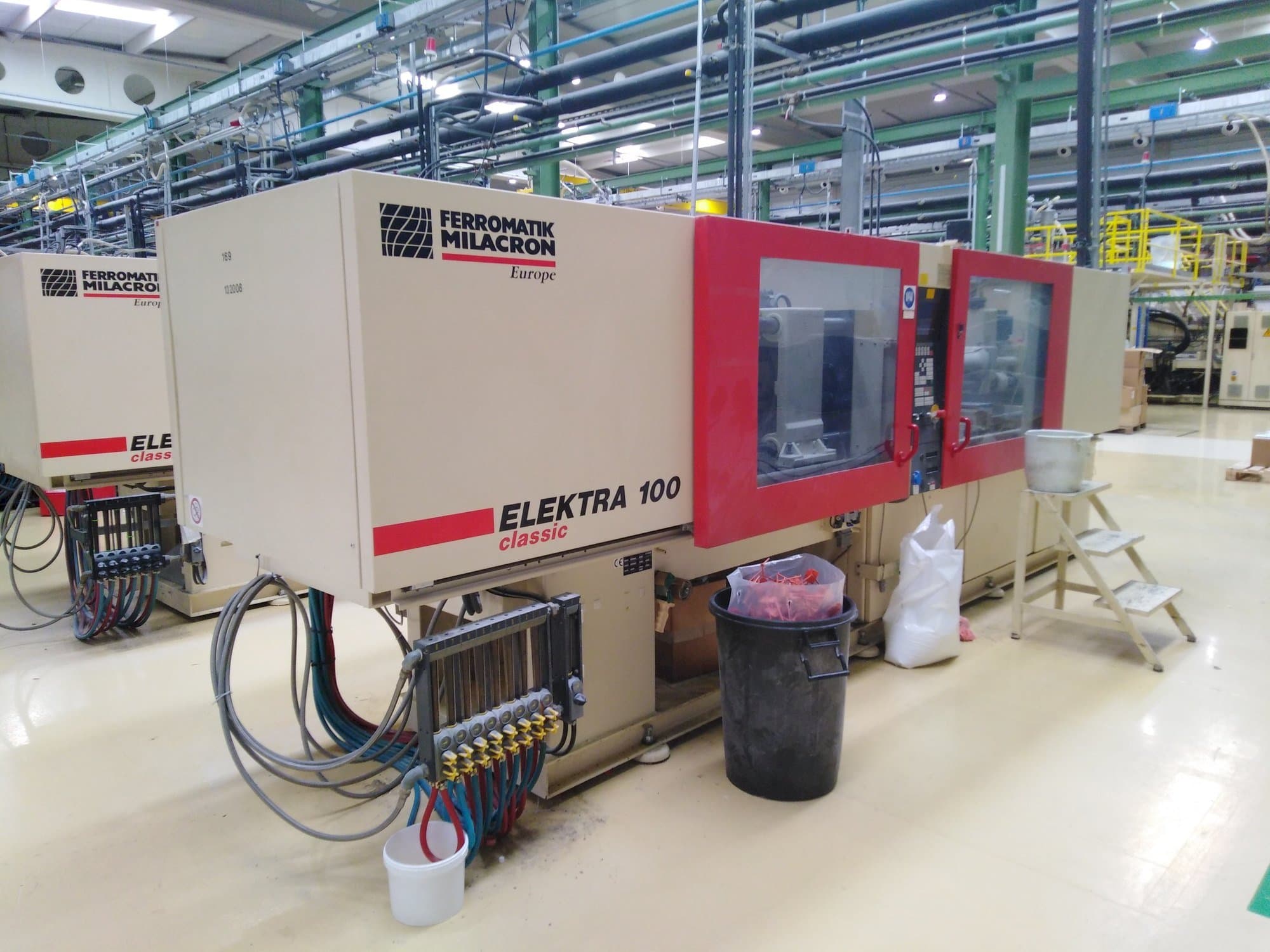

Front view of Ferromatik Electra 100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FERROMATIK Electra 100

Photo Gallery

FERROMATIK - Electra 100ES-INJ-FER-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Ferromarik Electra 100 Injection Moulding Machine

Show in original language

This Ferromarik Electra 100 Injection Moulding Machine was built in Spain in 2002. Operated through a LQT 33/44 Control unit, this machine can work with a clamping force of 1000 kN.

Overview

brand: FERROMATIK
year: 2002
MODEL: Electra 100
production hours: 55000
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine

Technical Information - FERROMATIK Electra 100

General Data

Measurements width: 5800 mm
Measurements depth: 1500 mm
Measurements height: 2140 mm
Machine weight: 6930 kg

Control Unit

Model: 33/44
CNC main language: English
CNC language customizable: Yes

Injection Unit

Screw diameter: 25 mm
Stroke volume: 49 CM³
Injection pressure: 2050 bar
Plasticizing rate max.: 38 g/s PS
Screw speed: 400 rpm
Heating capacity: 38 kW

Clamping unit

Clamping force: 1000 kN
Opening stroke: 400 mm
Distance between bars: 920 mm
Mould height min: 250 mm
Mould height max: 520 mm
Ejector stroke: 150 mm
Ejector force for / back: 73 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
