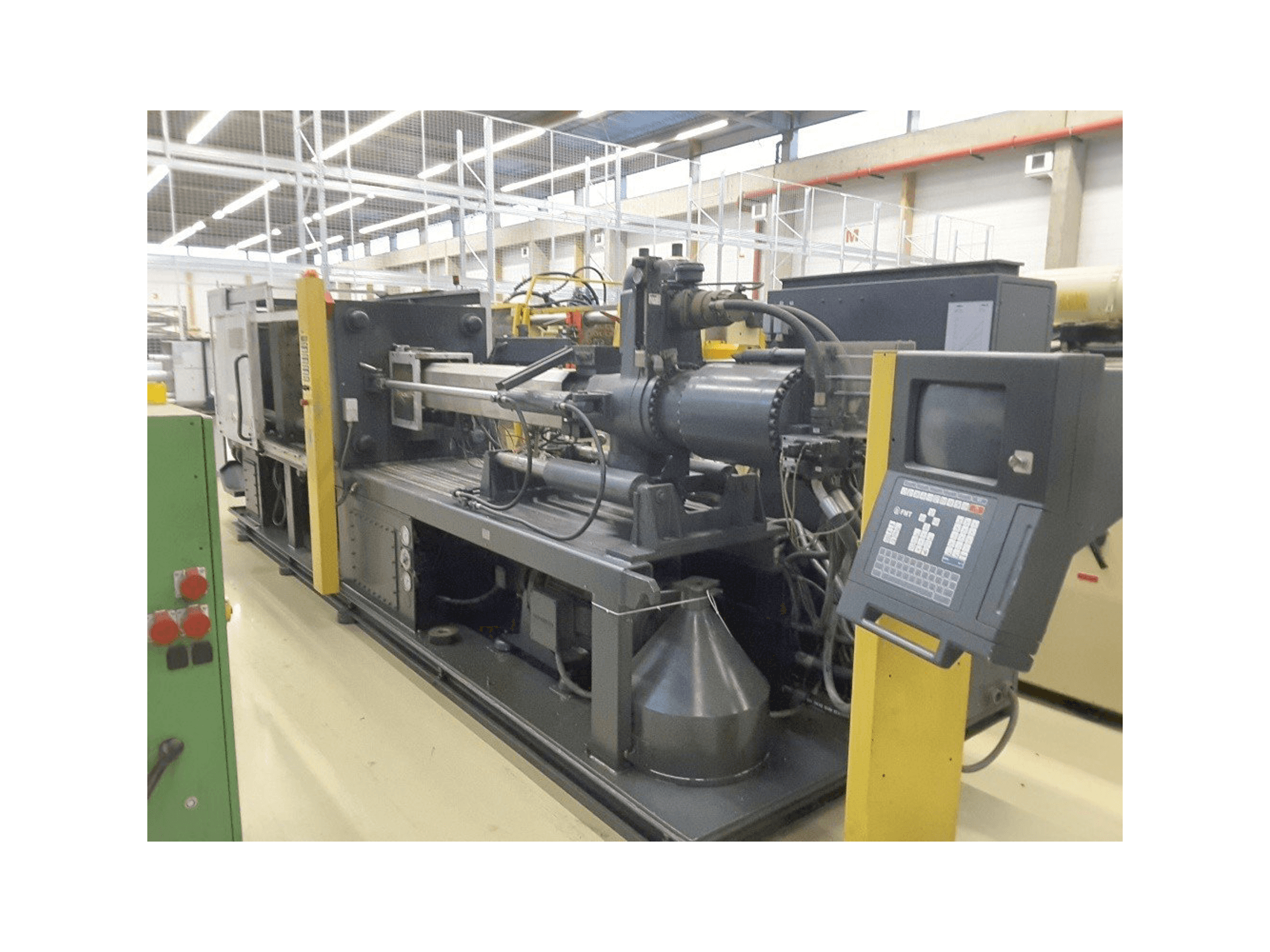

Front view of Ferromatik FM 1480 -275 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FERROMATIK FM 1480 -275

Photo Gallery

FERROMATIK - FM 1480 -275BE-INJ-FER-1994-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Ferromatik FM 1480 -275 Injection Moulding Machine

Show in original language

This Ferromatik FM 1480 -275 Injection Moulding Machine from Belgium was made in 1994 and has been operative for 74000 hours. Operated through a WMT Control unit, this machine can perform with a clamping force of 2750 kN. It incorporates a robot interface, as well as a shut off nozzle and an accumulator.

Overview

brand: FERROMATIK
year: 1994
MODEL: FM 1480 -275
production hours: 74000
application type: Injection Moulding
Location: Belgium
machine type: Hydraulic Injection Moulding Machine

Technical Information - FERROMATIK FM 1480 -275

General Data

Measurements width: 7200 mm
Measurements depth: 1670 mm
Measurements height: 2110 mm
Machine weight: 13000 kg

Injection Unit

Screw diameter: 80 mm
Shot weight: 910 g
Stroke volume: 1055 CM³
Injection pressure: 1410 bar
Plasticizing rate max.: 83,3 g/s
Screw speed: 200 1/min
Nozzle pressure: 115 kN

Clamping unit

Clamping force: 2750 kN
Opening stroke: 750 mm
Max open daylight: 1030 mm
Distance between bars: 630 x 630 mm
Mould height min: 280 mm
Size of mold platens: 970 x 970 mm
Ejector stroke: 240 mm
Ejector force for / back: 85 kN

Media

Pump drive power: 37 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 1 x cores
- - Accumulator
- - Shut off nozzle
- - Robot interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
